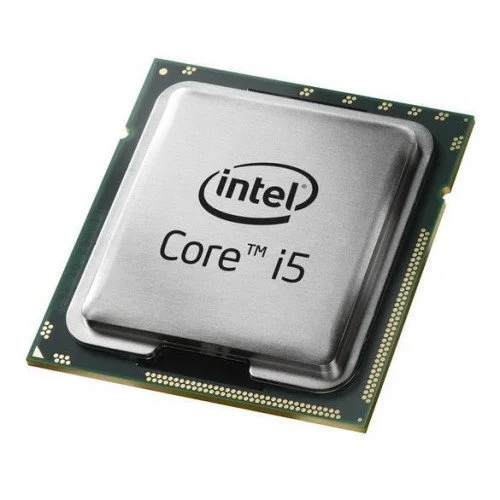

Intel Core i5

Intel Core i5
Нема на залиха
Intel Core i5
  • Processor model: i5-3230M
  • Processor family: Intel® Coreâ„¢ i5
  • Processor cores: 2
  • Processor socket: PGA988
  • On-board graphics card model: Intel® HD Graphics 4000
  • 11,084ден.
    • Достапност: Нема на залиха
    • Бренд: INTEL
    • Шифра: 137969
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    1

    Technical Specifications

    • Summary: Intel Core i5-3230M. Processor family: Intel Core i5, Processor socket: PGA988, Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM. On-board graphics card model: Intel HD Graphics 4000, On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, Serial Digital Video Out (SDVO), CRT, On-board graphics card base frequency: 650 MHz. Market segment: Mobile, PCI Express configurations: 1x16, 2x8, 1x8, 2x4, Supported instruction sets: AVX. Intel Turbo Boost Technology 2.0 frequency: 3.2 GHz
    • Vendor Homepage: https://ark.intel.com/products/72164/
    • Name: CPU CORE I5-3230M S988 OEM 3M/2.6G AW8063801208001S R0WY IN
    • Category Code: CPU
    • Processor manufacturer: Intel
    • Processor generation: 3rd gen Intel Core i5
    • Processor model: i5-3230M
    • Processor base frequency: 2.6
    • Processor family: Intel Core i5
    • Processor cores: 2
    • Processor socket: PGA988
    • Component for: Netbook/nettop
    • Processor lithography: 22
    • Processor series: Intel Core i5-3200 Mobile series
    • Processor threads: 4
    • System bus rate: 5
    • Processor operating modes: 64-bit
    • Processor boost frequency: 3.2
    • Processor cache: 3
    • Processor cache type: Smart Cache
    • Thermal Design Power (TDP): 35
    • Package type: Tray
    • Generation: 3rd Generation
    • Bus type: DMI
    • CPU multiplier (bus/core ratio): 26
    • Memory bandwidth supported by processor (max): 25.6
    • Processor codename: Ivy Bridge
    • Processor ARK ID: 72164
    • Maximum internal memory supported by processor: 32
    • Memory types supported by processor: DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
    • Memory clock speeds supported by processor: 1333/1600
    • Memory channels: Dual-channel
    • On-board graphics card: Yes
    • On-board graphics card model: Intel HD Graphics 4000
    • On-board graphics card outputs supported: CRT/DisplayPort/Embedded DisplayPort (eDP)/HDMI/Serial Digital Video Out (SDVO)
    • On-board graphics card base frequency: 650
    • On-board graphics card dynamic frequency (max): 1100
    • Number of displays supported (on-board graphics): 3
    • On-board graphics card ID: 0x166
    • Execute Disable Bit: Yes
    • Idle States: Yes
    • Thermal Monitoring Technologies: Yes
    • Integrated 4G WiMAX: Yes
    • Market segment: Mobile
    • Maximum number of PCI Express lanes: 16
    • PCI Express slots version: 3.0
    • PCI Express configurations: 1x16/1x8/2x4/2x8
    • Supported instruction sets: AVX
    • Bandwidth: 5
    • CPU configuration (max): 1
    • Graphics & IMC lithography: 22
    • PCI Express CEM revision: 3.0
    • Export Control Classification Number (ECCN): 5A992C
    • Commodity Classification Automated Tracking System (CCATS): G077159
    • Enhanced Intel SpeedStep Technology: Yes
    • Intel Dual Display Capable Technology: Yes
    • Intel Fast Memory Access: Yes
    • Intel FDI Technology: Yes
    • Intel Flex Memory Access: Yes
    • Intel AES New Instructions (Intel AES-NI): Yes
    • Intel Anti-Theft Technology (Intel AT): Yes
    • Intel Clear Video HD Technology (Intel CVT HD): Yes
    • Intel Hyper Threading Technology (Intel HT Technology): Yes
    • Intel Identity Protection Technology (Intel IPT): Yes
    • Intel Insider: Yes
    • Intel InTru 3D Technology: Yes
    • Intel My WiFi Technology (Intel MWT): Yes
    • Intel Quick Sync Video Technology: Yes
    • Intel Turbo Boost Technology: 2.0
    • Intel Wireless Display (Intel WiDi): Yes
    • Intel Turbo Boost Technology 2.0 frequency: 3.2
    • Conflict-Free processor: Yes
    • Intel 64: Yes
    • Intel Enhanced Halt State: Yes
    • Intel Identity Protection Technology version: 1.00
    • Intel Secure Key Technology version: 1.00
    • Intel Virtualization Technology (VT-x): Yes
    • Intel VT-x with Extended Page Tables (EPT): Yes
    • Intel Secure Key: Yes
    • Tjunction: 105
    • Born on date: Q113
    • Bus bandwidth: 5
    • Bus speed: 5 GT/s
    • Bus type units: GT/s
    • Graphics max dynamic frequency: 1.10 GHz
    • Last change: 63903513
    • Launch date: Q113
    • Maximum memory: 32
    • Processor brand name: Intel Core i5 Intel Core i5 Processor
    • Processor cache: 3072
    • Processor ID: 0x166
    • Product family: 3rd Generation Intel Core i5 Processors
    • Product name: Intel Core i5-3230M (3M Cache, up to 3.20 GHz) rPGA
    • Product type: Processor
    • Status: Discontinued
    • Supported memory types: DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
    • Harmonized System (HS) code: 8542310001
    • Processor package size: 37.5mm x 37.5mm
    • Intel Virtualization Technology (Intel VT): VT-d/VT-x
    • Cache memory: 3
    • Graphics output: eDP/DP/HDMI/SDVO/CRT
    • L2 cache: 3072
    • Maximum internal memory: 32
    • Maximum internal memory: 32768
    • Supported processor frequency (max): 3.2
    • CPU Family name: Intel Core i5
    • Unit Calculated Volume: 7E-05
    • Unit Calculated Weight: 0.04
    Specifications
    Bandwidth 5
    Born on date Q1'13
    Bus bandwidth 5
    Bus speed 5 GT/s
    Bus type DMI
    Bus type units GT/s
    Cache memory 3
    Conflict-Free processor Yes
    CPU configuration (max) 1
    CPU multiplier (bus/core ratio) 26
    Enhanced Intel SpeedStep Technology Yes
    Execute Disable Bit Yes
    Generation 3rd Generation
    Graphics & IMC lithography 22
    Graphics max dynamic frequency 1.10 GHz
    Graphics output eDP/DP/HDMI/SDVO/CRT
    Idle States Yes
    Integrated 4G WiMAX Yes
    Intel 64 Yes
    Intel Dual Display Capable Technology Yes
    Intel Enhanced Halt State Yes
    Intel Fast Memory Access Yes
    Intel FDI Technology Yes
    Intel Flex Memory Access Yes
    Intel Identity Protection Technology version 1.00
    Intel Secure Key Technology version 1.00
    Intel Virtualization Technology (VT-x) Yes
    Intel VT-x with Extended Page Tables (EPT) Yes
    Intel® AES New Instructions (Intel® AES-NI) Yes
    Intel® Anti-Theft Technology (Intel® AT) Yes
    Intel® Hyper Threading Technology (Intel® HT Technology) Yes
    Intel® Identity Protection Technology (Intel® IPT) Yes
    Intel® My WiFi Technology (Intel® MWT) Yes
    Intel® Secure Key Yes
    Intel® Turbo Boost Technology 2.0 frequency 3.2
    Intel® Wireless Display (Intel® WiDi) Yes
    L2 cache 3072
    Last change 63903513
    Maximum memory 32
    Maximum number of PCI Express lanes 16
    Memory bandwidth supported by processor (max) 25.6
    Memory clock speeds supported by processor 1333/1600
    Memory types supported by processor DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
    Number of displays supported (on-board graphics) 3
    On-board graphics card base frequency 650
    On-board graphics card dynamic frequency (max) 1100
    On-board graphics card ID 0x166
    On-board graphics card outputs supported CRT/DisplayPort/Embedded DisplayPort (eDP)/HDMI/Serial Digital Video Out (SDVO)
    Processor ARK ID 72164
    Processor base frequency 2.6
    Processor boost frequency 3.2
    Processor brand name Intel Core i5 Intel Core i5 Processor
    Processor cache 3072
    Processor cache type Smart Cache
    Processor codename Ivy Bridge
    Processor generation 3rd gen Intel® Core™ i5
    Processor ID 0x166
    Processor operating modes 64-bit
    Processor package size 37.5mm x 37.5mm
    Processor series Intel Core i5-3200 Mobile series
    Processor threads 4
    Product family 3rd Generation Intel Core i5 Processors
    Product name Intel Core i5-3230M (3M Cache, up to 3.20 GHz) rPGA
    Supported instruction sets AVX
    Supported processor frequency (max) 3.2
    Thermal Monitoring Technologies Yes
    Tjunction 105
    Specs
    Category Code CPU
    Commodity Classification Automated Tracking System (CCATS) G077159
    Component for Netbook/nettop
    CPU Family name Intel Core i5
    Description

    Intel® Quick Sync Video
    Intel® Quick Sync Video delivers fast conversion of video for portable media players, online sharing, and video editing and authoring

    Intel® InTru™ 3D Technology
    Intel® InTru™ 3D Technology provides stereoscopic 3-D Blu-ray playback in full 1080p resolution over HDMI 1.4 and premium audio.

    Intel® Wireless Display
    Intel® Wireless Display is technology that enables wireless streaming of movies, photos, websites, and more from an UltrabookTM or PC to an HDTV.

    The Intel® Flexible Display
    The Intel® Flexible Display Interface is an innovative path for two independently controlled channels of integrated graphics to be displayed.

    Intel® Clear Video HD Technology
    Intel® Clear Video HD Technology delivers High Definition quality playback so that you can experience movies and games like never before.

    Intel® Hyper-Threading Technology (Intel® HT Technology)
    Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

    Intel® Virtualization Technology (VT-x)
    Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

    Intel® Virtualization Technology for Directed I/O (VT-d)
    Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

    Advanced Encryption Standard New Instructions (AES-NI)
    Advanced Encryption Standard New Instructions (AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, anthentication, random number generation, and authenticated encryption.

    Intel® 64
    Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

    Intel® Anti-Theft Technology (Intel® AT)
    Intel® Anti-Theft Technology (Intel® AT) helps keep your laptop safe and secure in the event that it’s ever lost or stolen. Intel® AT requires a service subscription from an Intel® AT–enabled service provider

    Intel® My WiFi Technology
    Intel® My WiFi Technology enables wireless connection of an UltrabookTM or laptop to WiFi-enabled devices such as printers, stereos, etc.

    4G WiMAX Wireless Technology
    4G WiMAX Wireless Technology provides broadband Internet access at speeds up to four times faster than 3G.

    Idle States (C-states)
    Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

    Enhanced Intel SpeedStep® Technology
    Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

    Thermal Monitoring Technologies
    Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.

    Intel® Fast Memory Access
    Intel® Fast Memory Access is an updated Graphics Memory Controller Hub (GMCH) backbone architecture that improves system performance by optimizing the use of available memory bandwidth and reducing the latency of the memory accesses.

    Intel® Flex Memory Access
    Intel® Flex Memory Access facilitates easier upgrades by allowing different memory sizes to be populated and remain in dual-channel mode.

    Execute Disable Bit
    Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

    Intel® VT-x with Extended Page Tables (EPT)
    Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

    Export Control Classification Number (ECCN) 5A992C
    Harmonized System (HS) code 8542310001
    Intel® Clear Video HD Technology (Intel® CVT HD) Yes
    Intel® Insider™ Yes
    Intel® InTru™ 3D Technology Yes
    Intel® Quick Sync Video Technology Yes
    Intel® Turbo Boost Technology 2.0
    Intel® Virtualization Technology (Intel® VT) VT-d/VT-x
    Launch date Q1'13
    Market segment Mobile
    Maximum internal memory 32768
    Maximum internal memory supported by processor 32
    Memory channels Dual-channel
    Name CPU CORE I5-3230M S988 OEM 3M/2.6G AW8063801208001S R0WY IN
    On-board graphics card Yes
    On-board graphics card model Intel® HD Graphics 4000
    Package type Tray
    PCI Express CEM revision 3.0
    PCI Express configurations 1x16/1x8/2x4/2x8
    PCI Express slots version 3.0
    PictureUrl https://static.elko.cloud/ProductImages/e11e9e2b-bffb-41b4-a76d-c2cda7b97828.Jpeg
    Processor cores 2
    Processor family Intel® Core™ i5
    Processor lithography 22
    Processor manufacturer Intel
    Processor model i5-3230M
    Processor socket PGA988
    Product type Processor
    Status Discontinued
    Summary Intel Core i5-3230M. Processor family: Intel® Core™ i5, Processor socket: PGA988, Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM. On-board graphics card model: Intel® HD Graphics 4000, On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, Serial Digital Video Out (SDVO), CRT, On-board graphics card base frequency: 650 MHz. Market segment: Mobile, PCI Express configurations: 1x16, 2x8, 1x8, 2x4, Supported instruction sets: AVX. Intel® Turbo Boost Technology 2.0 frequency: 3.2 GHz
    Supported memory types DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
    System bus rate 5
    Thermal Design Power (TDP) 35
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/e11e9e2b-bffb-41b4-a76d-c2cda7b97828.Jpeg
    Unit Calculated Volume 7E-05
    Unit Calculated Weight 0.04
    Vendor Homepage https://ark.intel.com/products/72164/
