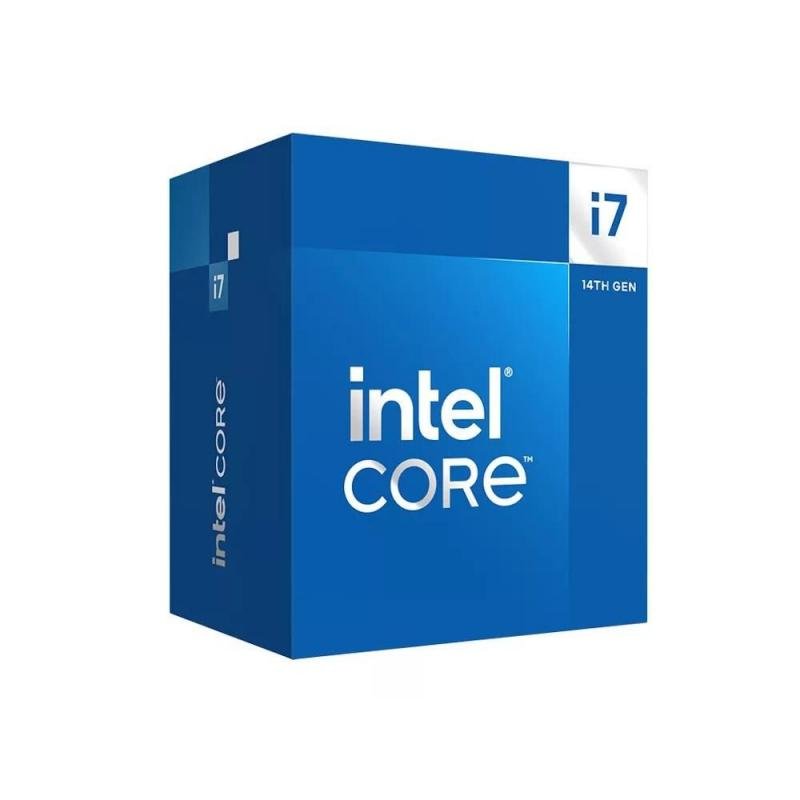

Intel Core i7 i7-14700F

Technical Specifications

• Summary: Intel Core i7-14700F. Processor family: Intel Core i7, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Intel Turbo Boost Max Technology 3.0 frequency: 5.4 GHz. Processor package size: 45 x 37.5 mm
• Vendor Homepage: https://ark.intel.com/content/www/us/en/ark/products/236854/intel-core-i7-processor-14700f-33m-cache-up-to-5-40-ghz.html
• Name: CPU CORE I7-14700F S1700 BOX/2.1G BX8071514700F S RN3Z IN
• Category Code: CPU
• Processor manufacturer: Intel
• Processor generation: Intel Core i7 (14th gen)
• Processor model: i7-14700F
• Processor family: Intel Core i7
• Processor cores: 20
• Processor socket: LGA 1700
• Processor threads: 28
• Processor operating modes: 64-bit
• Performance cores: 8
• Efficient cores: 12
• Processor boost frequency: 5.4
• Performance-core boost frequency: 5.3
• Performance-core base frequency: 2.1
• Efficient-core boost frequency: 4.2
• Efficient-core base frequency: 1.5
• Processor cache: 33
• Processor cache type: Smart Cache
• Package type: Box
• Cooler included: Yes
• Maximum turbo power: 219
• Processor base power: 65
• Stepping: B0
• Maximum number of DMI lanes: 8
• Memory bandwidth supported by processor (max): 89.6
• Processor codename: Raptor Lake
• Processor ARK ID: 236854
• Maximum internal memory supported by processor: 192
• Memory types supported by processor: DDR4-SDRAM/DDR5-SDRAM
• Memory channels: Dual-channel
• Memory bandwidth (max): 89.6
• Discrete graphics card: No
• On-board graphics card: No
• On-board graphics card model: Not available
• Discrete graphics card model: Not available
• Execute Disable Bit: Yes
• Idle States: Yes
• Thermal Monitoring Technologies: Yes
• Market segment: Desktop
• Use conditions: PC/Client/Tablet
• Maximum number of PCI Express lanes: 20
• PCI Express slots version: 4.0/5.0
• PCI Express configurations: 1x16+1x4/2x8+1x4
• Supported instruction sets: AVX 2.0/SSE4.1/SSE4.2
• CPU configuration (max): 1
• Direct Media Interface (DMI) Revision: 4.0
• Embedded options available: No
• Scalability: 1S
• Export Control Classification Number (ECCN): 5A992C
• Commodity Classification Automated Tracking System (CCATS): 740.17B1
• Enhanced Intel SpeedStep Technology: Yes
• Intel AES New Instructions (Intel AES-NI): Yes
• Intel Hyper Threading Technology (Intel HT Technology): Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Technology: 2.0
• Intel Turbo Boost Max Technology 3.0 frequency: 5.4
• Intel Gaussian & Neural Accelerator (Intel GNA) 3.0: Yes
• Intel Control-flow Enforcement Technology (CET): Yes
• Intel Thread Director: Yes
• Intel 64: Yes
• Intel Turbo Boost Max Technology 3.0: Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Intel Boot Guard: Yes
• Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
• Intel OS Guard: Yes
• Intel Secure Key: Yes
• Intel Standard Manageability (ISM): Yes
• Intel Volume Management Device (VMD): Yes
• Mode-based Execute Control (MBE): Yes
• Tjunction: 100
• Launch date: Q124
• Status: Launched
• Harmonized System (HS) code: 8542310001
• Processor package size: 45 x 37.5
• L2 cache: 28672
• Maximum internal memory: 192
• CPU Family name: Intel Core i7
• Model number: i7-14700F
• Units per Shipping Box: 5
• Unit Calculated Volume: 0.0012792
• Unit Calculated Weight: 0.492
