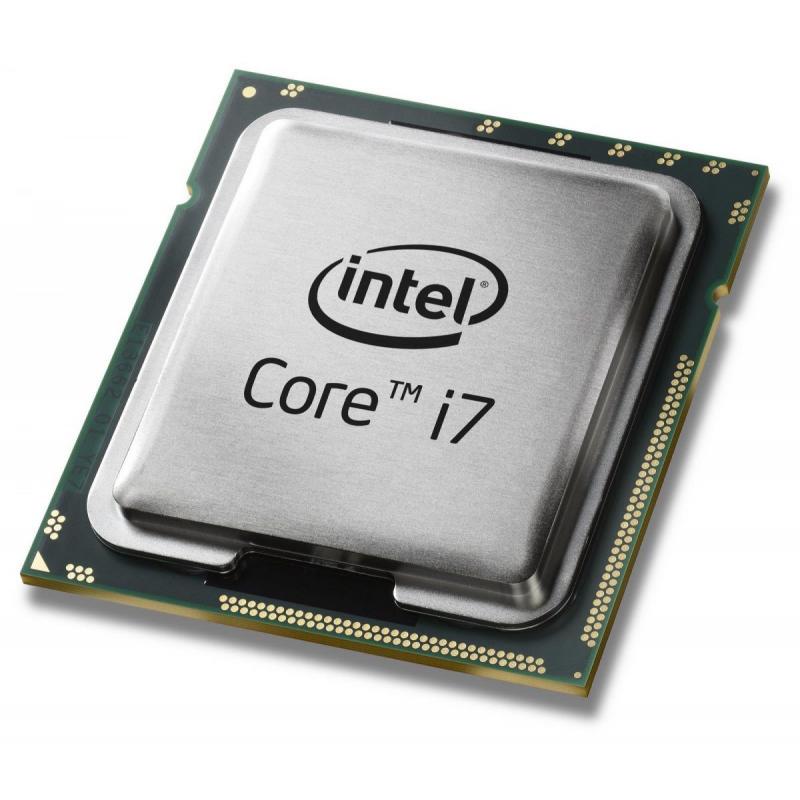

Intel Core i7

Technical Specifications

• Summary: Intel Core i7-3740QM. Processor family: Intel Core i7, Processor socket: PGA988, Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM. On-board graphics card model: Intel HD Graphics 4000, On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, Serial Digital Video Out (SDVO), CRT, On-board graphics card base frequency: 650 MHz. Market segment: Mobile, PCI Express configurations: 1x16, 2x8, 1x8, 2x4, Supported instruction sets: AVX. Intel Turbo Boost Technology 2.0 frequency: 3.7 GHz
• Vendor Homepage: https://ark.intel.com/products/70847/
• Name: CPU CORE I7-3740QM SG2 OEM 6M/2.7G AW8063801105000SR0UV IN
• Category Code: CPU
• Processor manufacturer: Intel
• Processor generation: 3rd gen Intel Core i7
• Processor model: i7-3740QM
• Processor base frequency: 2.7
• Processor family: Intel Core i7
• Processor cores: 4
• Processor socket: PGA988
• Component for: Laptop
• Processor lithography: 22
• Processor series: Intel Core i7-3700 Mobile Series
• Processor threads: 8
• System bus rate: 5
• Processor operating modes: 64-bit
• Processor boost frequency: 3.7
• Processor cache: 6
• Processor cache type: Smart Cache
• L3 cache speed: 2.7
• Thermal Design Power (TDP): 45
• Package type: Tray
• Generation: 3rd Generation
• Stepping: E1
• Bus type: DMI
• CPU multiplier (bus/core ratio): 27
• Memory bandwidth supported by processor (max): 25.6
• Processor codename: Ivy Bridge
• Processor code: SR0UV
• Processor ARK ID: 70847
• Maximum internal memory supported by processor: 32
• Memory types supported by processor: DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
• Memory clock speeds supported by processor: 1333/1600
• Memory channels: Dual-channel
• On-board graphics card: Yes
• On-board graphics card model: Intel HD Graphics 4000
• On-board graphics card outputs supported: CRT/DisplayPort/Embedded DisplayPort (eDP)/HDMI/Serial Digital Video Out (SDVO)
• On-board graphics card base frequency: 650
• On-board graphics card dynamic frequency (max): 1300
• Number of displays supported (on-board graphics): 3
• On-board graphics card ID: 0x166
• Execute Disable Bit: Yes
• Idle States: Yes
• Thermal Monitoring Technologies: Yes
• Integrated 4G WiMAX: Yes
• Market segment: Mobile
• Maximum number of PCI Express lanes: 16
• PCI Express slots version: 3.0
• PCI Express configurations: 1x16/1x8/2x4/2x8
• Supported instruction sets: AVX
• Bandwidth: 5
• CPU configuration (max): 1
• Graphics & IMC lithography: 22
• PCI Express CEM revision: 3.0
• Export Control Classification Number (ECCN): 5A992C
• Commodity Classification Automated Tracking System (CCATS): G077159
• Enhanced Intel SpeedStep Technology: Yes
• Intel Dual Display Capable Technology: Yes
• Intel Fast Memory Access: Yes
• Intel FDI Technology: Yes
• Intel Flex Memory Access: Yes
• Intel Trusted Execution Technology: Yes
• Intel AES New Instructions (Intel AES-NI): Yes
• Intel Anti-Theft Technology (Intel AT): Yes
• Intel Clear Video HD Technology (Intel CVT HD): Yes
• Intel Hyper Threading Technology (Intel HT Technology): Yes
• Intel Identity Protection Technology (Intel IPT): Yes
• Intel Insider: Yes
• Intel InTru 3D Technology: Yes
• Intel My WiFi Technology (Intel MWT): Yes
• Intel Quick Sync Video Technology: Yes
• Intel Smart Cache: Yes
• Intel Turbo Boost Technology: 2.0
• Intel Wireless Display (Intel WiDi): Yes
• Intel Turbo Boost Technology 2.0 frequency: 3.7
• Conflict-Free processor: Yes
• Intel 64: Yes
• Intel Enhanced Halt State: Yes
• Intel Identity Protection Technology version: 1.00
• Intel Secure Key Technology version: 1.00
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Intel Secure Key: Yes
• Intel vPro Platform Eligibility: Yes
• Tjunction: 105
• Born on date: Q312
• Bus bandwidth: 5
• Bus speed: 5 GT/s
• Bus type units: GT/s
• Graphics max dynamic frequency: 1.30 GHz
• Last change: 63903513
• Launch date: Q312
• Maximum memory: 32
• Processor cache: 6144
• Processor ID: 0x166
• Product family: 3rd Generation Intel Core i7 Processors
• Product name: Intel Core i7-3740QM (6M Cache, up to 3.70 GHz)
• Product type: Processor
• Status: Discontinued
• Supported memory types: DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
• Harmonized System (HS) code: 8542310001
• Processor package size: 37.5mm x 37.5mm; 31mm x 24mm
• Intel Virtualization Technology (Intel VT): VT-d/VT-x
• Cache memory: 6
• Graphics output: eDP/DP/HDMI/SDVO/CRT
• Maximum internal memory: 32
• Maximum internal memory: 32768
• CPU Family name: Intel Core i7
• Unit Calculated Volume: 7E-05
• Unit Calculated Weight: 0.04
