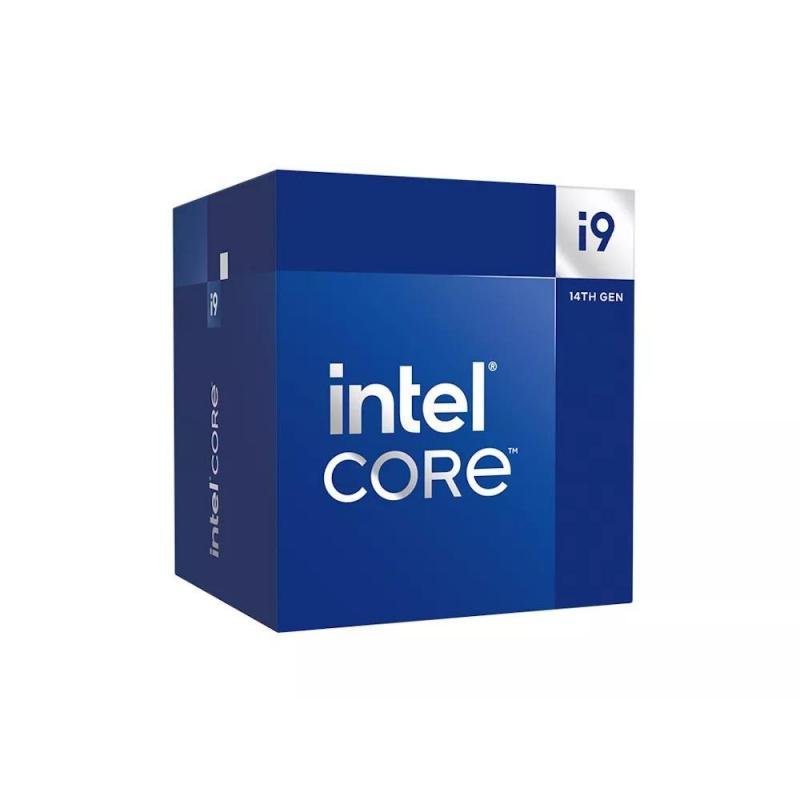

Intel Core i9 i9-14900

Intel Core i9 i9-14900
Нема на залиха
Intel Core i9 i9-14900
  • Processor model: i9-14900
  • Processor family: Intel® Coreâ„¢ i9
  • Processor cores: 24
  • Processor socket: LGA 1700
  • On-board graphics card model: Intel UHD Graphics 770
    • Врз основа на 0 коментари. - Напиши коментар
    43,548ден.
    • Достапност: Нема на залиха
    • Бренд: INTEL
    • Шифра: 407349
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Intel Core i9-14900. Processor family: Intel Core i9, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. On-board graphics card model: Intel UHD Graphics 770, On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Intel Turbo Boost Max Technology 3.0 frequency: 5.6 GHz, Intel Thermal Velocity Boost Frequency: 5.8 GHz
    • Vendor Homepage: https://ark.intel.com/content/www/us/en/ark/products/236793/intel-core-i9-processor-14900-36m-cache-up-to-5-80-ghz.html
    • Name: CPU CORE I9-14900 S1700 BOX/2.0G BX8071514900 S RN3V IN
    • Category Code: CPU
    • Processor manufacturer: Intel
    • Processor generation: Intel Core i9 (14th gen)
    • Processor model: i9-14900
    • Processor family: Intel Core i9
    • Processor cores: 24
    • Processor socket: LGA 1700
    • Processor threads: 32
    • Processor operating modes: 64-bit
    • Performance cores: 8
    • Efficient cores: 16
    • Processor boost frequency: 5.8
    • Performance-core boost frequency: 5.4
    • Performance-core base frequency: 2
    • Efficient-core boost frequency: 4.3
    • Efficient-core base frequency: 1.5
    • Processor cache: 36
    • Processor cache type: Smart Cache
    • Package type: Box
    • Cooler included: Yes
    • Maximum turbo power: 219
    • Processor base power: 65
    • Stepping: B0
    • Maximum number of DMI lanes: 8
    • Memory bandwidth supported by processor (max): 89.6
    • Processor codename: Raptor Lake
    • Processor ARK ID: 236793
    • Maximum internal memory supported by processor: 192
    • Memory types supported by processor: DDR4-SDRAM/DDR5-SDRAM
    • Memory channels: Dual-channel
    • ECC: Yes
    • Memory bandwidth (max): 89.6
    • On-board graphics card: Yes
    • On-board graphics card model: Intel UHD Graphics 770
    • On-board graphics card outputs supported: DisplayPort 1.4a/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1
    • On-board graphics card base frequency: 300
    • On-board graphics card dynamic frequency (max): 1650
    • Number of displays supported (on-board graphics): 4
    • On-board graphics card DirectX version: 12.0
    • On-board graphics card OpenGL version: 4.5
    • On-board graphics card maximum resolution (DisplayPort): 7680 x 4320
    • On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 5120 x 3200
    • On-board graphics card maximum resolution (HDMI): 4096 x 2160
    • On-board graphics card refresh rate at maximum resolution (DisplayPort): 60
    • On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 120
    • On-board graphics card refresh rate at maximum resolution (HDMI): 60
    • On-board graphics card ID: 0xA780
    • Number of execution units: 32
    • Multi-Format Codec Engines: 2
    • Execute Disable Bit: Yes
    • Idle States: Yes
    • Thermal Monitoring Technologies: Yes
    • Market segment: Desktop
    • Use conditions: PC/Client/Tablet/Workstation
    • Maximum number of PCI Express lanes: 20
    • PCI Express slots version: 4.0/5.0
    • PCI Express configurations: 1x16+1x4/2x8+1x4
    • Supported instruction sets: AVX 2.0/SSE4.1/SSE4.2
    • CPU configuration (max): 1
    • Direct Media Interface (DMI) Revision: 4.0
    • Embedded options available: Yes
    • Scalability: 1S
    • Export Control Classification Number (ECCN): 5A992C
    • Commodity Classification Automated Tracking System (CCATS): 740.17B1
    • Enhanced Intel SpeedStep Technology: Yes
    • Intel AES New Instructions (Intel AES-NI): Yes
    • Intel Clear Video HD Technology (Intel CVT HD): Yes
    • Intel Hyper Threading Technology (Intel HT Technology): Yes
    • Intel Quick Sync Video Technology: Yes
    • Intel Speed Shift Technology: Yes
    • Intel Turbo Boost Technology: 2.0
    • Intel Thermal Velocity Boost: Yes
    • Intel Adaptive Boost Technology: Yes
    • Intel Turbo Boost Max Technology 3.0 frequency: 5.6
    • Intel Gaussian & Neural Accelerator (Intel GNA) 3.0: Yes
    • Intel Thermal Velocity Boost Frequency: 5.8
    • Intel Control-flow Enforcement Technology (CET): Yes
    • Intel Thread Director: Yes
    • Intel 64: Yes
    • Intel Turbo Boost Max Technology 3.0: Yes
    • Intel Virtualization Technology (VT-x): Yes
    • Intel Virtualization Technology for Directed I/O (VT-d): Yes
    • Intel VT-x with Extended Page Tables (EPT): Yes
    • Intel Boot Guard: Yes
    • Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
    • Intel OS Guard: Yes
    • Intel Secure Key: Yes
    • Intel Standard Manageability (ISM): Yes
    • Intel Volume Management Device (VMD): Yes
    • Mode-based Execute Control (MBE): Yes
    • Tjunction: 100
    • OpenCL version: 3.0
    • Launch date: Q124
    • Status: Launched
    • Harmonized System (HS) code: 8542310001
    • Processor package size: 45 x 37.5
    • Graphics output: eDP 1.4b, DP 1.4a, HDMI 2.1
    • L2 cache: 32768
    • Maximum internal memory: 192
    • CPU Family name: Intel Core i9
    • Model number: i9-14900
    • Units per Shipping Box: 5
    • Unit Calculated Volume: 0.003072
    • Unit Calculated Weight: 0.7408
    Specifications
    CPU configuration (max) 1
    Direct Media Interface (DMI) Revision 4.0
    Efficient cores 16
    Efficient-core base frequency 1.5
    Efficient-core boost frequency 4.3
    Embedded options available Yes
    Enhanced Intel SpeedStep Technology Yes
    Execute Disable Bit Yes
    Graphics output eDP 1.4b, DP 1.4a, HDMI 2.1
    Idle States Yes
    Intel 64 Yes
    Intel Turbo Boost Max Technology 3.0 Yes
    Intel Virtualization Technology (VT-x) Yes
    Intel VT-x with Extended Page Tables (EPT) Yes
    Intel® Adaptive Boost Technology Yes
    Intel® AES New Instructions (Intel® AES-NI) Yes
    Intel® Boot Guard Yes
    Intel® Control-flow Enforcement Technology (CET) Yes
    Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
    Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 Yes
    Intel® Hyper Threading Technology (Intel® HT Technology) Yes
    Intel® OS Guard Yes
    Intel® Secure Key Yes
    Intel® Speed Shift Technology Yes
    Intel® Standard Manageability (ISM) Yes
    Intel® Thermal Velocity Boost Yes
    Intel® Thermal Velocity Boost Frequency 5.8
    Intel® Thread Director Yes
    Intel® Turbo Boost Max Technology 3.0 frequency 5.6
    Intel® Volume Management Device (VMD) Yes
    L2 cache 32768
    Maximum number of DMI lanes 8
    Maximum number of PCI Express lanes 20
    Maximum turbo power 219
    Memory bandwidth supported by processor (max) 89.6
    Memory types supported by processor DDR4-SDRAM/DDR5-SDRAM
    Mode-based Execute Control (MBE) Yes
    Multi-Format Codec Engines 2
    Number of displays supported (on-board graphics) 4
    Number of execution units 32
    On-board graphics card base frequency 300
    On-board graphics card DirectX version 12.0
    On-board graphics card dynamic frequency (max) 1650
    On-board graphics card ID 0xA780
    On-board graphics card maximum resolution (DisplayPort) 7680 x 4320
    On-board graphics card maximum resolution (eDP - Integrated Flat 5120 x 3200
    On-board graphics card maximum resolution (HDMI) 4096 x 2160
    On-board graphics card OpenGL version 4.5
    On-board graphics card outputs supported DisplayPort 1.4a/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1
    On-board graphics card refresh rate at maximum resolution (Displ 60
    On-board graphics card refresh rate at maximum resolution (eDP - 120
    On-board graphics card refresh rate at maximum resolution (HDMI) 60
    Performance cores 8
    Performance-core base frequency 2
    Performance-core boost frequency 5.4
    Processor ARK ID 236793
    Processor base power 65
    Processor boost frequency 5.8
    Processor cache 36
    Processor cache type Smart Cache
    Processor codename Raptor Lake
    Processor generation Intel® Core™ i9 (14th gen)
    Processor operating modes 64-bit
    Processor package size 45 x 37.5
    Processor threads 32
    Scalability 1S
    Stepping B0
    Supported instruction sets AVX 2.0/SSE4.1/SSE4.2
    Thermal Monitoring Technologies Yes
    Tjunction 100
    Specs
    Category Code CPU
    Commodity Classification Automated Tracking System (CCATS) 740.17B1
    Cooler included Yes
    CPU Family name Intel Core i9
    ECC Yes
    Export Control Classification Number (ECCN) 5A992C
    Harmonized System (HS) code 8542310001
    Intel Virtualization Technology for Directed I/O (VT-d) Yes
    Intel® Clear Video HD Technology (Intel® CVT HD) Yes
    Intel® Quick Sync Video Technology Yes
    Intel® Turbo Boost Technology 2.0
    Launch date Q1'24
    Market segment Desktop
    Maximum internal memory 192
    Maximum internal memory supported by processor 192
    Memory bandwidth (max) 89.6
    Memory channels Dual-channel
    Model number i9-14900
    Name CPU CORE I9-14900 S1700 BOX/2.0G BX8071514900 S RN3V IN
    On-board graphics card Yes
    On-board graphics card model Intel UHD Graphics 770
    OpenCL version 3.0
    Package type Box
    PCI Express configurations 1x16+1x4/2x8+1x4
    PCI Express slots version 4.0/5.0
    PictureUrl https://static.elko.cloud/ProductImages/ade0962c-957b-4050-a04e-17e67b19c3d8.Jpeg
    Processor cores 24
    Processor family Intel® Core™ i9
    Processor manufacturer Intel
    Processor model i9-14900
    Processor socket LGA 1700
    Status Launched
    Summary Intel Core i9-14900. Processor family: Intel® Core™ i9, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. On-board graphics card model: Intel UHD Graphics 770, On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Intel® Turbo Boost Max Technology 3.0 frequency: 5.6 GHz, Intel® Thermal Velocity Boost Frequency: 5.8 GHz
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/ade0962c-957b-4050-a04e-17e67b19c3d8.Jpeg
    Unit Calculated Volume 0.003072
    Unit Calculated Weight 0.7408
    Units per Shipping Box 5
    Use conditions PC/Client/Tablet/Workstation
    Vendor Homepage https://ark.intel.com/content/www/us/en/ark/products/236793/intel-core-i9-processor-14900-36m-cache-up-to-5-80-ghz.html
