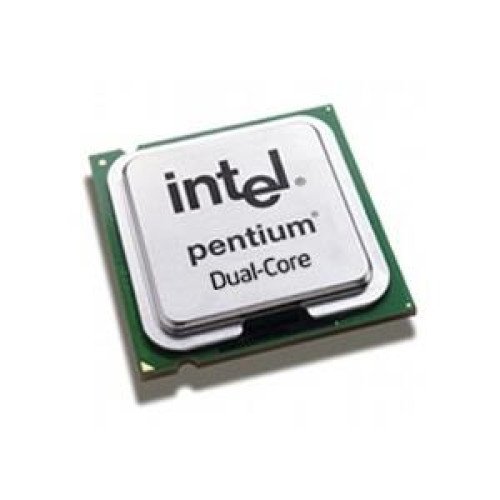

Intel Pentium Dual-Core 2020M

Technical Specifications

• Summary: Intel Pentium 2020M. Processor family: Intel Pentium, Processor socket: PGA988, Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM. On-board graphics card model: Intel HD Graphics, On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, Serial Digital Video Out (SDVO), CRT, On-board graphics card base frequency: 650 MHz. Market segment: Mobile, PCI Express configurations: 1x16, 2x8, 1x8, 2x4, Supported instruction sets: SSE4.1, SSE4.2. Processor package size: 37.5mm x 37.5mm
• Vendor Homepage: https://ark.intel.com/products/71142/
• Name: CPUPDC 2400/2M SG2 OEM/2020M AW8063801211202S R0U1 IN
• Category Code: CPU
• Processor manufacturer: Intel
• Processor model: 2020M
• Processor base frequency: 2.4
• Processor family: Intel Pentium
• Processor cores: 2
• Processor socket: PGA988
• Component for: Laptop
• Processor lithography: 22
• Processor series: Intel Pentium 2000 series for Mobile
• Processor threads: 2
• System bus rate: 5
• Processor operating modes: 64-bit
• Processor cache: 2
• Processor cache type: Smart Cache
• L3 cache speed: 2.4
• Thermal Design Power (TDP): 35
• Package type: Tray
• Compatible chipsets: Intel HM76 Express/Intel HM77 Express/Intel HM70 Express/Intel HM75 Express
• Stepping: L1
• Bus type: DMI
• CPU multiplier (bus/core ratio): 24
• Memory bandwidth supported by processor (max): 25.6
• Processor codename: Ivy Bridge
• Processor code: SR0U1
• Processor ARK ID: 71142
• Maximum internal memory supported by processor: 32
• Memory types supported by processor: DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
• Memory clock speeds supported by processor: 1333/1600
• Memory channels: Dual-channel
• On-board graphics card: Yes
• On-board graphics card model: Intel HD Graphics
• On-board graphics card outputs supported: CRT/DisplayPort/Embedded DisplayPort (eDP)/HDMI/Serial Digital Video Out (SDVO)
• On-board graphics card base frequency: 650
• On-board graphics card dynamic frequency (max): 1100
• Number of displays supported (on-board graphics): 3
• Execute Disable Bit: Yes
• Idle States: Yes
• Thermal Monitoring Technologies: Yes
• Market segment: Mobile
• Maximum number of PCI Express lanes: 16
• PCI Express slots version: 2.0
• PCI Express configurations: 1x16/1x8/2x4/2x8
• Supported instruction sets: SSE4.1/SSE4.2
• Bandwidth: 5
• CPU configuration (max): 1
• Graphics & IMC lithography: 22
• PCI Express CEM revision: 2.0
• Export Control Classification Number (ECCN): 3A991
• Commodity Classification Automated Tracking System (CCATS): NA
• Enhanced Intel SpeedStep Technology: Yes
• Intel Dual Display Capable Technology: Yes
• Intel Fast Memory Access: Yes
• Intel FDI Technology: Yes
• Intel Flex Memory Access: Yes
• Intel My WiFi Technology (Intel MWT): Yes
• Intel Smart Cache: Yes
• Conflict-Free processor: Yes
• Intel 64: Yes
• Intel Enhanced Halt State: Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Tjunction: 90
• Born on date: Q312
• Bus bandwidth: 5
• Bus speed: 5 GT/s
• Bus type units: GT/s
• Graphics max dynamic frequency: 1.10 GHz
• Last change: 63903513
• Launch date: Q312
• Maximum memory: 32
• Processor brand name: Intel Pentium
• Processor cache: 2048
• Product family: Intel Pentium Processor
• Product name: Intel Pentium 2020M (2M Cache, 2.40 GHz)
• Product type: Processor
• Status: Discontinued
• Supported memory types: DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
• Harmonized System (HS) code: 8542310001
• Processor package size: 37.5mm x 37.5mm
• Intel Virtualization Technology (Intel VT): VT-x
• Cache memory: 2
• Graphics output: eDP/DP/HDMI/SDVO/CRT
• Maximum internal memory: 32
• Maximum internal memory: 32768
• CPU Family name: Intel Pentium Dual-Core
• Model number: 2020M
• Unit Calculated Volume: 7E-05
• Unit Calculated Weight: 0.042
