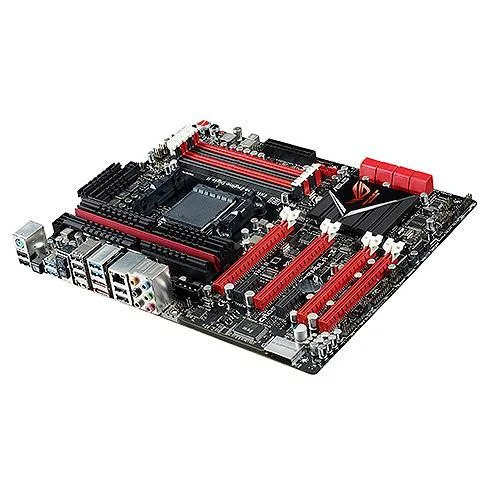

MB AMD 990X/SB950 SAM3+ ATX/CROSSHAIR V FORMULA-Z ASUS

Technical Specifications

• Summary: ASUS Crosshair V Formula-Z. Processor manufacturer: AMD, Processor socket: Socket AM3+, Compatible processor series: AMD Phenom FX, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom.... Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 3-Way CrossFireX, 3-Way SLI, Quad-GPU SLI. Ethernet interface type: Gigabit Ethernet
• Vendor Homepage: https://www.asus.com/Motherboards/AMD_AM3Plus/Crosshair_V_FormulaZ/#overview
• Name: MB AMD 990X/SB950 SAM3+ ATX/CROSSHAIR V FORMULA-Z ASUS
• Category Code: MBA
• Motherboard chipset: AMD 990FX
• Motherboard southbridge: AMD SB950
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Cooling type: Passive
• Motherboard chipset family: AMD
• Power source type: ATX
• Overclocking features: ROG Connect Digi+ II GameFirst iROG Extreme Tweaker COP EX ASUS C.P.R.
• Processor manufacturer: AMD
• Processor socket: Socket AM3+
• Compatible processor series: AMD Phenom FX/AMD Phenom II X2/AMD Phenom II x3/AMD Phenom II X4/AMD Phenom II X6/AMD Phenom II X8
• Maximum number of SMP processors: 1
• System bus rate: 5.2
• Supported memory types: DDR3-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 1066/1333/1600/1800/2000/2133/2400
• Maximum internal memory: 32
• Unbuffered memory: Yes
• Supported storage drive interfaces: SATA III
• RAID levels: 0/1/10/5
• Parallel processing technology support: 3-Way CrossFireX/3-Way SLI/Quad-GPU SLI
• Discrete graphics support: Yes
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 8
• S/PDIF out connector: Yes
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• Number of EATX power connectors: 2
• CPU fan connector: Yes
• Number of chassis fan connectors: 6
• Chassis intrusion connector: Yes
• EPS power connector (8-pin): Yes
• TPM connector: Yes
• USB 2.0 ports quantity: 8
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• eSATA ports quantity: 2
• PS/2 ports quantity: 1
• Microphone in: Yes
• S/PDIF out port: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• PCI Express x1 slots: 2
• PCI Express x16 slots: 4
• PCI Express configurations: 2x1/2x16+2x8
• PCI Express slots version: 2.0
• BIOS type: UEFI
• BIOS memory size: 64
• ACPI version: 2.0a
• Clear CMOS jumper: Yes
• Width: 305
• Depth: 244
• Cables included: CrossFire,SATA
• Drivers included: Yes
• Bundled software: GameFirst II Kaspersky Anti-Virus DAEMON Tools Pro Standard ROG CPU-Z ASUS WebStorage ASUS Utilities
• Controller 2nd interface type: ASMedia ASM1061
• Controller interface type: AMD SB950
• Audio output: 6
• Quick installation guide: Yes
• Unit Calculated Volume: 0.0107
• Unit Calculated Weight: 2.368
