52119-04-40G

Technical Specifications

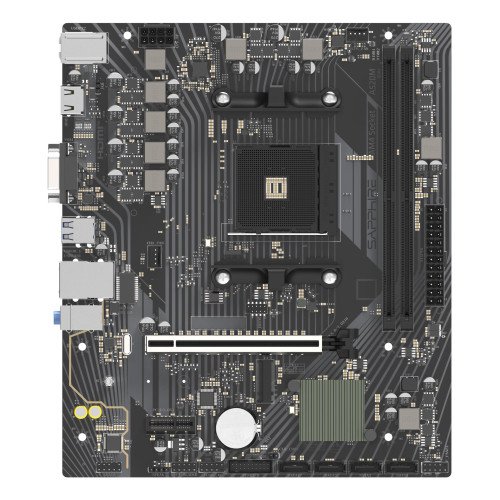

• Summary: Sapphire A520M-E. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111M
• Vendor Homepage: https://www.sapphiretech.com/en/consumer/mb_sapphire-a520m-e
• Name: MB AMD A520 SAM4 MATX/52119-04-40G SAPPHIRE
• Category Code: MBA
• Model: 52119-04-40G
• Motherboard chipset: AMD A520
• Audio chip: Realtek ALC897
• Product colour: Black
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 5.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Processor manufacturer: AMD
• Processor socket: Socket AM4
• Compatible processor series: AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
• Supported processor sockets: Socket AM4
• Supported memory types: DDR4-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• Supported memory clock speed (max): 3200
• Maximum internal memory: 64
• Maximum internal memory per slot: 32
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: PCI Express 3.0,SATA III
• Number of storage drives supported: 5
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 1
• Number of chassis fan connectors: 1
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• Headphone outputs: 3
• Microphone in: Yes
• USB connector type: USB Type-A
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• LAN controller: Realtek RTL8111M
• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 3.x) slots: 1
• Number of M.2 (M) slots: 1
• 1st M.2 largest key size: 2280
• 1st M.2 highest PCI Express generation: 3.0
• Clear CMOS jumper: Yes
• Width: 230
• Depth: 197
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.004368
• Unit Calculated Weight: 1
