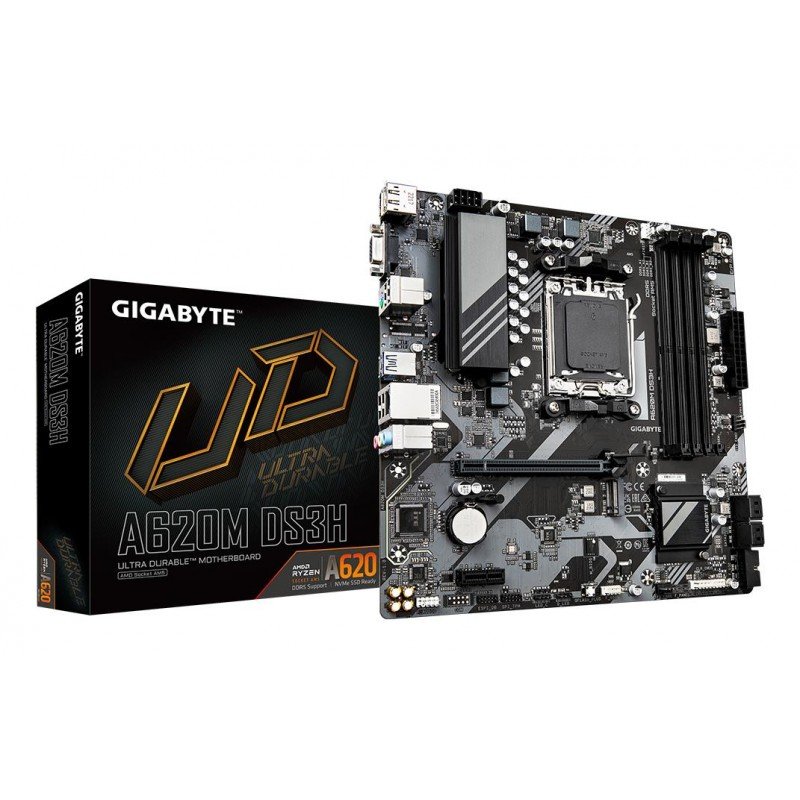

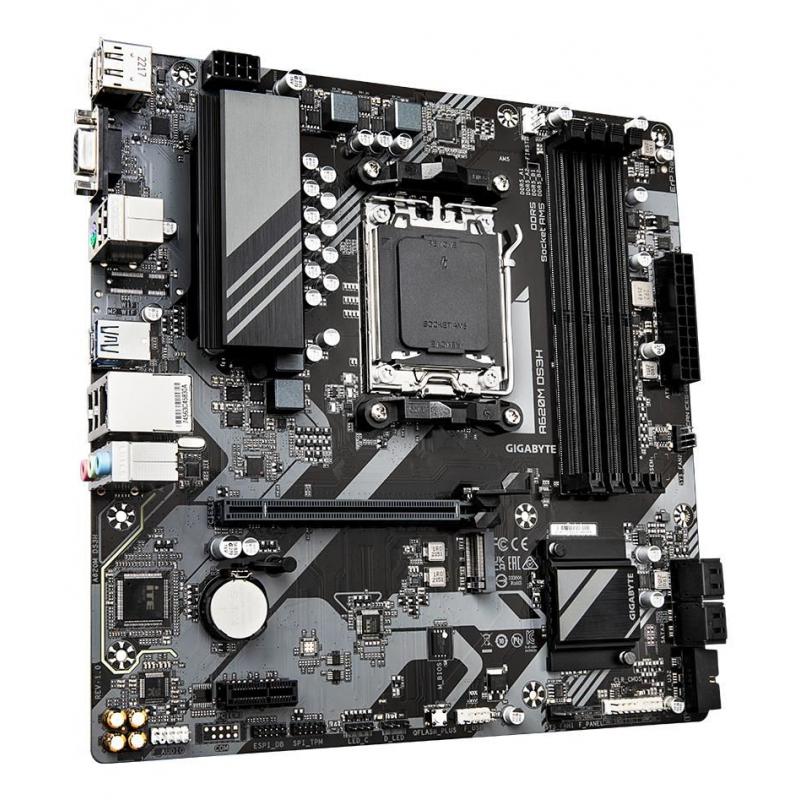

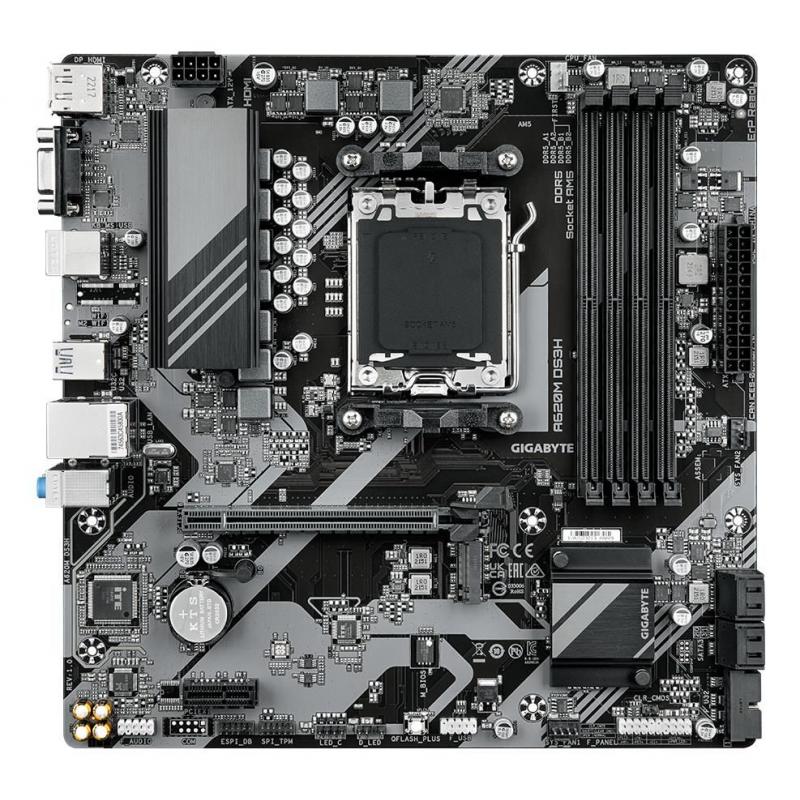

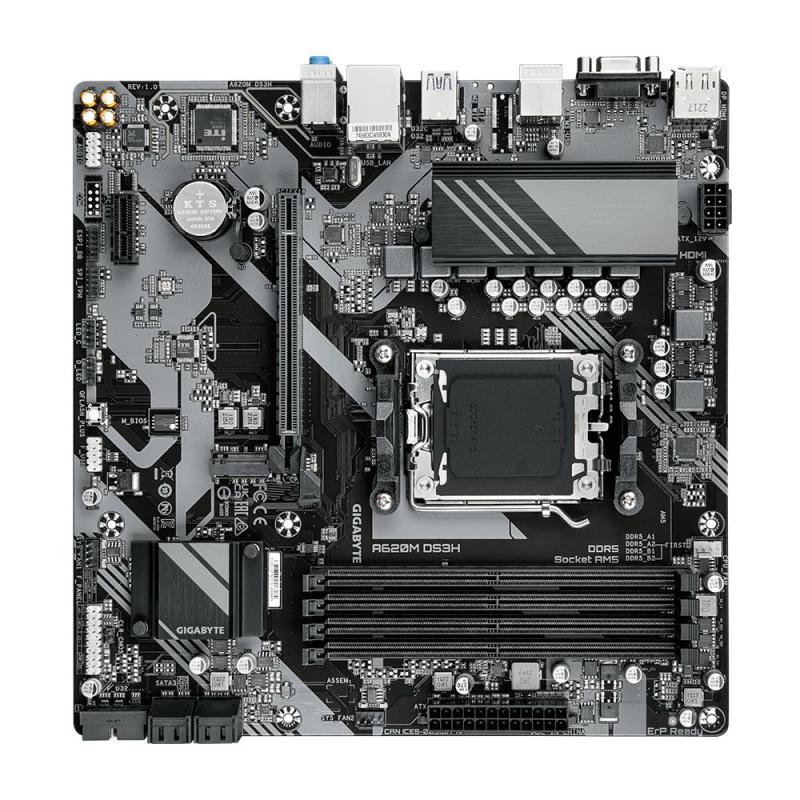

MB AMD A620 SAM5 MATX/A620M DS3H 2.0 GIGABYTE

MB AMD A620 SAM5 MATX/A620M DS3H 2.0 GIGABYTE
MB AMD A620 SAM5 MATX/A620M DS3H 2.0 GIGABYTE
  • Motherboard chipset: AMD A620
  • Motherboard form factor: micro ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 4
    • Врз основа на 0 коментари. - Напиши коментар
    5,998ден.
    • Достапност: Има залиха
    • Бренд: GIGABYTE
    • Шифра: 453060
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
    • Vendor Homepage: https://www.gigabyte.com
    • Name: MB AMD A620 SAM5 MATX/A620M DS3H 2.0 GIGABYTE
    • Category Code: MBA
    • Motherboard chipset: AMD A620
    • Product colour: Brown
    • PC health monitoring: Fan/Temperature/Voltage/Water cooling
    • Component for: PC
    • Motherboard form factor: micro ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: AMD
    • Windows operating systems supported: Windows 10 x64/Windows 11 x64
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Compatible processor series: AMD Ryzen 7000 Series
    • Supported processor sockets: Socket AM5
    • Maximum internal memory supported by processor: 192
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: Non-ECC
    • Supported memory clock speeds: 4800/5200/5600/6000/6200/6400/6800/7000/7200/7600
    • Supported memory clock speed (max): 7600
    • Maximum internal memory: 192
    • Supported memory module capacities: 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 1
    • Number of storage drives supported: 4
    • RAID support: Yes
    • RAID levels: 0/1/10
    • Parallel processing technology support: Not supported
    • Maximum resolution: 4096 x 2160
    • HDCP: Yes
    • DirectX version: 12.0
    • USB 2.0 connectors: 1
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • Number of SATA III connectors: 4
    • Total number of SATA connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • USB 2.0 ports quantity: 4
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • VGA (D-Sub) ports quantity: 1
    • HDMI ports quantity: 1
    • HDMI version: 2.1
    • DisplayPorts quantity: 1
    • DisplayPort version: 1.4
    • Headphone outputs: 3
    • Microphone in: Yes
    • USB connector type: USB Type-A/USB Type-C
    • Ethernet LAN: Yes
    • Ethernet interface type: Gigabit Ethernet
    • PCI Express x1 slots: 1
    • PCI Express x16 slots: 1
    • Number of M.2 (M) slots: 1
    • BIOS type: UEFI AMI
    • BIOS memory size: 256
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Country of origin: China
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 265
    • Number of battery cells: 1
    • Package depth: 265
    • Package height: 54
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 1067
    • Battery type: CR2032
    • Width: 244
    • Depth: 244
    • Height: 35
    • Batteries included: Yes
    • Cables included: SATA
    • Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
    • Warranty period: 3
    • Units per Pallet: 0
    • Units per Shipping Box: 10
    • Unit Calculated Volume: 0.00471
    • Unit Calculated Weight: 1.02
    Specs
    12V power connector Yes
    ACPI version 5.0
    ATX Power connector (24-pin) Yes
    Audio output channels 7.1
    Batteries included Yes
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Battery type CR2032
    Battery weight 3
    BIOS memory size 256
    BIOS type UEFI AMI
    Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
    Cables included SATA
    Category Code MBA
    Clear CMOS jumper Yes
    Compatible processor series AMD Ryzen 7000 Series
    Component for PC
    Country of origin China
    CPU fan connector Yes
    Depth 244
    Description

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

    • AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
    • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
    • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
    • EZ-Latch：PCIe x16 Slot with Quick Release Design
    • Fast Networks：GbE LAN
    • Extended Connectivity：DP, HDMI, D-Sub
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
    Desktop Management Interface (DMI) version 2.7
    DirectX version 12.0
    DisplayPort version 1.4
    DisplayPorts quantity 1
    ECC сompatibility Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    HDCP Yes
    HDMI ports quantity 1
    HDMI version 2.1
    Headphone outputs 3
    Height 35
    Lithium weight per battery 0.07
    Maximum internal memory 192
    Maximum internal memory supported by processor 192
    Maximum resolution 4096 x 2160
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Motherboard chipset AMD A620
    Motherboard chipset family AMD
    Motherboard form factor micro ATX
    Name MB AMD A620 SAM5 MATX/A620M DS3H 2.0 GIGABYTE
    Number of battery cells 1
    Number of HDDs supported 1
    Number of M.2 (M) slots 1
    Number of memory slots 4
    Number of SATA III connectors 4
    Number of storage drives supported 4
    Package depth 265
    Package height 54
    Package weight 1067
    Package width 265
    Parallel processing technology support Not supported
    PC health monitoring Fan/Temperature/Voltage/Water cooling
    PCI Express x1 slots 1
    PCI Express x16 slots 1
    PictureUrl https://static.elko.cloud/ProductImages/c9627c17-3852-4765-859e-009ca842890d.Jpeg
    Processor manufacturer AMD
    Processor socket Socket AM5
    Product colour Brown
    Products per shipping (inner) case 1
    PS/2 ports quantity 1
    RAID levels 0/1/10
    RAID support Yes
    RGB LED pin header Yes
    Summary GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
    Supported memory clock speed (max) 7600
    Supported memory clock speeds 4800/5200/5600/6000/6200/6400/6800/7000/7200/7600
    Supported memory module capacities 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
    Supported memory types DDR5-SDRAM
    Supported processor sockets Socket AM5
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    System Management BIOS (SMBIOS) version 2.7
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/c9627c17-3852-4765-859e-009ca842890d.Jpeg
    Total number of SATA connectors 4
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.00471
    Unit Calculated Weight 1.02
    Units per Pallet 0
    Units per Shipping Box 10
    USB 2.0 connectors 1
    USB 2.0 ports quantity 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
    USB connector type USB Type-A/USB Type-C
    Vendor Homepage https://www.gigabyte.com
    VGA (D-Sub) ports quantity 1
    Warranty period 3
    Width 244
    Windows operating systems supported Windows 10 x64/Windows 11 x64
