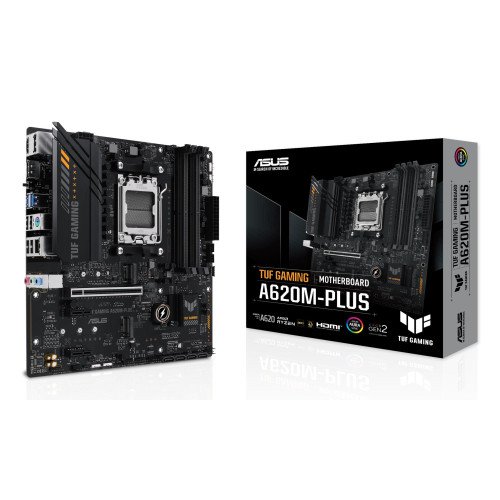

TUF GAMING A620M-PLUS

Technical Specifications

• Summary: ASUS TUF GAMING A620M-PLUS. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
• Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620m-plus/
• Name: MB AMD A620 SAM5 MATX/TUF GAMING A620M-PLUS ASUS
• Category Code: MBA
• Model: TUF GAMING A620M-PLUS
• Motherboard chipset: AMD A620
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Cooling type: Passive
• Motherboard chipset family: AMD
• Power source type: ATX
• Windows operating systems supported: Windows 10/Windows 11
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series
• Supported processor sockets: Socket AM5
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400
• Supported memory clock speed (max): 6400
• Maximum internal memory: 128
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 6
• RAID support: Yes
• RAID levels: 0/1/10
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 4
• S/PDIF out connector: Yes
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 2
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• Number of COM connectors: 1
• RGB LED pin header: Yes
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 2
• DisplayPort version: 1.4
• Headphone outputs: 1
• Line-in: Yes
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• PCI Express x1 (Gen 3.x) slots: 2
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 2
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Package width: 275
• Package depth: 275
• Package height: 67.5
• Package weight: 850
• Width: 244
• Depth: 244
• Cables included: SATA
• User guide: Yes
• Back-to-BIOS button: Yes
• Units per Shipping Box: 10
• Unit Calculated Volume: 0.006156
• Unit Calculated Weight: 1.41
