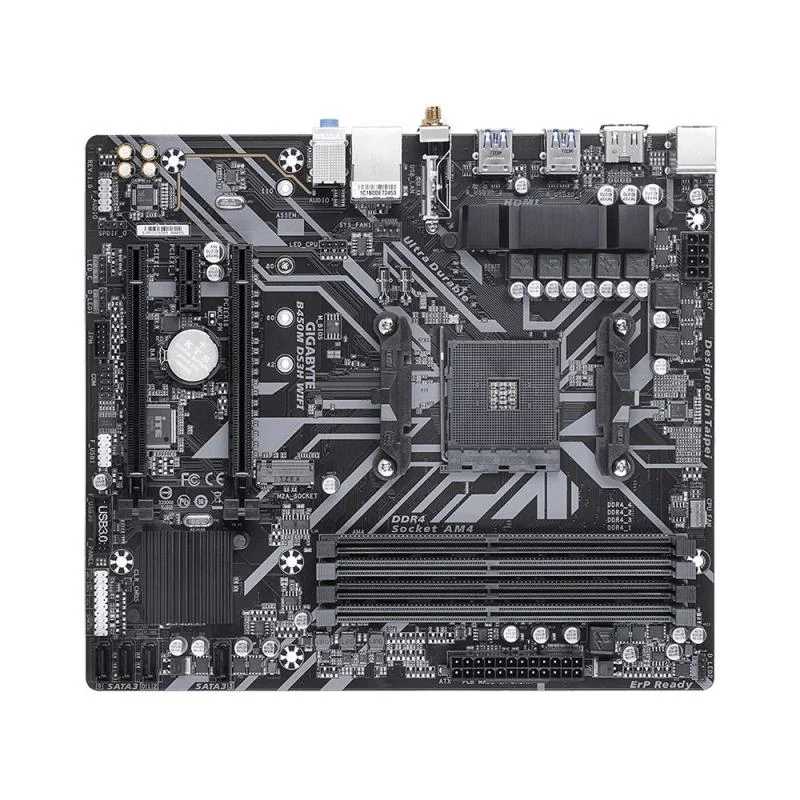

MB AMD B450 SAM4 MATX/B450M DS3H WIFI 1.5 GIGABYTE
5,930ден.
- Достапност: Нема на залиха
- Бренд: GIGABYTE
- Шифра: 409945
- Гарантен рок: 24 месеци
- Достава: 13-16 дена
1
| Specifications | |
| ECC сompatibility | ECC & Non-ECC |
| Unit Depth | 27 |
| Unit Height | 27 |
| Unit Width | 6 |
| Specs | |
| 12V power connector | Yes |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| BIOS memory size | 128 |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bundled software | Norton Internet Security, cFosSpeed |
| Category Code | MBA |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 2000 Series/AMD Ryzen 3000 Series |
| Component for | PC |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 215 |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| Discrete graphics support | Yes |
| DVI-D ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Height | 35 |
| Lithium weight per battery | 0.07 |
| Maximum graphics card memory | 16000 |
| Maximum internal memory | 128 |
| Maximum internal memory supported by processor | 128 |
| Maximum number of SMP processors | 1 |
| Maximum resolution | 4096 x 2160 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Model | B450M DS3H WIFI (rev. 1.5) |
| Motherboard chipset | AMD B450 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Name | MB AMD B450 SAM4 MATX/B450M DS3H WIFI 1.5 GIGABYTE |
| Number of battery cells | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| Package depth | 265 |
| Package height | 54 |
| Package weight | 950 |
| Package width | 265 |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan/Temperature/Voltage |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Product colour | Brown |
| Product Net Weight | 0.8 |
| Product type | Office |
| Products per shipping (inner) case | 1 |
| PS/2 ports quantity | 1 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| Shipping Box Depth | 27 |
| Shipping Box Height | 27 |
| Shipping Box Weight | 1 |
| Shipping Box Width | 6 |
| Summary | GIGABYTE B450M DS3H WIFI Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 1xPCIe M.2, WIFI 802.11ac, GbE LAN, USB 3.1 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 2000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A |
| Supported memory clock speed (max) | 3600 |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3466/3600 |
| Supported memory module capacities | 16GB/32GB/4GB/8GB |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported processor sockets (cooler) | Socket AM4 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Calculated Volume | 0.004374 |
| Unit Calculated Weight | 1 |
| Units per Shipping Box | 1 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| Vendor Homepage | https://www.gigabyte.com/ |
| Warranty period | 3 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11ad/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| Width | 244 |
| Windows operating systems supported | Windows 10 x64/Windows 7 x64 |
| WLAN controller model | Realtek RTL8821CE |
