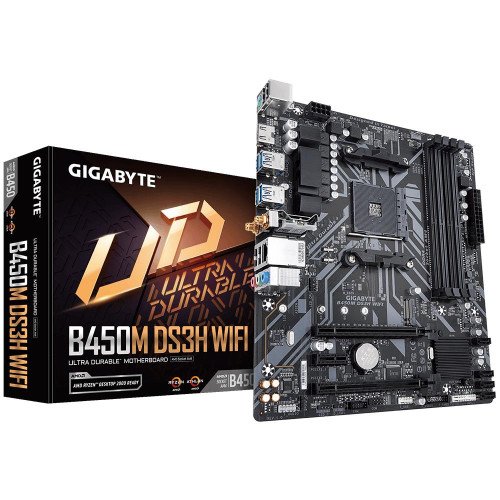

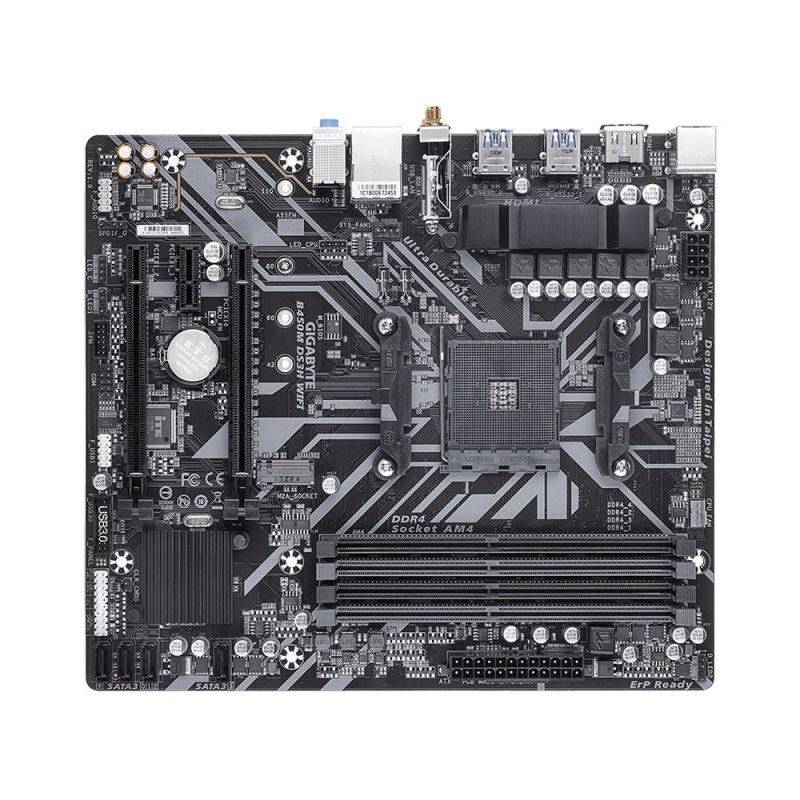

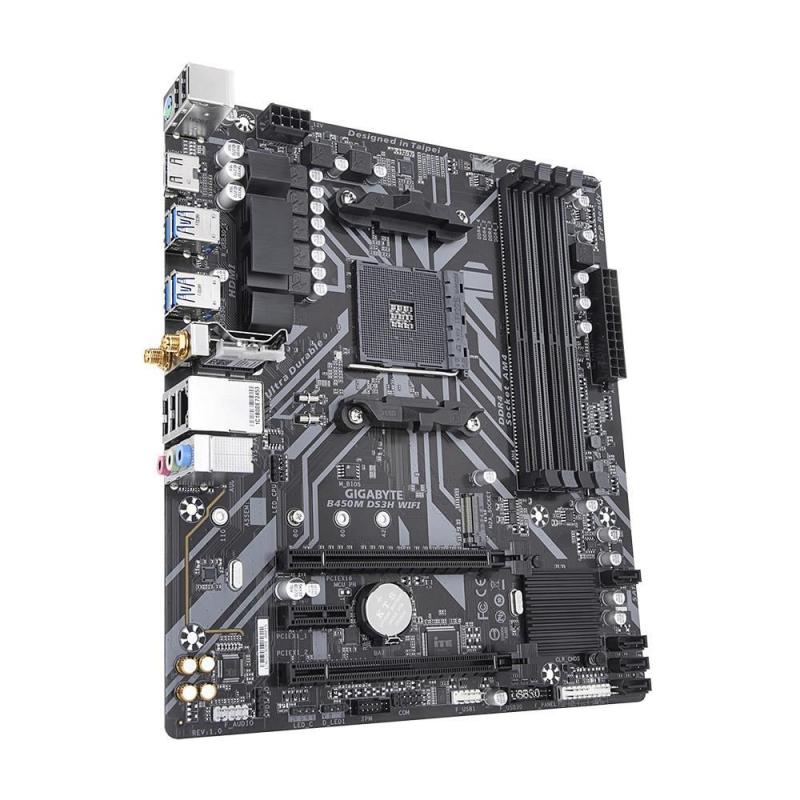

B450M DS3H WIFI (rev. 1.5)

B450M DS3H WIFI (rev. 1.5)
Нема на залиха
B450M DS3H WIFI (rev. 1.5)
  • Motherboard chipset: AMD B450
  • Motherboard form factor: micro ATX
  • Processor socket: Socket AM4
  • Supported memory types: DDR4-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 5
    • Врз основа на 0 коментари. - Напиши коментар
    5,440ден.
    • Достапност: Нема на залиха
    • Бренд: GIGABYTE
    • Шифра: 409945
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: GIGABYTE B450M DS3H WIFI Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 1xPCIe M.2, WIFI 802.11ac, GbE LAN, USB 3.1 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 2000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
    • Vendor Homepage: https://www.gigabyte.com/
    • Name: MB AMD B450 SAM4 MATX/B450M DS3H WIFI 1.5 GIGABYTE
    • Category Code: MBA
    • Model: B450M DS3H WIFI (rev. 1.5)
    • Motherboard chipset: AMD B450
    • Audio chip: Realtek ALC887
    • Product colour: Brown
    • PC health monitoring: Fan/Temperature/Voltage
    • Component for: PC
    • Motherboard form factor: micro ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: AMD
    • Power source type: ATX
    • Supported processor sockets (cooler): Socket AM4
    • Windows operating systems supported: Windows 10 x64/Windows 7 x64
    • Processor manufacturer: AMD
    • Processor socket: Socket AM4
    • Compatible processor series: AMD Ryzen 2000 Series/AMD Ryzen 3000 Series
    • Maximum number of SMP processors: 1
    • Supported processor sockets: Socket AM4
    • Maximum internal memory supported by processor: 128
    • Supported memory types: DDR4-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Supported memory clock speeds: 2133/2400/2667/2933/3200/3466/3600
    • Supported memory clock speed (max): 3600
    • Maximum internal memory: 128
    • Supported memory module capacities: 16GB/32GB/4GB/8GB
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 5
    • RAID support: Yes
    • RAID levels: 0/1/10
    • Maximum graphics card memory: 16000
    • Parallel processing technology support: Not supported
    • Maximum resolution: 4096 x 2160
    • HDCP: Yes
    • DirectX version: 12.0
    • Discrete graphics support: Yes
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • Number of SATA III connectors: 4
    • Total number of SATA connectors: 4
    • S/PDIF out connector: Yes
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • 12V power connector: Yes
    • Serial port headers: 1
    • TPM connector: Yes
    • RGB LED pin header: Yes

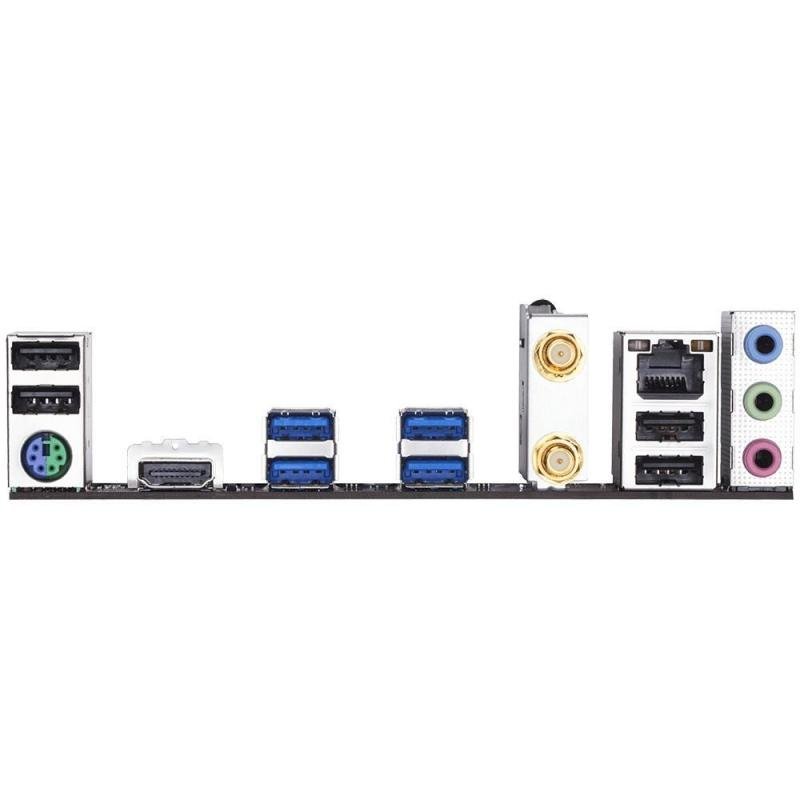

    • USB 2.0 ports quantity: 4
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • HDMI ports quantity: 1
    • HDMI version: 2.0
    • DVI-D ports quantity: 1
    • USB connector type: USB Type-A
    • Ethernet LAN: Yes
    • Ethernet interface type: Gigabit Ethernet
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
    • Wi-Fi standards: 802.11a/802.11ad/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
    • WLAN controller model: Realtek RTL8821CE
    • Bluetooth: Yes
    • Bluetooth version: 4.2
    • PCI Express x1 slots: 1
    • PCI Express x16 slots: 2
    • Number of M.2 (M) slots: 1
    • BIOS type: UEFI AMI
    • BIOS memory size: 128
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Country of origin: China
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 265
    • Number of battery cells: 1
    • Package depth: 265
    • Package height: 54
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 950
    • Battery type: CR2032
    • Width: 244
    • Depth: 215
    • Height: 35
    • Batteries included: Yes
    • Bundled software: Norton Internet Security, cFosSpeed
    • Warranty period: 3
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.004374
    • Unit Calculated Weight: 1
    Specs
    12V power connector Yes
    ACPI version 5.0
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC887
    Audio output channels 7.1
    Batteries included Yes
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Battery type CR2032
    Battery weight 3
    BIOS memory size 128
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 4.2
    Bundled software Norton Internet Security, cFosSpeed
    Category Code MBA
    Clear CMOS jumper Yes
    Compatible processor series AMD Ryzen 2000 Series/AMD Ryzen 3000 Series
    Component for PC
    Country of origin China
    CPU fan connector Yes
    Depth 215
    Description

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

    • Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
    • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
    • Intel Dual Band 802.11ac WIFI & BT 4.2
    • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
    • High Quality Audio Capacitors and Audio Noise Guard Design
    • RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
    • Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • APP Center Including EasyTune and Cloud Station Utilities
    • CEC 2019 Ready, Save Power with a Simple Click
    Desktop Management Interface (DMI) version 2.7
    DirectX version 12.0
    Discrete graphics support Yes
    DVI-D ports quantity 1
    ECC сompatibility ECC & Non-ECC
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    HDCP Yes
    HDMI ports quantity 1
    HDMI version 2.0
    Height 35
    Lithium weight per battery 0.07
    Maximum graphics card memory 16000
    Maximum internal memory 128
    Maximum internal memory supported by processor 128
    Maximum number of SMP processors 1
    Maximum resolution 4096 x 2160
    Memory channels Dual-channel
    Memory slots type DIMM
    Model B450M DS3H WIFI (rev. 1.5)
    Motherboard chipset AMD B450
    Motherboard chipset family AMD
    Motherboard form factor micro ATX
    Name MB AMD B450 SAM4 MATX/B450M DS3H WIFI 1.5 GIGABYTE
    Number of battery cells 1
    Number of HDDs supported 4
    Number of M.2 (M) slots 1
    Number of memory slots 4
    Number of SATA III connectors 4
    Number of storage drives supported 5
    Package depth 265
    Package height 54
    Package weight 950
    Package width 265
    Parallel processing technology support Not supported
    PC health monitoring Fan/Temperature/Voltage
    PCI Express x1 slots 1
    PCI Express x16 slots 2
    PictureUrl https://static.elko.cloud/ProductImages/bc88b202-9662-426f-bb0a-96f3a8f8e3ae.Jpeg
    Power source type ATX
    Processor manufacturer AMD
    Processor socket Socket AM4
    Product colour Brown
    Products per shipping (inner) case 1
    PS/2 ports quantity 1
    RAID levels 0/1/10
    RAID support Yes
    RGB LED pin header Yes
    S/PDIF out connector Yes
    Serial port headers 1
    Summary GIGABYTE B450M DS3H WIFI Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 1xPCIe M.2, WIFI 802.11ac, GbE LAN, USB 3.1 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 2000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
    Supported memory clock speed (max) 3600
    Supported memory clock speeds 2133/2400/2667/2933/3200/3466/3600
    Supported memory module capacities 16GB/32GB/4GB/8GB
    Supported memory types DDR4-SDRAM
    Supported processor sockets Socket AM4
    Supported processor sockets (cooler) Socket AM4
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    System Management BIOS (SMBIOS) version 2.7
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/bc88b202-9662-426f-bb0a-96f3a8f8e3ae.Jpeg
    Top Wi-Fi standard Wi-Fi 5 (802.11ac)
    Total number of SATA connectors 4
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.004374
    Unit Calculated Weight 1
    Units per Shipping Box 1
    USB 2.0 connectors 2
    USB 2.0 ports quantity 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB connector type USB Type-A
    Vendor Homepage https://www.gigabyte.com/
    Warranty period 3
    Wi-Fi Yes
    Wi-Fi standards 802.11a/802.11ad/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
    Width 244
    Windows operating systems supported Windows 10 x64/Windows 7 x64
    WLAN controller model Realtek RTL8821CE
