Name: MB AMD B550 SAM4 ATX/TUF GAMING B550-PRO ASUS
Brand: ASUS
SKU: 323057
Price: 13394.00 MKD
Availability: OutOfStock

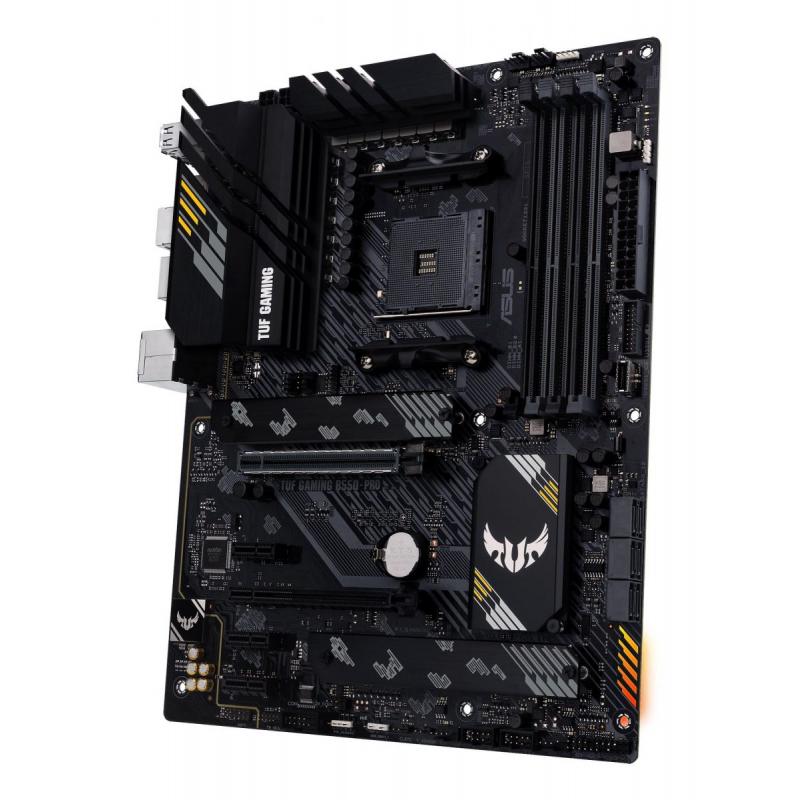

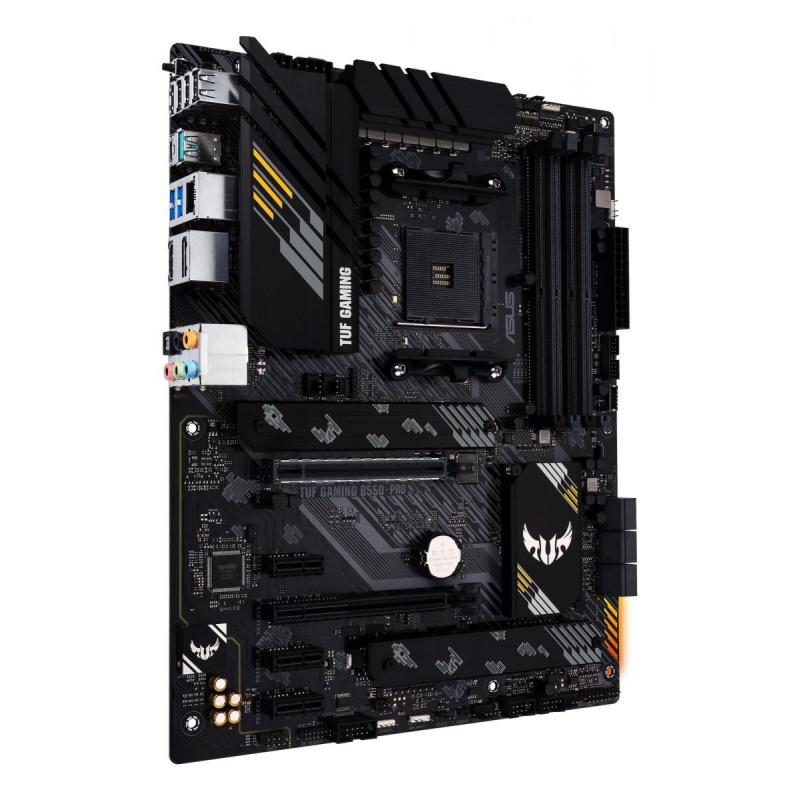

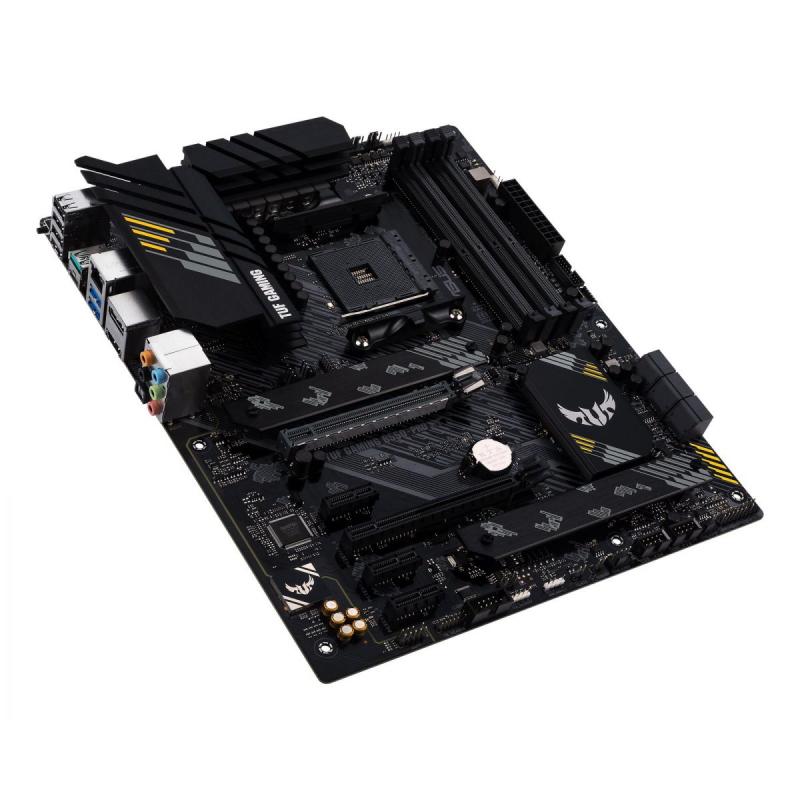

MB AMD B550 SAM4 ATX/TUF GAMING B550-PRO ASUS

MB AMD B550 SAM4 ATX/TUF GAMING B550-PRO ASUS

Motherboard chipset: AMD B550

Motherboard form factor: ATX

Processor socket: Socket AM4

Supported memory types: DDR4-SDRAM

Number of memory slots: 4

Number of storage drives supported: 8

Врз основа на 0 коментари. - Напиши коментар

13,394ден.

Достапност:
Бренд: ASUS
Шифра: 323057
Гарантен рок: 36 месеци
Достава: 13-16 дена

Количина

Во кошничка

Листа на желби Спореди

Опис
Спецификација

Specifications
ECC сompatibility	ECC
Specs
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Audio chip	Realtek ALC S1200A
Audio output channels	7.1
BIOS memory size	256
BIOS type	UEFI AMI

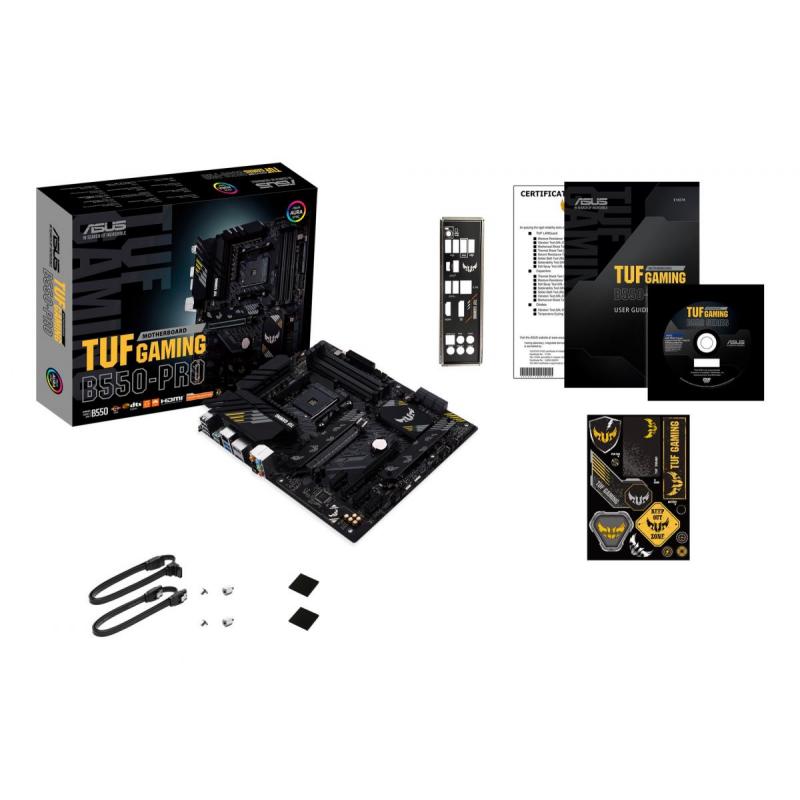

Cables included	SATA
Category Code	MBA
Clear CMOS jumper	Yes
Compatible processor series	AMD Athlon/AMD Ryzen 3000 Series
Component for	PC
CPU fan connector	Yes
Depth	244
DisplayPort version	1.2
DisplayPorts quantity	1
Drivers included	Yes
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Front panel audio connector	Yes
Harmonized System (HS) code	84733020
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	5
Height	68
LAN controller	Realtek RTL8125B
Maximum internal memory	128
Maximum resolution	3840 x 2160
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Motherboard form factor	ATX
Name	MB AMD B550 SAM4 ATX/TUF GAMING B550-PRO ASUS
Number of chassis fan connectors	3
Number of COM connectors	1
Number of M.2 (M) slots	3
Number of memory slots	4
Number of SATA III connectors	6
Number of storage drives supported	8
Parallel processing technology support	2-Way CrossFireX
PCI Express x1 (Gen 3.x) slots	3
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Peripheral (Molex) power connectors (4-pin)	1
Processor manufacturer	AMD
Processor socket	Socket AM4
Product Net Weight	1.3
Product type	Office
RAID levels	0/1/10
RGB LED pin header	Yes
S/PDIF out port	Yes
Shipping Box Depth	36.5
Shipping Box Height	36.5
Shipping Box Weight	8.55
Shipping Box Width	29
Summary	ASUS TUF GAMING B550-PRO. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Athlon, AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX, Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
Supported memory clock speeds	2133/2400/2666/2800/2933/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4333/4400/4600
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Thunderbolt headers	1
TPM connector	Yes
Unbuffered memory	Yes
Unit Calculated Volume	0.007727
Unit Calculated Weight	1.71
Units per Shipping Box	5
USB 2.0 connectors	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB connector type	USB Type-A/USB Type-C
Vendor Homepage	https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-B550-PRO/
Wake-on-LAN ready	Yes
Weight	1008
Width	305
Windows operating systems supported	Windows 10 x64
