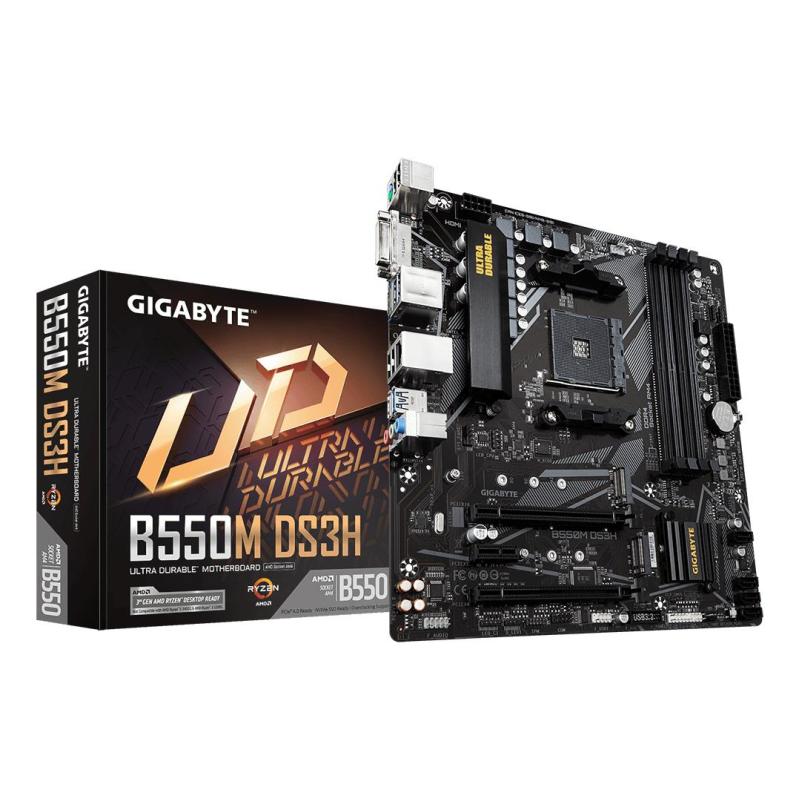

B550M DS3H (rev. 1.7)

B550M DS3H (rev. 1.7)
Нема на залиха
B550M DS3H (rev. 1.7)
  • Motherboard chipset: AMD B550
  • Motherboard form factor: micro ATX
  • Processor socket: Socket AM4
  • Supported memory types: DDR4-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 6
    • Врз основа на 0 коментари. - Напиши коментар
    5,850ден.
    • Достапност: Нема на залиха
    • Бренд: GIGABYTE
    • Шифра: 404034
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: GIGABYTE B550M DS3H Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
    • Vendor Homepage: https://www.gigabyte.com/
    • Name: MB AMD B550 SAM4 MATX/B550M DS3H 1.7 GIGABYTE
    • Category Code: MBA
    • Model: B550M DS3H (rev. 1.7)
    • Motherboard chipset: AMD B550
    • Audio chip: Realtek ALC897
    • Product colour: Brown
    • PC health monitoring: Fan/Temperature/Voltage
    • Component for: PC
    • Motherboard form factor: micro ATX
    • Audio output channels: 7.1
    • Cooling type: Passive
    • Motherboard chipset family: AMD
    • Power source type: ATX
    • Windows operating systems supported: Windows 10 x64/Windows 11 x64
    • Processor manufacturer: AMD
    • Processor socket: Socket AM4
    • Compatible processor series: AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
    • Maximum number of SMP processors: 1
    • Supported processor sockets: Socket AM4
    • Supported memory types: DDR4-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Supported memory clock speeds: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
    • Supported memory clock speed (max): 4733
    • Maximum internal memory: 128
    • Unbuffered memory: Yes
    • Maximum internal memory per slot: 32
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 6
    • RAID support: Yes
    • RAID levels: 0/1/10
    • Parallel processing technology support: Not supported
    • Maximum resolution: 4096 x 2160
    • HDCP: Yes
    • DirectX version: 12.0
    • USB 2.0 connectors: 1
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of CPU fan connectors: 1
    • Number of chassis fan connectors: 2
    • EPS power connector (8-pin): Yes
    • Number of EPS power connectors (8-pin): 1
    • 12V power connector: Yes
    • Number of water pump connectors: 2
    • Serial port headers: 1
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • Number of RGB LED pin headers: 5
    • USB 2.0 ports quantity: 4
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • HDMI ports quantity: 1
    • HDMI version: 2.1
    • DVI-D ports quantity: 1
    • Headphone outputs: 1
    • Line-in: Yes
    • Microphone in: Yes
    • Ethernet LAN: Yes
    • Ethernet interface type: Gigabit Ethernet
    • LAN controller: Realtek RTL8111H
    • PCI Express x1 (Gen 3.x) slots: 1
    • PCI Express x16 (Gen 3.x) slots: 1
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 2
    • 1st M.2 largest key size: 22110
    • 1st M.2 highest PCI Express generation: 4.0
    • 2nd M.2 largest key size: 2280
    • 2nd M.2 highest PCI Express generation: 3.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 128
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Country of origin: China
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 265
    • Number of battery cells: 1
    • Package depth: 265
    • Package height: 54
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 927
    • Battery type: CR2032
    • Harmonized System (HS) code: 84733020
    • Width: 244
    • Depth: 244
    • Height: 35
    • Batteries included: Yes
    • Screws included: Yes
    • Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
    • Weight: 630
    • Warranty period: 3
    • Units per Shipping Box: 10
    • Unit Calculated Volume: 0.004794
    • Unit Calculated Weight: 1
    Specs
    12V power connector Yes
    1st M.2 highest PCI Express generation 4.0
    1st M.2 largest key size 22110
    2nd M.2 highest PCI Express generation 3.0
    2nd M.2 largest key size 2280
    ACPI version 5.0
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC897
    Audio output channels 7.1
    Batteries included Yes
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Battery type CR2032
    Battery weight 3
    BIOS memory size 128
    BIOS type UEFI AMI
    Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
    Category Code MBA
    Clear CMOS jumper Yes
    Compatible processor series AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
    Component for PC
    Cooling type Passive
    Country of origin China
    CPU fan connector Yes
    Depth 244
    Description

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

    • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
    • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
    • Ultra Durable PCIe 4.0 Ready x16 Slot
    • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
    • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
    • Realtek GbE LAN with Bandwidth Management
    • Rear HDMI & DVI Support
    • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
    • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
    • Anti-Sulfur Resistors Design
    Desktop Management Interface (DMI) version 2.7
    DirectX version 12.0
    DVI-D ports quantity 1
    ECC сompatibility ECC & Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    Harmonized System (HS) code 84733020
    HDCP Yes
    HDMI ports quantity 1
    HDMI version 2.1
    Headphone outputs 1
    Height 35
    LAN controller Realtek RTL8111H
    Line-in Yes
    Lithium weight per battery 0.07
    Maximum internal memory 128
    Maximum internal memory per slot 32
    Maximum number of SMP processors 1
    Maximum resolution 4096 x 2160
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Model B550M DS3H (rev. 1.7)
    Motherboard chipset AMD B550
    Motherboard chipset family AMD
    Motherboard form factor micro ATX
    Name MB AMD B550 SAM4 MATX/B550M DS3H 1.7 GIGABYTE
    Number of battery cells 1
    Number of chassis fan connectors 2
    Number of CPU fan connectors 1
    Number of EPS power connectors (8-pin) 1
    Number of HDDs supported 4
    Number of M.2 (M) slots 2
    Number of memory slots 4
    Number of RGB LED pin headers 5
    Number of SATA III connectors 4
    Number of storage drives supported 6
    Number of water pump connectors 2
    Package depth 265
    Package height 54
    Package weight 927
    Package width 265
    Parallel processing technology support Not supported
    PC health monitoring Fan/Temperature/Voltage
    PCI Express x1 (Gen 3.x) slots 1
    PCI Express x16 (Gen 3.x) slots 1
    PCI Express x16 (Gen 4.x) slots 1
    PictureUrl https://static.elko.cloud/ProductImages/8f8e5e2f-e674-4bf0-8f80-9733356d0714.Jpeg
    Power source type ATX
    Processor manufacturer AMD
    Processor socket Socket AM4
    Product colour Brown
    Products per shipping (inner) case 1
    PS/2 ports quantity 1
    RAID levels 0/1/10
    RAID support Yes
    RGB LED pin header Yes
    Screws included Yes
    Serial port headers 1
    Summary GIGABYTE B550M DS3H Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
    Supported memory clock speed (max) 4733
    Supported memory clock speeds 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
    Supported memory types DDR4-SDRAM
    Supported processor sockets Socket AM4
    Supported storage drive interfaces SATA III
    Supported storage drive types HDD & SSD
    System Management BIOS (SMBIOS) version 2.7
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/8f8e5e2f-e674-4bf0-8f80-9733356d0714.Jpeg
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.004794
    Unit Calculated Weight 1
    Units per Shipping Box 10
    USB 2.0 connectors 1
    USB 2.0 ports quantity 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    Vendor Homepage https://www.gigabyte.com/
    Warranty period 3
    Weight 630
    Width 244
    Windows operating systems supported Windows 10 x64/Windows 11 x64
