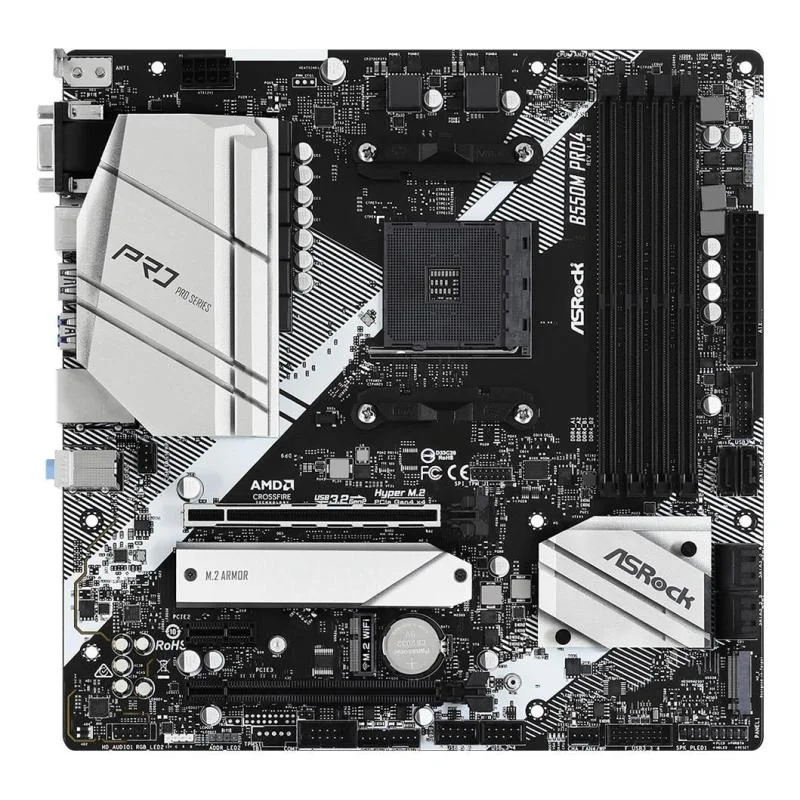

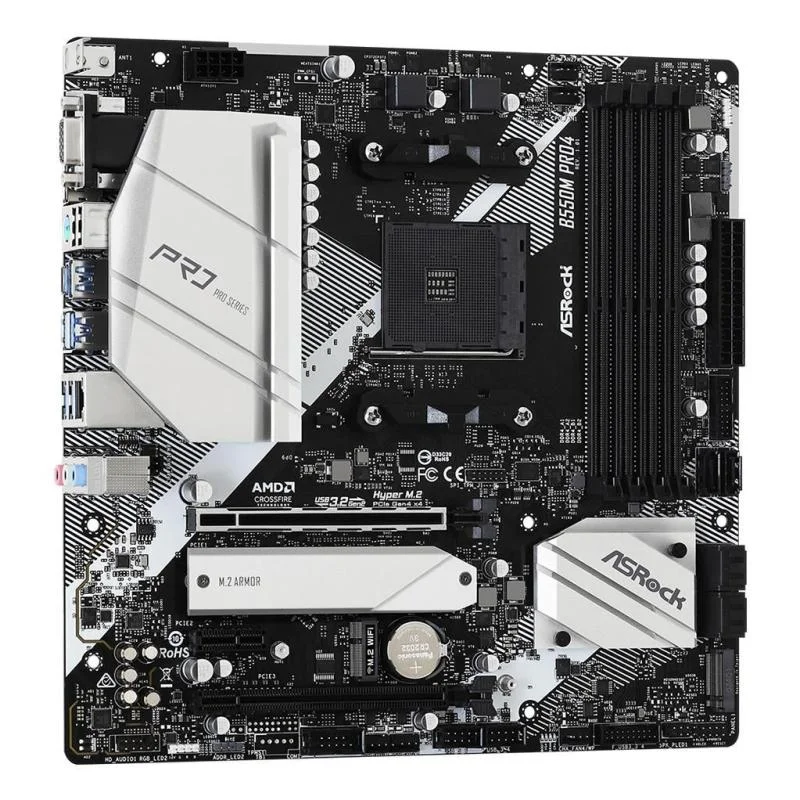

MB AMD B550 SAM4 MATX/B550M PRO4 ASROCK
7,109ден.
- Достапност:
- Бренд: ASROCK
- Шифра: 305223
- Гарантен рок: 24 месеци
- Достава: 13-16 дена
1
| Specifications | |
| ECC сompatibility | ECC & Non-ECC |
| Unit Depth | 6 |
| Unit Height | 26 |
| Unit Width | 28 |
| Specs | |
| 12V power connector | Yes |
| ACPI version | 5.1 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 |
| BIOS memory size | 256 |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Category Code | MBA |
| Certification | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Compatible processor series | AMD Ryzen 3000 Series |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 244 |
| DirectX version | 12.0 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Harmonized System (HS) code | 84733020 |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Height | 70 |
| LAN controller | Realtek RTL8111H |
| Maximum internal memory | 128 |
| Maximum number of SMP processors | 1 |
| Maximum resolution | 5120 x 2880 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Name | MB AMD B550 SAM4 MATX/B550M PRO4 ASROCK |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of displays supported | 3 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA II connectors | 6 |
| Parallel processing technology support | CrossFireX/Quad-GPU CrossFireX |
| PC health monitoring | CPU/Fan/Temperature/Voltage |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Product Net Weight | 1.1 |
| Product type | Office |
| PS/2 ports quantity | 1 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Shipping Box Depth | 64 |
| Shipping Box Height | 54 |
| Shipping Box Weight | 27.8 |
| Shipping Box Width | 29 |
| Summary | Asrock B550M Pro4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX, Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H |
| Supported memory clock speed (max) | 4733 |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 |
| Supported memory module capacities | 16GB/32GB/4GB/8GB |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.3 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Calculated Volume | 0.005011 |
| Unit Calculated Weight | 1.39 |
| Units per Shipping Box | 20 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Vendor Homepage | https://www.asrock.com/mb/AMD/B550M%20Pro4/#Overview |
| VGA (D-Sub) ports quantity | 1 |
| Wake-on-LAN ready | Yes |
| Weight | 465 |
| Width | 244 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
