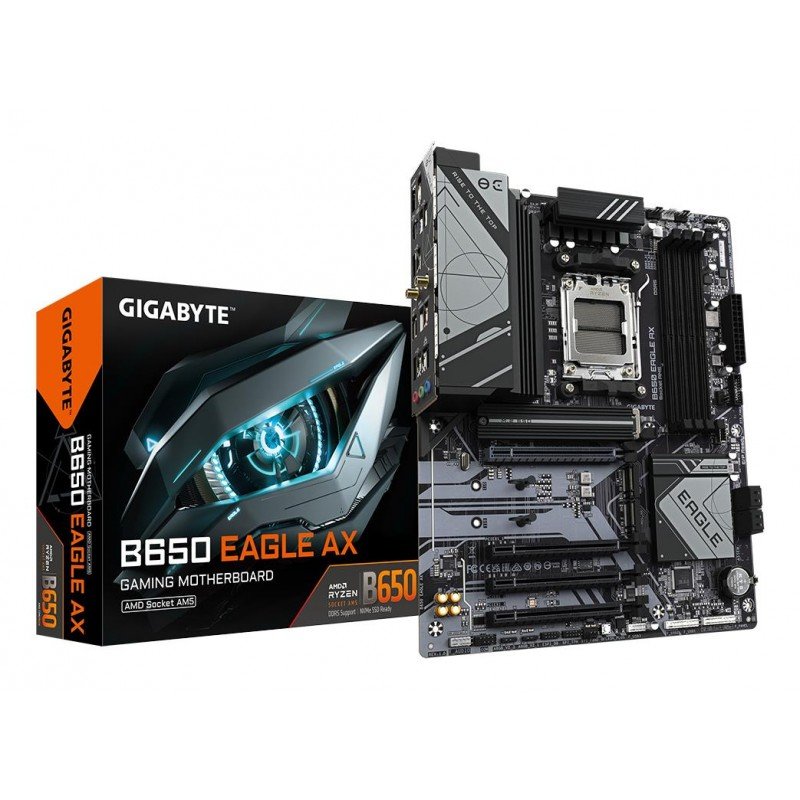

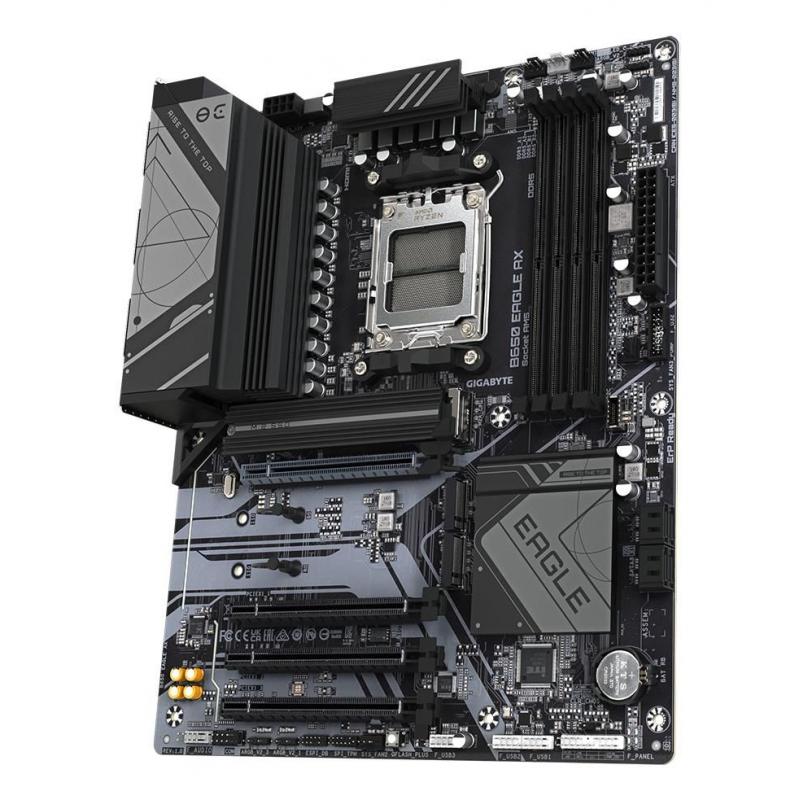

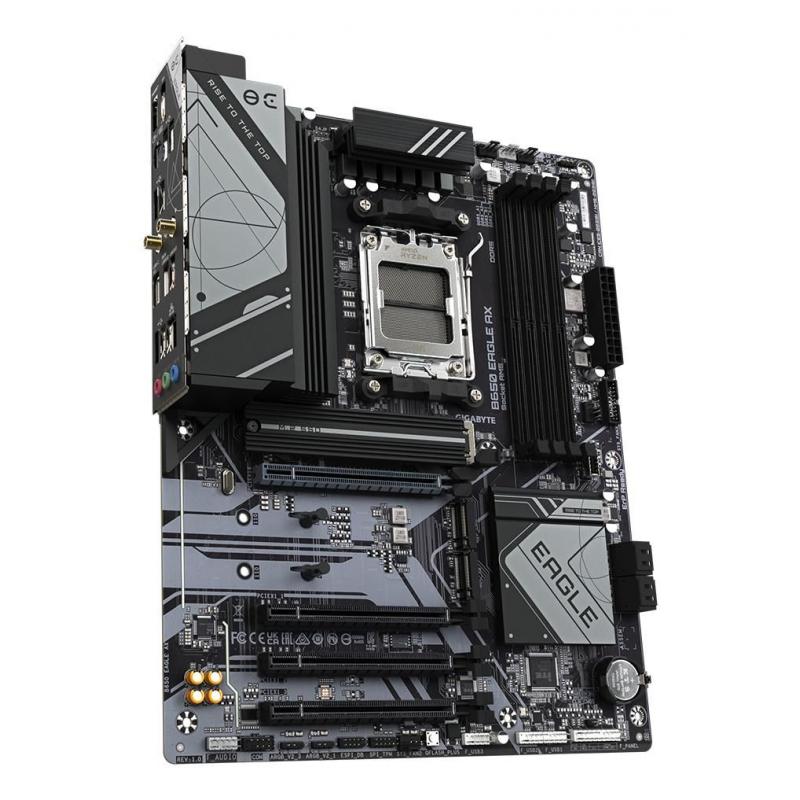

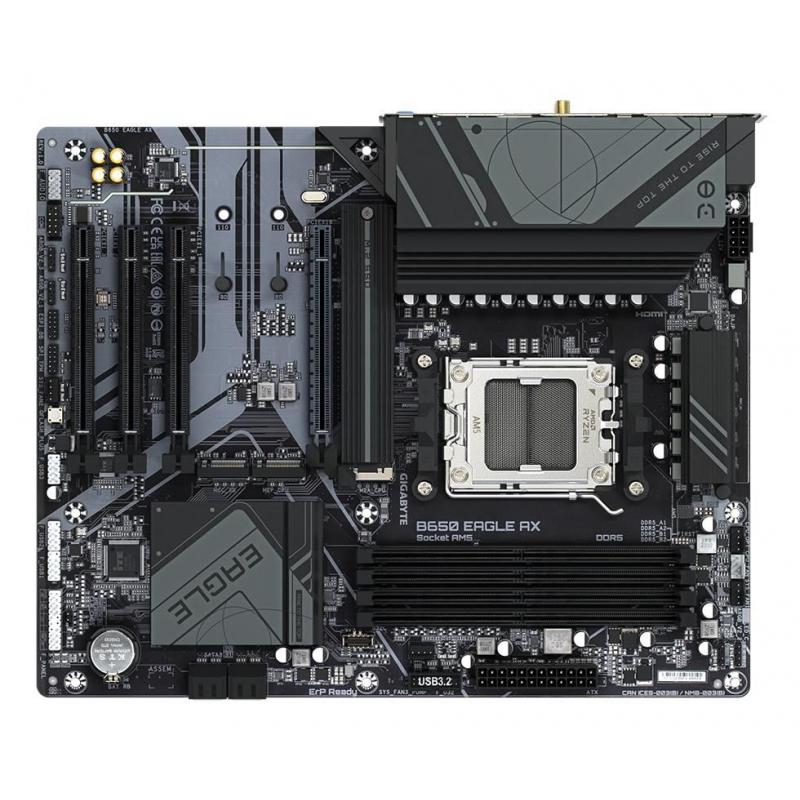

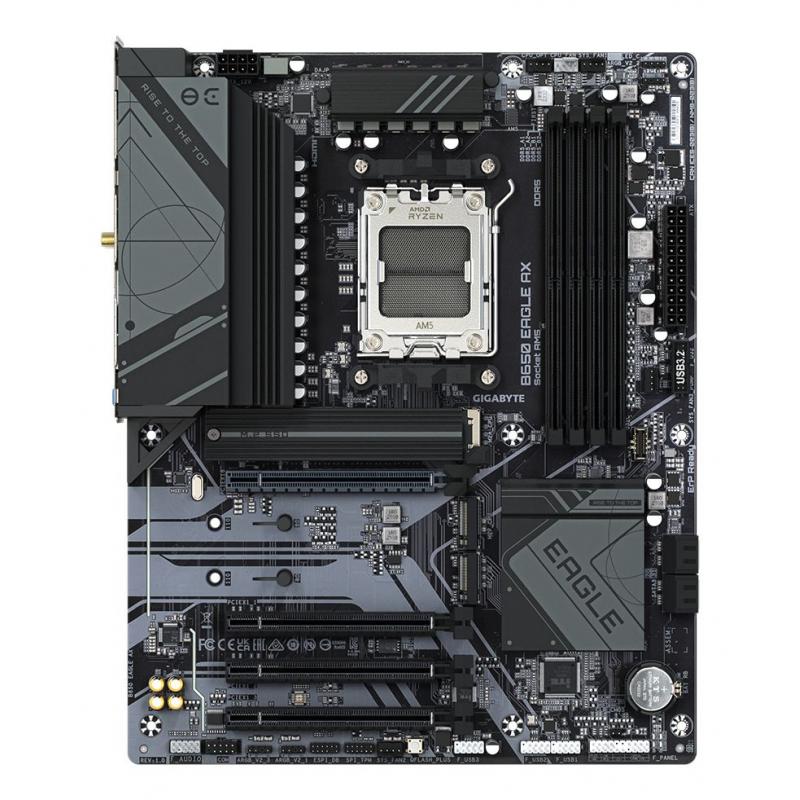

MB AMD B650 SAM5 ATX/B650 EAGLE AX 1.2 GIGABYTE

MB AMD B650 SAM5 ATX/B650 EAGLE AX 1.2 GIGABYTE
MB AMD B650 SAM5 ATX/B650 EAGLE AX 1.2 GIGABYTE
  • Motherboard chipset: AMD B650
  • Motherboard form factor: ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 7
    • Врз основа на 0 коментари. - Напиши коментар
    8,935ден.
    • Достапност: Има залиха
    • Бренд: GIGABYTE
    • Шифра: 453819
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: GIGABYTE B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
    • Vendor Homepage: https://www.gigabyte.com/
    • Name: MB AMD B650 SAM5 ATX/B650 EAGLE AX 1.2 GIGABYTE
    • Category Code: MBA
    • Motherboard chipset: AMD B650
    • Audio chip: Realtek ALC897
    • Product colour: Brown
    • PC health monitoring: Fan/Temperature/Voltage/Water cooling
    • Component for: PC
    • Motherboard form factor: ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: AMD
    • Power source type: ATX
    • Windows operating systems supported: Windows 10 x64/Windows 11 x64
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    • Supported processor sockets: Socket AM5
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: Non-ECC
    • Supported memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600
    • Supported memory clock speed (max): 7600
    • Maximum internal memory: 256
    • Unbuffered memory: Yes
    • Maximum internal memory per slot: 64
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 7
    • RAID support: Yes
    • RAID levels: 0/1/10
    • Parallel processing technology support: Not supported
    • Maximum resolution: 4096 x 2160
    • HDCP: Yes
    • DirectX version: 12.0
    • Discrete graphics support: Yes
    • USB 2.0 connectors: 3
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of CPU fan connectors: 2
    • Number of chassis fan connectors: 3
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • Number of water pump connectors: 2
    • Serial port headers: 1
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • Number of RGB LED pin headers: 4

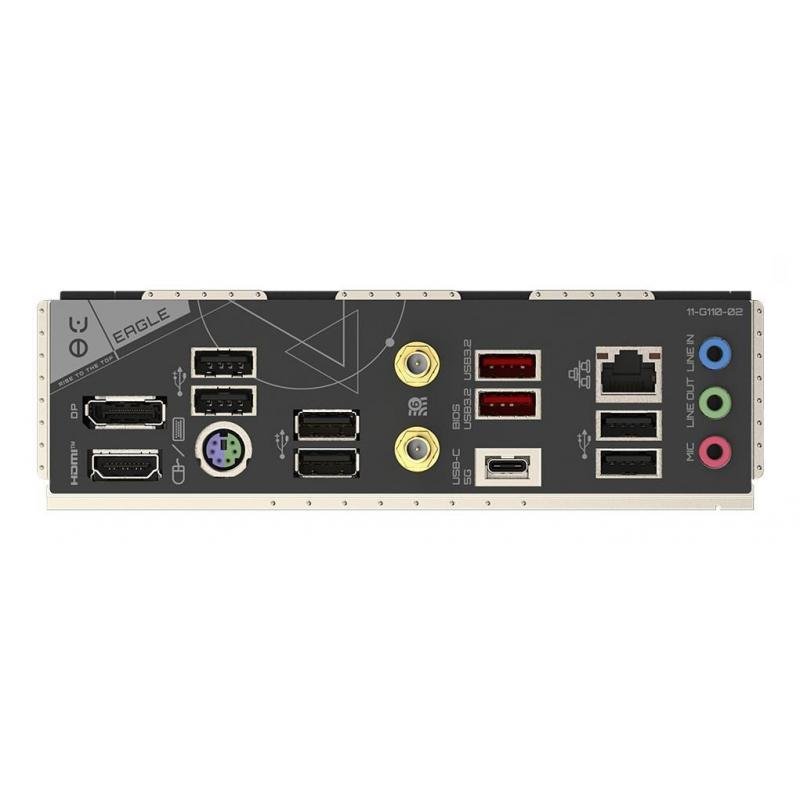

    • USB 2.0 ports quantity: 6
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • HDMI ports quantity: 1
    • HDMI version: 2.1
    • DisplayPorts quantity: 1
    • DisplayPort version: 1.4
    • Headphone outputs: 1
    • Line-in: Yes
    • Microphone in: Yes
    • WiFi-AP antenna jack: 2
    • Ethernet LAN: Yes
    • Ethernet interface type: Gigabit Ethernet
    • LAN controller: Realtek RTL8111H
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
    • Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
    • WLAN controller model: Realtek RTL8852CE
    • Bluetooth: Yes
    • Bluetooth version: 5.3
    • PCI Express x16 (Gen 3.x) slots: 3
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 3
    • 1st M.2 largest key size: 25110
    • 1st M.2 highest PCI Express generation: 5.0
    • 2nd M.2 largest key size: 22110
    • 2nd M.2 highest PCI Express generation: 4.0
    • 3rd M.2 largest key size: 22110
    • 3rd M.2 highest PCI Express generation: 4.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 256
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Country of origin: China
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 335
    • Number of battery cells: 1
    • Package depth: 270
    • Package height: 80
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 1943
    • Battery type: CR2032
    • Width: 305
    • Depth: 244
    • Height: 35
    • Antenna included: Yes
    • Batteries included: Yes
    • Screws included: Yes
    • Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
    • Warranty period: 3
    • Units per Pallet: 0
    • Units per Shipping Box: 8
    • Unit Calculated Volume: 0.009973
    • Unit Calculated Weight: 1.92
    Specs
    12V power connector Yes
    1st M.2 highest PCI Express generation 5.0
    1st M.2 largest key size 25110
    2nd M.2 highest PCI Express generation 4.0
    2nd M.2 largest key size 22110
    3rd M.2 highest PCI Express generation 4.0
    3rd M.2 largest key size 22110
    ACPI version 5.0
    Antenna included Yes
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC897
    Audio output channels 7.1
    Batteries included Yes
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Battery type CR2032
    Battery weight 3
    BIOS memory size 256
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.3
    Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
    Category Code MBA
    Clear CMOS jumper Yes
    Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Component for PC
    Country of origin China
    CPU fan connector Yes
    Depth 244
    Description

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

    • AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
    • Unparalleled Performance：12+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
    • SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
    • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
    • EZ-Latch：PCIe x16 Slot with Quick Release Design
    • Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN
    • Extended Connectivity：DP, HDMI, Rear USB 10Gb/s
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
    Desktop Management Interface (DMI) version 2.7
    DirectX version 12.0
    Discrete graphics support Yes
    DisplayPort version 1.4
    DisplayPorts quantity 1
    ECC сompatibility Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    HDCP Yes
    HDMI ports quantity 1
    HDMI version 2.1
    Headphone outputs 1
    Height 35
    LAN controller Realtek RTL8111H
    Line-in Yes
    Lithium weight per battery 0.07
    Maximum internal memory 256
    Maximum internal memory per slot 64
    Maximum resolution 4096 x 2160
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Motherboard chipset AMD B650
    Motherboard chipset family AMD
    Motherboard form factor ATX
    Name MB AMD B650 SAM5 ATX/B650 EAGLE AX 1.2 GIGABYTE
    Number of battery cells 1
    Number of chassis fan connectors 3
    Number of CPU fan connectors 2
    Number of HDDs supported 4
    Number of M.2 (M) slots 3
    Number of memory slots 4
    Number of RGB LED pin headers 4
    Number of SATA III connectors 4
    Number of storage drives supported 7
    Number of water pump connectors 2
    Package depth 270
    Package height 80
    Package weight 1943
    Package width 335
    Parallel processing technology support Not supported
    PC health monitoring Fan/Temperature/Voltage/Water cooling
    PCI Express x16 (Gen 3.x) slots 3
    PCI Express x16 (Gen 4.x) slots 1
    PictureUrl https://static.elko.cloud/ProductImages/af93f202-2b0d-41ea-b51c-014ea7c3b488.Jpeg
    Power source type ATX
    Processor manufacturer AMD
    Processor socket Socket AM5
    Product colour Brown
    Products per shipping (inner) case 1
    PS/2 ports quantity 1
    RAID levels 0/1/10
    RAID support Yes
    RGB LED pin header Yes
    Screws included Yes
    Serial port headers 1
    Summary GIGABYTE B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
    Supported memory clock speed (max) 7600
    Supported memory clock speeds 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600
    Supported memory types DDR5-SDRAM
    Supported processor sockets Socket AM5
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    System Management BIOS (SMBIOS) version 2.7
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/af93f202-2b0d-41ea-b51c-014ea7c3b488.Jpeg
    Top Wi-Fi standard Wi-Fi 6E (802.11ax)
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.009973
    Unit Calculated Weight 1.92
    Units per Pallet 0
    Units per Shipping Box 8
    USB 2.0 connectors 3
    USB 2.0 ports quantity 6
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
    Vendor Homepage https://www.gigabyte.com/
    Warranty period 3
    Wi-Fi Yes
    Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
    Width 305
    WiFi-AP antenna jack 2
    Windows operating systems supported Windows 10 x64/Windows 11 x64
    WLAN controller model Realtek RTL8852CE
