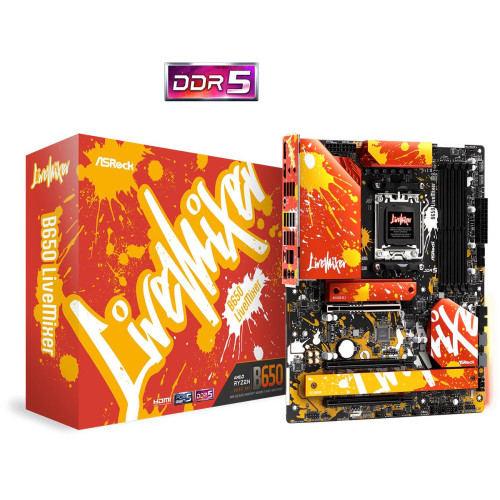

B650 LIVEMIXER

Technical Specifications

• Description:

  LIVE MIX LIFE MAX
  LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.

  Broadcasting
  Users will never run short. Hook up every peripheral, whether it’s mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.

  Content Creation
  Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.
  - Content Creator
  - Video Editing
  - Photo Editor
  - Game Development

  Multiple Streaming Devices
  We tested many video capture devices with different interfaces in order to provide the most stable system for content creators.

  • Supports AMD Ryzen 7000 Series Processors
  • 14+2+1 Phase Power Design, SPS
  • 4 x DDR5 DIMMs, supports up to 6400+(OC)
  • 3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4)
  • 2 Hyper M.2 (PCIe Gen4x4)
  • 2 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front)
  • 1 USB 3.2 Gen2 Type-C (Rear)
  • 1 USB 3.2 Gen2 Type-A (Rear)
  • 8 USB 3.2 Gen1 (4 Rear, 4 Front)
  • 12 USB 2.0 (8 Rear, 4 Front)
  • Realtek 2.5G LAN

• Summary: Asrock B650 LiveMixer. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
• Vendor Homepage: https://www.asrock.com/mb/AMD/B650%20LiveMixer/Specification.asp#Specification
• Name: MB AMD B650 SAM5 ATX/B650 LIVEMIXER ASROCK
• Category Code: MBA
• Model: B650 LIVEMIXER
• Motherboard chipset: AMD B650
• Audio chip: Realtek ALC897
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series
• Maximum number of SMP processors: 1
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Maximum internal memory: 128
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of storage drives supported: 5
• RAID support: Yes
• RAID levels: 0/1/10
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 3
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Thunderbolt headers: 1
• TPM connector: Yes
• RGB LED pin header: Yes
• USB 2.0 ports quantity: 8
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone outputs: 1
• Microphone in: Yes
• S/PDIF out port: Yes
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• LAN controller: Dragon RTL8125BG
• Wi-Fi: No
• PCI Express x16 (Gen 4.x) slots: 3
• Number of M.2 (M) slots: 1
• BIOS type: UEFI
• BIOS memory size: 256
• Width: 305
• Depth: 244
• Units per Shipping Box: 5
• Unit Calculated Volume: 0.014
• Unit Calculated Weight: 2.52
