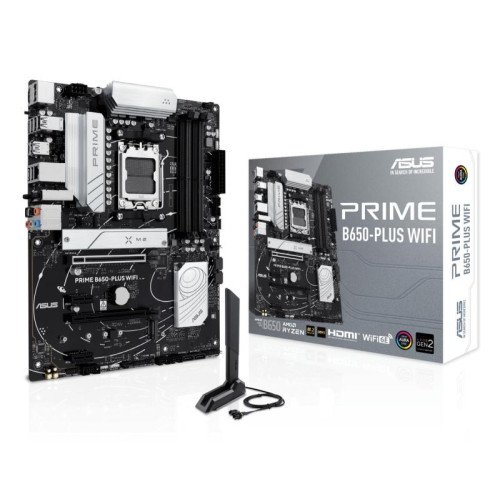

PRIME B650-PLUS WIFI

Technical Specifications

• Summary: ASUS PRIME B650-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
• Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/prime/prime-b650-plus-wifi/
• Name: MB AMD B650 SAM5 ATX/PRIME B650-PLUS WIFI ASUS
• Category Code: MBA
• Model: PRIME B650-PLUS WIFI
• Motherboard chipset: AMD B650
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10 x64/Windows 11
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
• Supported processor sockets: Socket AM5
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800
• Supported memory clock speed (max): 7600
• Maximum internal memory: 192
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 6
• RAID support: Yes
• RAID levels: 0/1/10
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 2
• Number of chassis fan connectors: 3
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• Number of COM connectors: 1
• Thunderbolt headers: 1
• TPM connector: Yes
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 1
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• DisplayPorts quantity: 1
• S/PDIF out port: Yes
• WiFi-AP antenna jack: 1
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Bluetooth: Yes
• Bluetooth version: 5.3
• PCI Express x1 (Gen 4.x) slots: 2
• PCI Express x16 (Gen 4.x) slots: 2
• Number of M.2 (M) slots: 2
• 1st M.2 largest key size: 22110
• 1st M.2 highest PCI Express generation: 5.0
• 2nd M.2 largest key size: 22110
• 2nd M.2 highest PCI Express generation: 4.0
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Package width: 338
• Package depth: 373
• Package height: 68
• Package weight: 1350
• Width: 305
• Depth: 244
• Antenna included: Yes
• Cables included: SATA
• Screws included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.006615
• Unit Calculated Weight: 1.9
