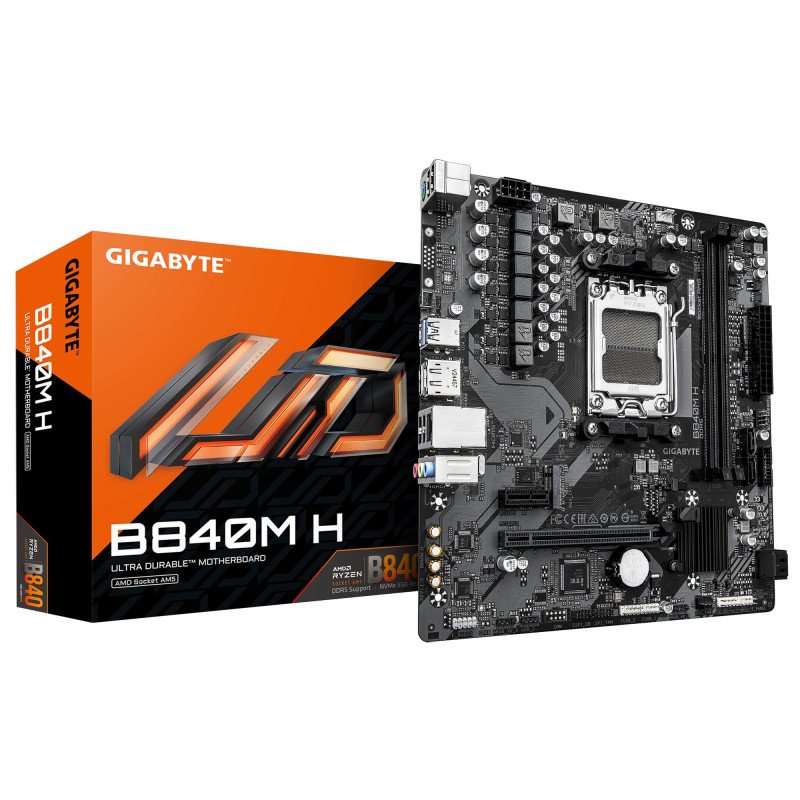

MB AMD B840 SAM5 MATX/B840M H GIGABYTE

MB AMD B840 SAM5 MATX/B840M H GIGABYTE
MB AMD B840 SAM5 MATX/B840M H GIGABYTE
  • Motherboard chipset: AMD B840
  • Motherboard form factor: micro ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 2
  • Number of storage drives supported: 5
    • Врз основа на 0 коментари. - Напиши коментар
    6,146ден.
    • Достапност: Има залиха
    • Бренд: GIGABYTE
    • Шифра: 455466
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: GIGABYTE B840M H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
    • Vendor Homepage: www.gigabyte.com/Motherboard/B840M-H
    • Name: MB AMD B840 SAM5 MATX/B840M H GIGABYTE
    • Category Code: MBA
    • Motherboard chipset: AMD B840
    • Audio chip: Realtek ALC897
    • Product colour: Dark brown
    • PC health monitoring: Fan/Temperature/Voltage/Water cooling
    • Component for: PC
    • Motherboard form factor: micro ATX
    • Audio output channels: 7.1
    • Cooling type: Passive
    • Motherboard chipset family: AMD
    • Power source type: ATX
    • Windows operating systems supported: Windows 10 x64/Windows 11 x64
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    • Supported processor sockets: Socket AM5
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 2
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: Non-ECC
    • Supported memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200
    • Supported memory clock speed (max): 7200
    • Maximum internal memory: 128
    • Unbuffered memory: Yes
    • Maximum internal memory per slot: 64
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 5
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • Maximum resolution: 4096 x 2160
    • HDCP: Yes
    • HDCP version: 2.3
    • DirectX version: 12.0
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of CPU fan connectors: 1
    • Number of chassis fan connectors: 2
    • EPS power connector (8-pin): Yes
    • Number of EPS power connectors (8-pin): 1
    • 12V power connector: Yes
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • Number of RGB LED pin headers: 3
    • USB 2.0 ports quantity: 4
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • HDMI ports quantity: 1
    • HDMI version: 2.1
    • DisplayPorts quantity: 1
    • DisplayPort version: 1.4
    • Headphone outputs: 1
    • Line-in: Yes
    • Microphone in: Yes
    • Ethernet LAN: Yes
    • Ethernet interface type: Gigabit Ethernet
    • LAN controller: Realtek RTL8111H
    • PCI Express x1 (Gen 3.x) slots: 1
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 1
    • 1st M.2 largest key size: 2580
    • 1st M.2 highest PCI Express generation: 4.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 256
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • BIOS flashback button: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 265
    • Number of battery cells: 1
    • Package depth: 265
    • Package height: 54
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 941
    • Battery type: CR2032
    • Width: 230
    • Depth: 225
    • Height: 35
    • Batteries included: Yes
    • Screws included: Yes
    • Bundled software: Norton Internet Security (OEM version)
    • Weight: 880
    • Warranty period: 3
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.004536
    • Unit Calculated Weight: 1
    Specifications
    BIOS flashback button Yes
    Specs
    12V power connector Yes
    1st M.2 highest PCI Express generation 4.0
    1st M.2 largest key size 2580
    ACPI version 5.0
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC897
    Audio output channels 7.1
    Batteries included Yes
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Battery type CR2032
    Battery weight 3
    BIOS memory size 256
    BIOS type UEFI AMI
    Bundled software Norton® Internet Security (OEM version)
    Category Code MBA
    Clear CMOS jumper Yes
    Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Component for PC
    Cooling type Passive
    CPU fan connector Yes
    Depth 225
    Description

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

    • X3D Turbo Mode to unleash new era gaming performance
    • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
    • Digital 5+2+2 phases VRM solution
    • Dual Channel DDR5: 2*DIMMs with AMD EXPO Memory Module Support
    • EZ-Latch: PCIe x16 Slot with Quick Release Design
    • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
    • Ultra-Fast Storage: 1* PCIe 4.0 x4 M.2 slot
    • Fast Networking: GbE LAN
    Desktop Management Interface (DMI) version 2.7
    DirectX version 12.0
    DisplayPort version 1.4
    DisplayPorts quantity 1
    ECC сompatibility Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    HDCP Yes
    HDCP version 2.3
    HDMI ports quantity 1
    HDMI version 2.1
    Headphone outputs 1
    Height 35
    LAN controller Realtek RTL8111H
    Line-in Yes
    Lithium weight per battery 0.07
    Maximum internal memory 128
    Maximum internal memory per slot 64
    Maximum resolution 4096 x 2160
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Motherboard chipset AMD B840
    Motherboard chipset family AMD
    Motherboard form factor micro ATX
    Name MB AMD B840 SAM5 MATX/B840M H GIGABYTE
    Number of battery cells 1
    Number of chassis fan connectors 2
    Number of CPU fan connectors 1
    Number of EPS power connectors (8-pin) 1
    Number of HDDs supported 4
    Number of M.2 (M) slots 1
    Number of memory slots 2
    Number of RGB LED pin headers 3
    Number of SATA III connectors 4
    Number of storage drives supported 5
    Package depth 265
    Package height 54
    Package weight 941
    Package width 265
    Parallel processing technology support Not supported
    PC health monitoring Fan/Temperature/Voltage/Water cooling
    PCI Express x1 (Gen 3.x) slots 1
    PCI Express x16 (Gen 4.x) slots 1
    PictureUrl https://static.elko.cloud/ProductImages/6e7dde3f-01b1-4d1d-9018-aad25056c6ed.Jpeg
    Power source type ATX
    Processor manufacturer AMD
    Processor socket Socket AM5
    Product colour Dark brown
    Products per shipping (inner) case 1
    PS/2 ports quantity 1
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    Screws included Yes
    Summary GIGABYTE B840M H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
    Supported memory clock speed (max) 7200
    Supported memory clock speeds 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200
    Supported memory types DDR5-SDRAM
    Supported processor sockets Socket AM5
    Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
    Supported storage drive types HDD & SSD
    System Management BIOS (SMBIOS) version 2.7
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/6e7dde3f-01b1-4d1d-9018-aad25056c6ed.Jpeg
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.004536
    Unit Calculated Weight 1
    Units per Pallet 0
    Units per Shipping Box 1
    USB 2.0 connectors 2
    USB 2.0 ports quantity 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
    Vendor Homepage www.gigabyte.com/Motherboard/B840M-H
    Warranty period 3
    Weight 880
    Width 230
    Windows operating systems supported Windows 10 x64/Windows 11 x64
