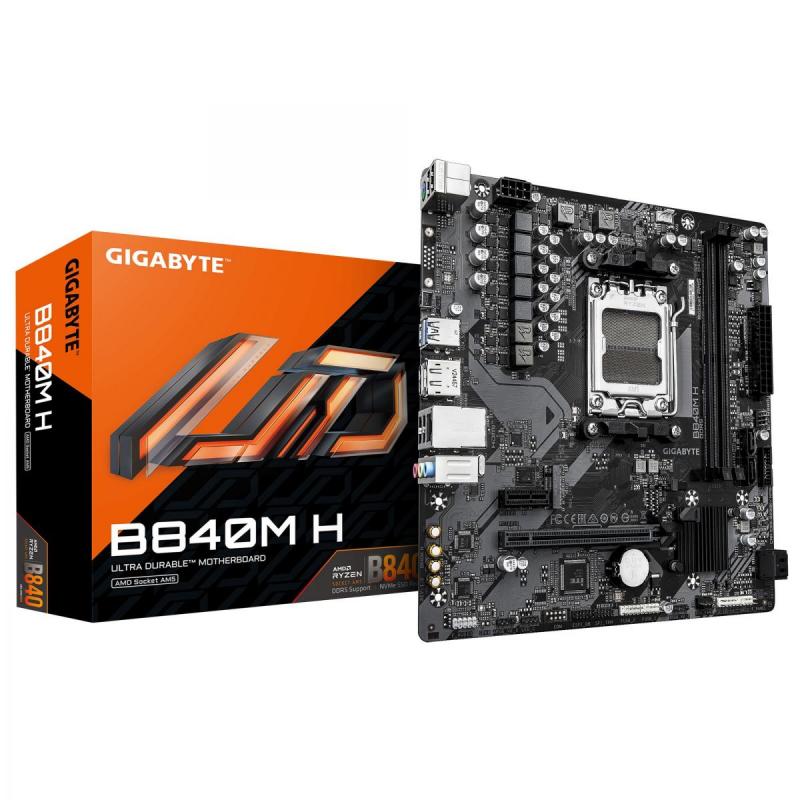

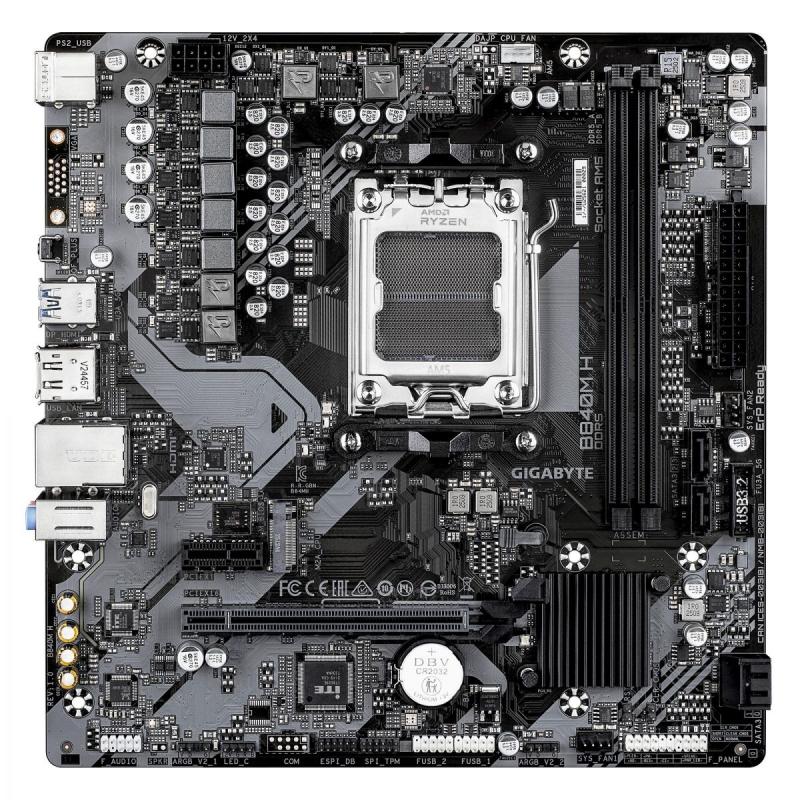

MB AMD B840 SAM5 MATX/B840M H GIGABYTE
6,764ден.
- Достапност: Има надворешна залиха
- Бренд: GIGABYTE
- Шифра: 455466
- Гарантен рок: 24 месеци
- Достава: 13-16 дена
1
| Specifications | |
| BIOS flashback button | Yes |
| ECC сompatibility | Non-ECC |
| Unit Depth | 28 |
| Unit Height | 6 |
| Unit Width | 27 |
| Specs | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2580 |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Batteries included | Yes |
| Battery | Lithium battery |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| BIOS memory size | 256 |
| BIOS type | UEFI AMI |
| Bundled software | Norton® Internet Security (OEM version) |
| Category Code | MBA |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Component for | PC |
| Cooling type | Passive |
| CPU fan connector | Yes |
| Depth | 225 |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 |
| LAN controller | Realtek RTL8111H |
| Line-in | Yes |
| Lithium weight per battery | 0.07 |
| Maximum internal memory | 128 |
| Maximum internal memory per slot | 64 |
| Maximum resolution | 4096 x 2160 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD B840 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Name | MB AMD B840 SAM5 MATX/B840M H GIGABYTE |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of RGB LED pin headers | 3 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| Package depth | 265 |
| Package height | 54 |
| Package weight | 941 |
| Package width | 265 |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Dark brown |
| Product Net Weight | 0.7 |
| Product type | Office |
| Products per shipping (inner) case | 1 |
| PS/2 ports quantity | 1 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Screws included | Yes |
| Shipping Box Depth | 28 |
| Shipping Box Height | 6 |
| Shipping Box Weight | 1 |
| Shipping Box Width | 27 |
| Summary | GIGABYTE B840M H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H |
| Supported memory clock speed (max) | 7200 |
| Supported memory clock speeds | 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Calculated Volume | 0.004536 |
| Unit Calculated Weight | 1 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Vendor Homepage | www.gigabyte.com/Motherboard/B840M-H |
| Warranty period | 3 |
| Weight | 880 |
| Width | 230 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
