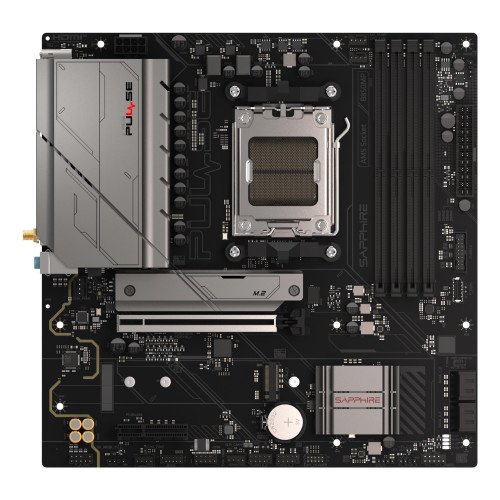

52123-04-40G

Technical Specifications

• Summary: Sapphire PULSE B850M WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Vendor Homepage: https://www.sapphiretech.com/en/consumer/mb_pulse_b850m
• Name: MB AMD B850 SAM5 MATX/PULSE 52123-04-40G SAPPHIRE
• Category Code: MBA
• Model: 52123-04-40G
• Motherboard chipset: AMD B850
• Audio chip: Realtek ALC897
• Product colour: Black
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 5.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
• Supported processor sockets: Socket AM5
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• Supported memory clock speed (max): 7600
• Maximum internal memory: 192
• Maximum internal memory per slot: 48
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: PCI Express 4.0,PCI Express 5.0,SATA III
• Number of storage drives supported: 6
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 1
• Number of chassis fan connectors: 3
• 12V power connector: Yes
• Number of water pump connectors: 1
• Serial port headers: 1
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 3
• USB 2.0 ports quantity: 6
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• DisplayPorts quantity: 1
• Headphone outputs: 3
• Line-in: Yes
• Microphone in: Yes
• WiFi-AP antenna jack: 2
• USB connector type: USB Type-A
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• LAN controller: Dragon RTL8125BG
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
• Bluetooth: Yes
• Bluetooth version: 5.3
• PCI Express x4 (Gen 4.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 2
• 1st M.2 largest key size: 2280
• 1st M.2 highest PCI Express generation: 5.0
• 2nd M.2 largest key size: 2280
• 2nd M.2 highest PCI Express generation: 4.0
• Clear CMOS jumper: Yes
• Width: 244
• Depth: 235
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.005096
• Unit Calculated Weight: 1.6
