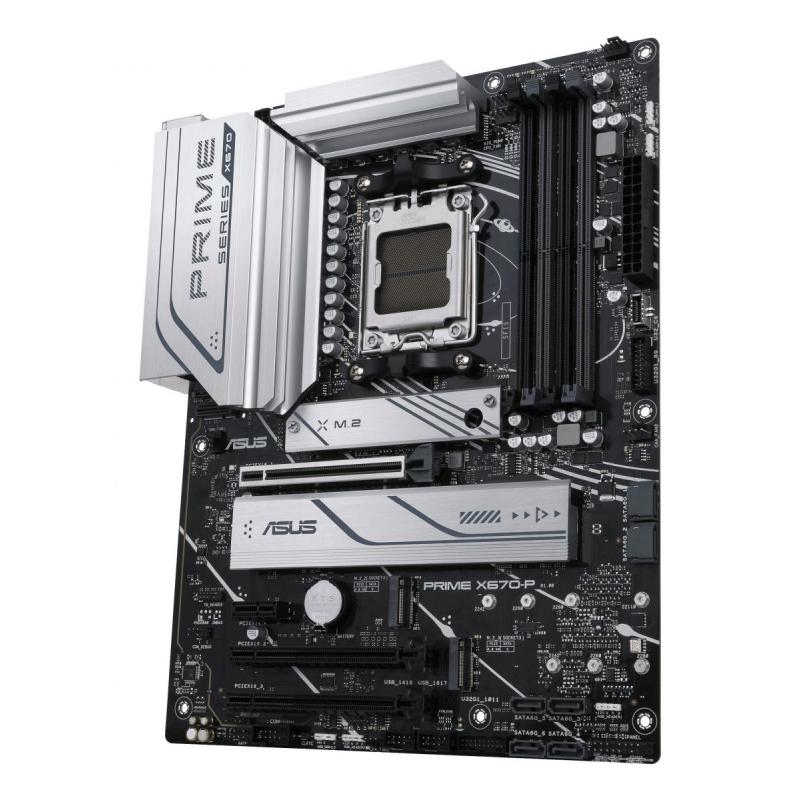

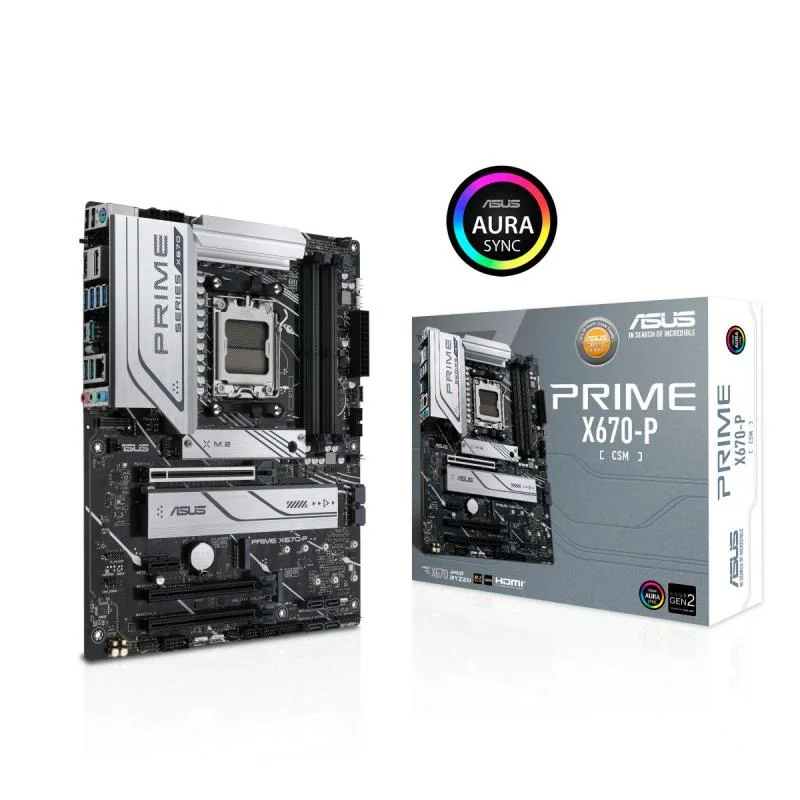

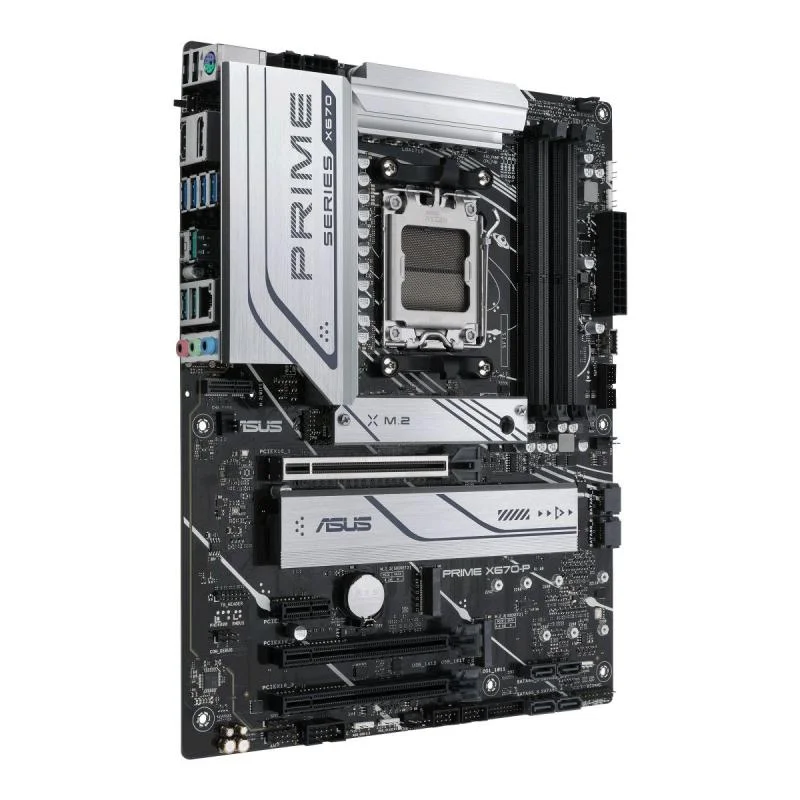

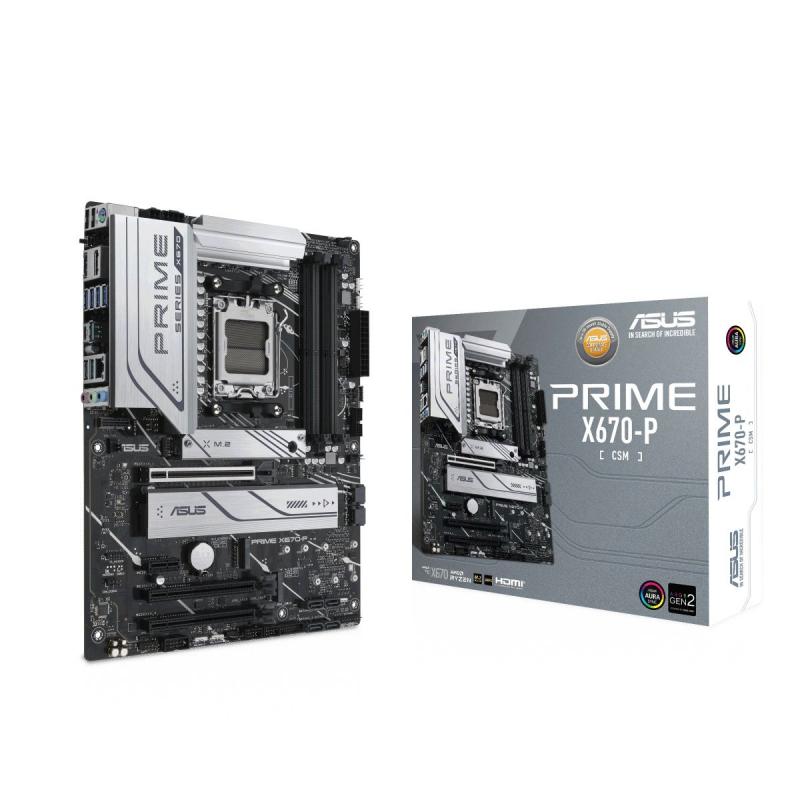

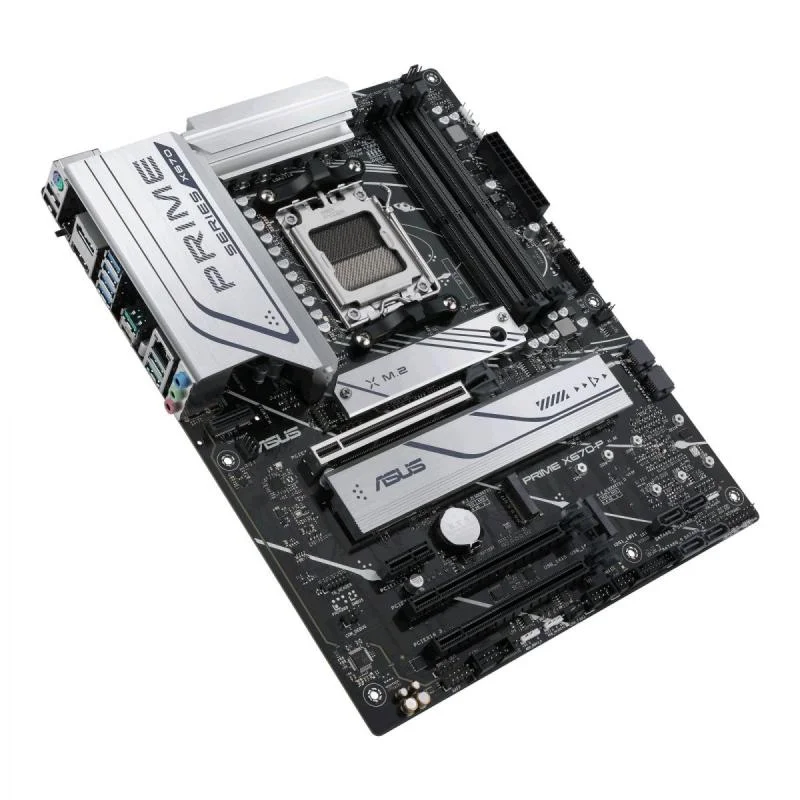

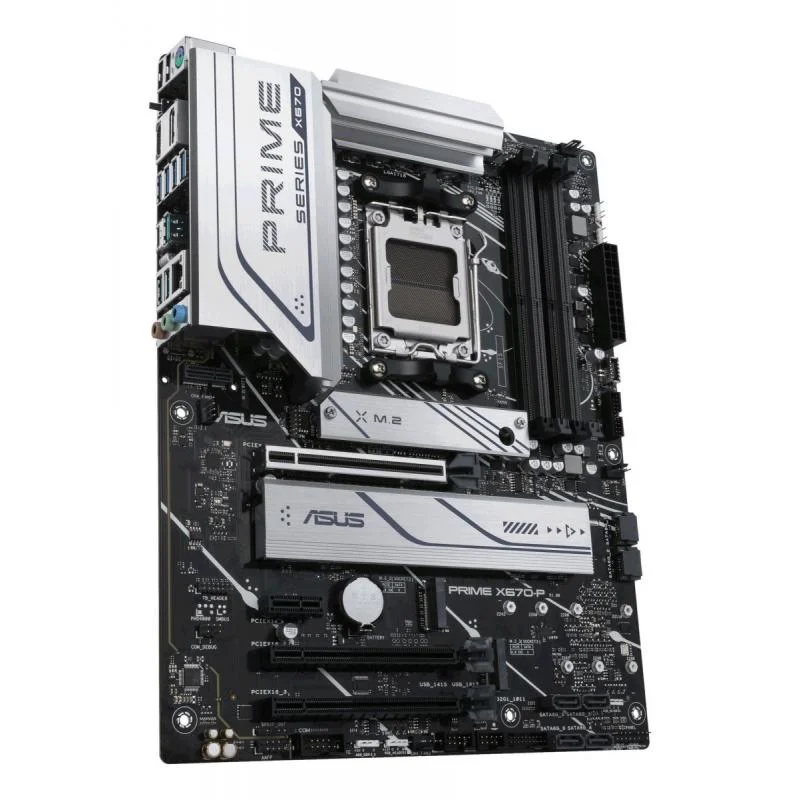

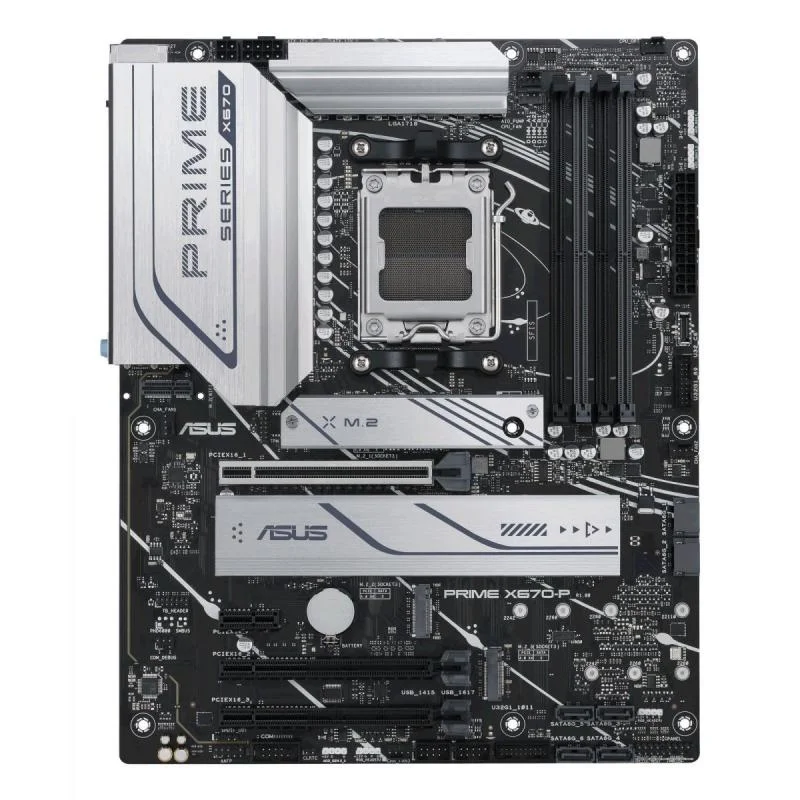

MB AMD X670 SAM5 ATX/PRIME X670-P-CSM ASUS
19,274ден.
- Достапност:
- Бренд: ASUS
- Шифра: 397687
- Гарантен рок: 36 месеци
- Достава: 13-16 дена
1
| Specifications | |
| ECC сompatibility | ECC & Non-ECC |
| Unit Depth | 34 |
| Unit Height | 24 |
| Unit Width | 75 |
| Specs | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 |
| BIOS memory size | 256 |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Category Code | MBA |
| Compatible processor series | AMD Ryzen 7000 Series |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 244 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 |
| Maximum resolution | 7680 x 4320 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Model | PRIME X670-P-CSM |
| Motherboard chipset | AMD X670 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Name | MB AMD X670 SAM5 ATX/PRIME X670-P-CSM ASUS |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| Package depth | 273 |
| Package height | 68 |
| Package weight | 1820 |
| Package width | 338 |
| Packaging content | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD Documentation 1 x User guide |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product Net Weight | 0.9 |
| Product type | Office |
| PS/2 ports quantity | 1 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Shipping Box Depth | 34 |
| Shipping Box Height | 24 |
| Shipping Box Weight | 1.5 |
| Shipping Box Width | 7.5 |
| Special features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heat |
| Summary | ASUS PRIME X670-P-CSM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Supported memory clock speed (max) | 6400 |
| Supported memory clock speeds | 4800/5100/5200/5400/5600/5800/6000/6200/6400 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Calculated Volume | 0.00612 |
| Unit Calculated Weight | 1.5 |
| Units per Shipping Box | 1 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| User guide | Yes |
| Vendor Homepage | https://www.asus.com/motherboards-components/motherboards/csm/prime-x670-p-csm/ |
| Width | 305 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
