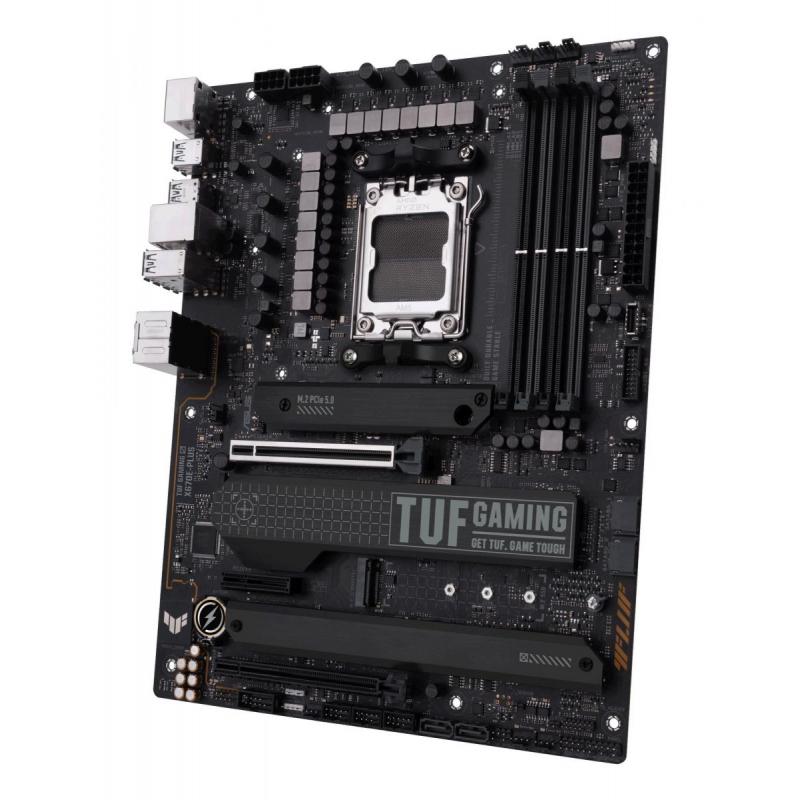

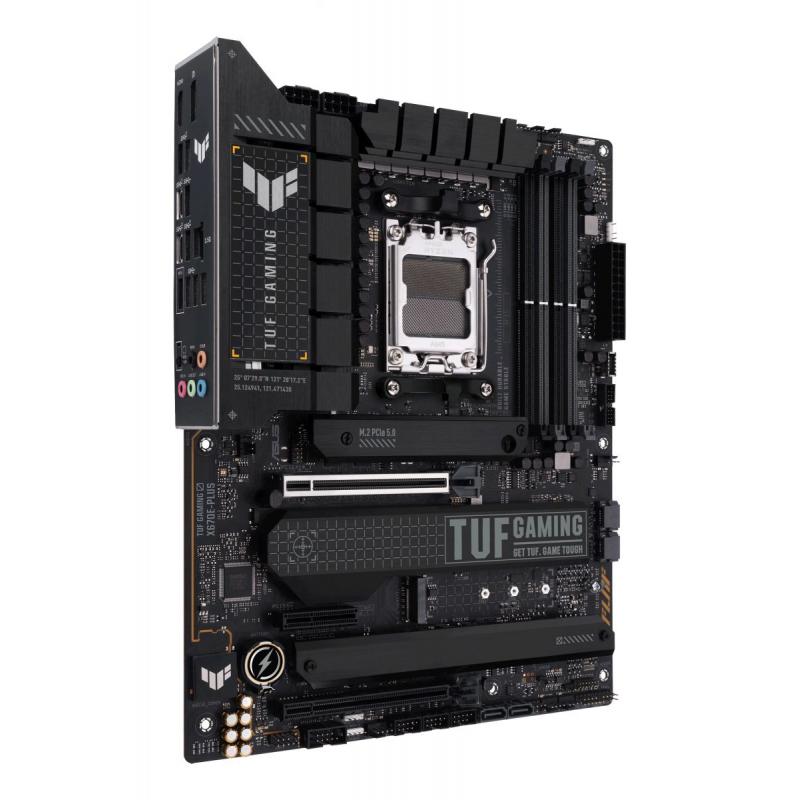

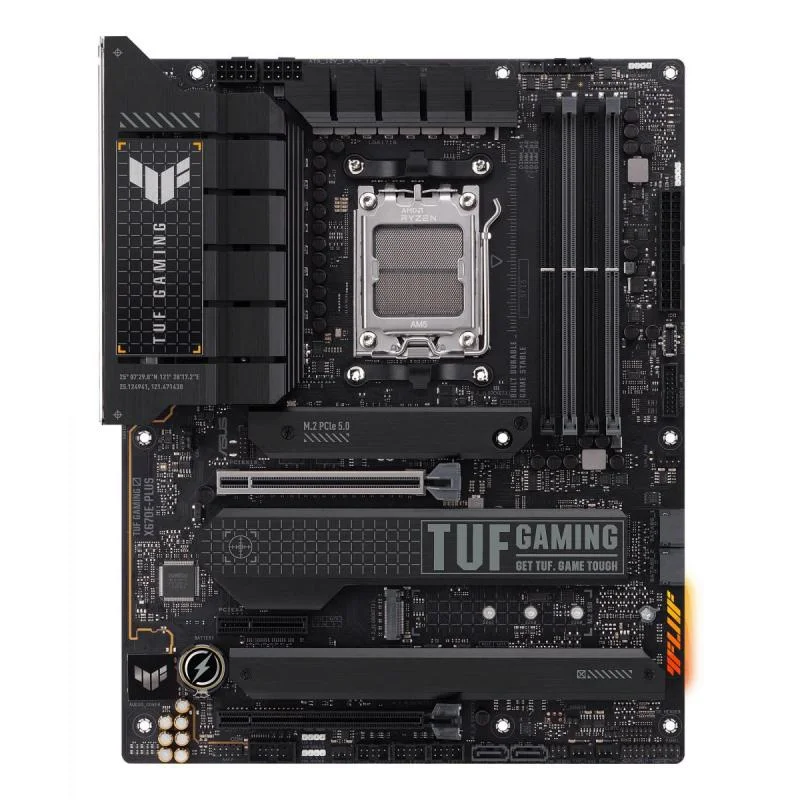

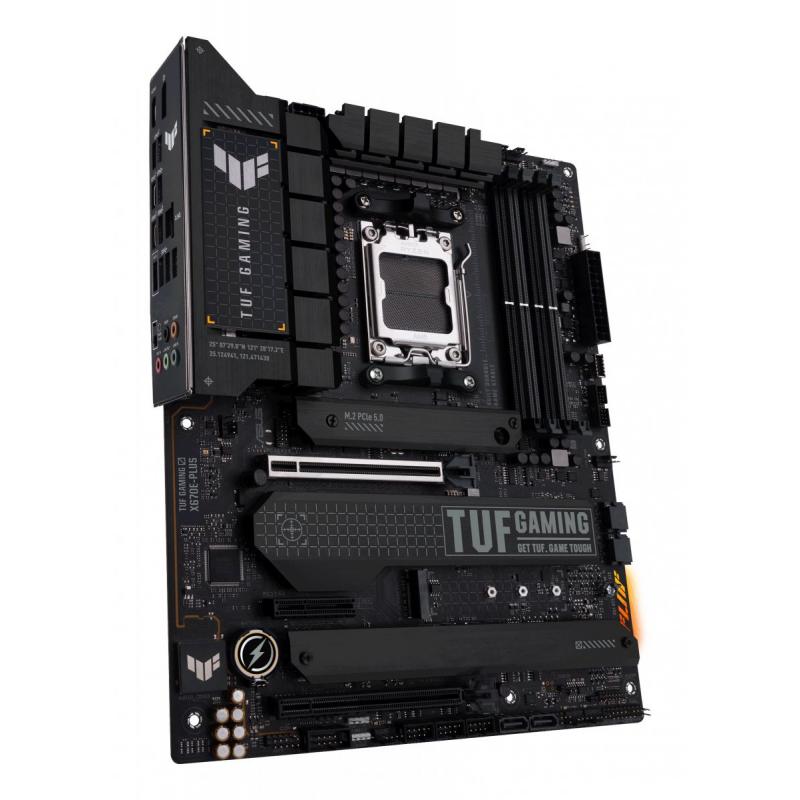

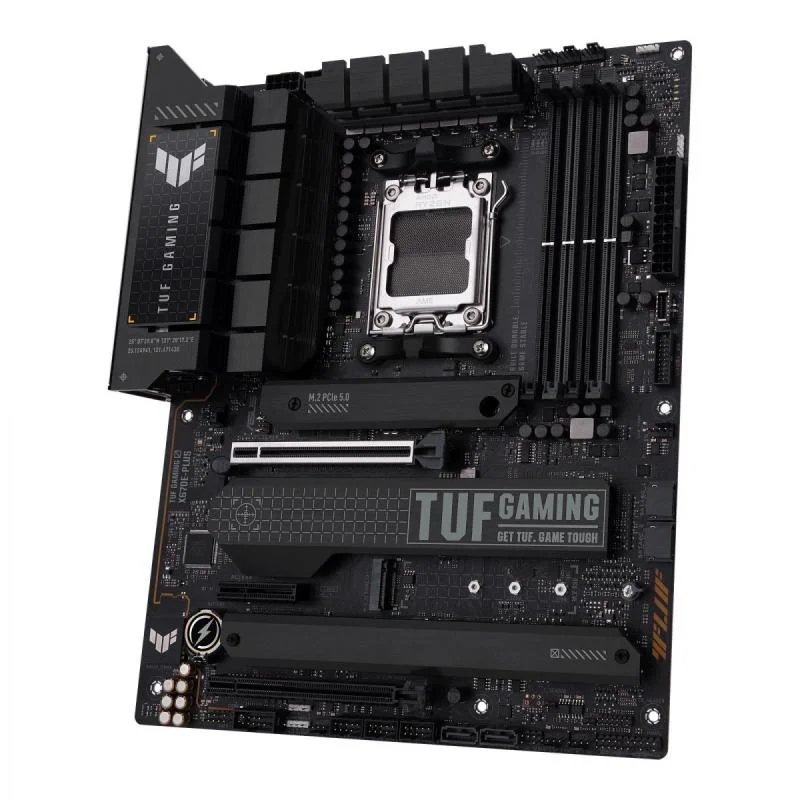

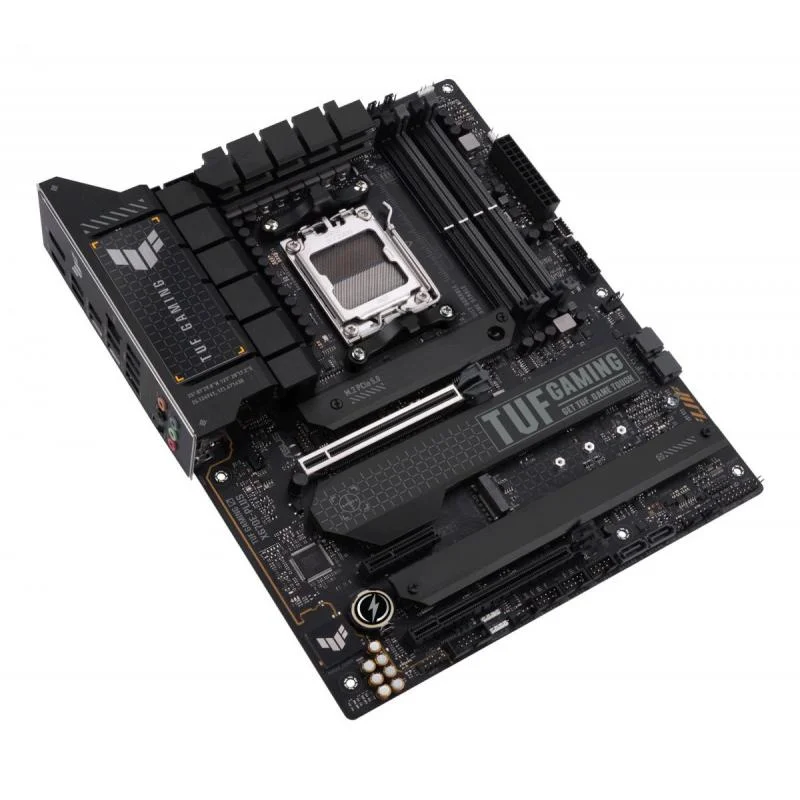

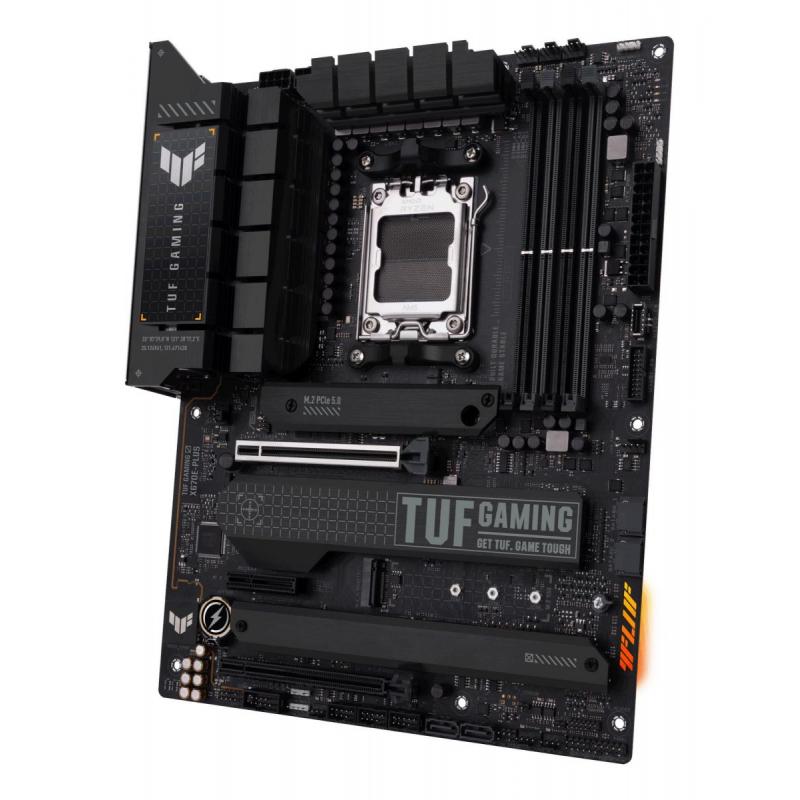

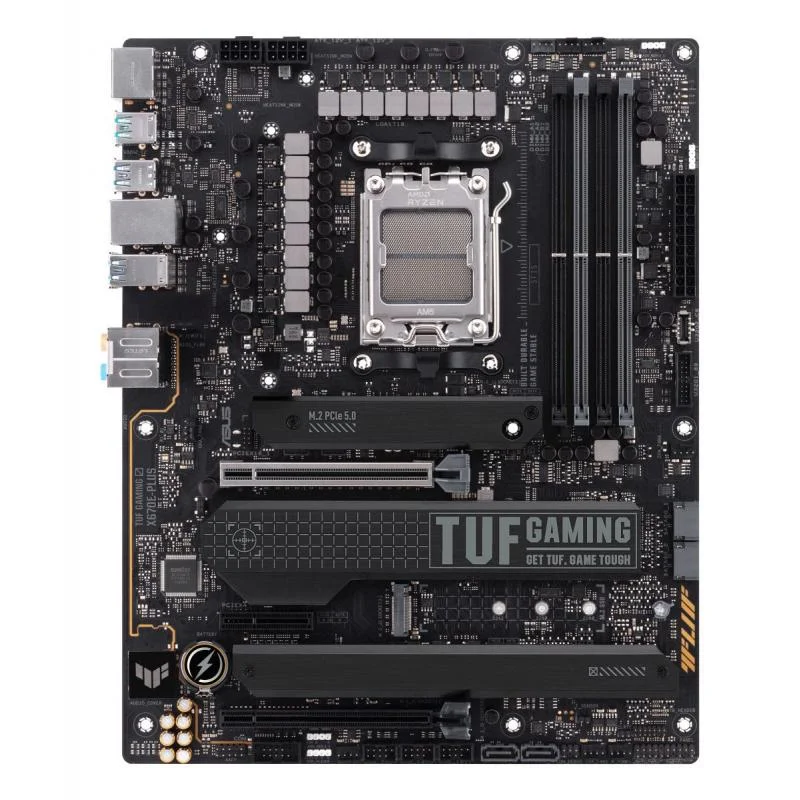

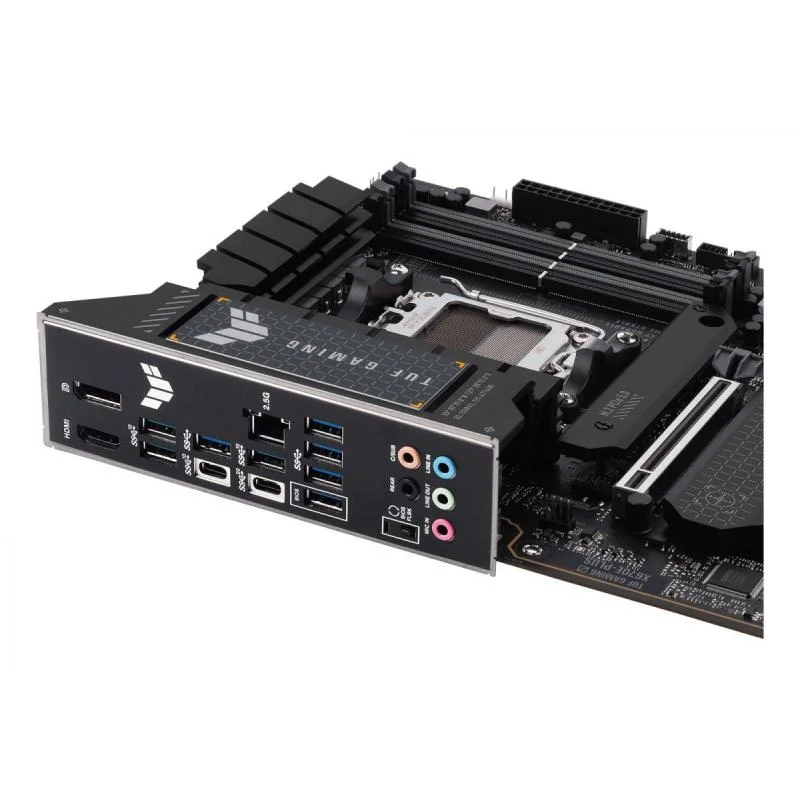

MB AMD X670 SAM5 ATX/TUF GAMING X670E-PLUS ASUS
22,451ден.
- Достапност: Нема на залиха
- Бренд: ASUS
- Шифра: 385600
- Гарантен рок: 36 месеци
- Достава: 13-16 дена
1
| Specifications | |
| ECC сompatibility | ECC & Non-ECC |
| Unit Depth | 34 |
| Unit Height | 7 |
| Unit Width | 27 |
| Specs | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 |
| BIOS memory size | 256 |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Category Code | MBA |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 244 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Maximum internal memory | 128 |
| Maximum resolution | 7680 x 4320 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | TUF GAMING X670E-PLUS |
| Motherboard chipset | AMD X670 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Name | MB AMD X670 SAM5 ATX/TUF GAMING X670E-PLUS ASUS |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of M.2 (M) slots | 4 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Package depth | 273 |
| Package height | 68 |
| Package weight | 2350 |
| Package width | 338 |

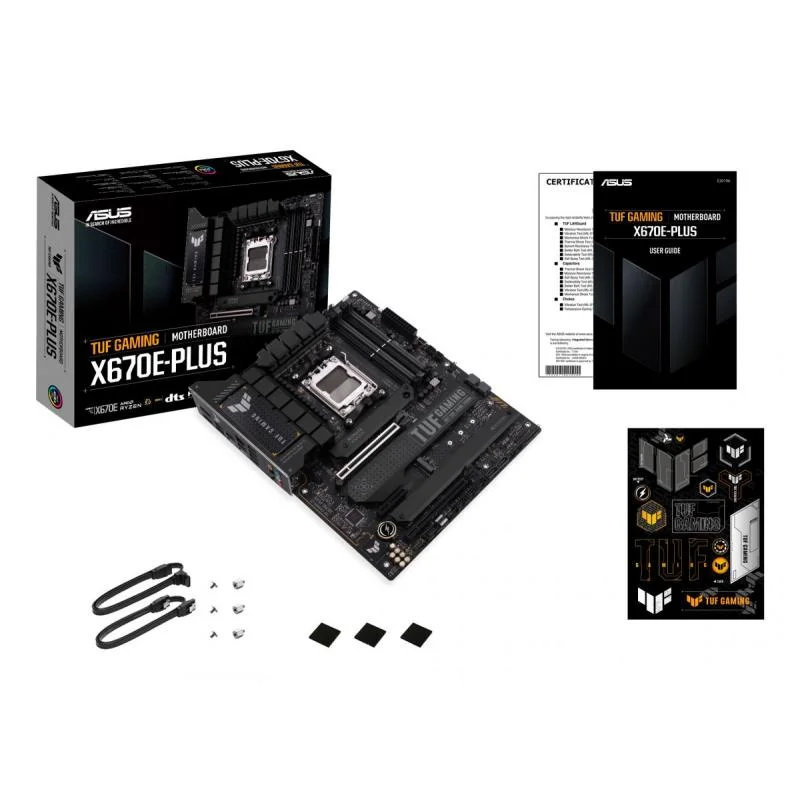

| Packaging content | Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide |
| Parallel processing technology support | Not supported |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 slots | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product Net Weight | 1.2 |
| Product type | Office |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Shipping Box Depth | 34 |
| Shipping Box Height | 7 |
| Shipping Box Weight | 1.5 |
| Shipping Box Width | 27 |
| Special features | TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [y |
| Summary | ASUS TUF GAMING X670E-PLUS. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet |
| Supported memory clock speed (max) | 6400 |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt headers | 1 |
| Unbuffered memory | Yes |
| Unit Calculated Volume | 0.006426 |
| Unit Calculated Weight | 1.5 |
| Units per Shipping Box | 1 |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| User guide | Yes |
| Vendor Homepage | https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-X670E-PLUS/ |
| Width | 305 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
