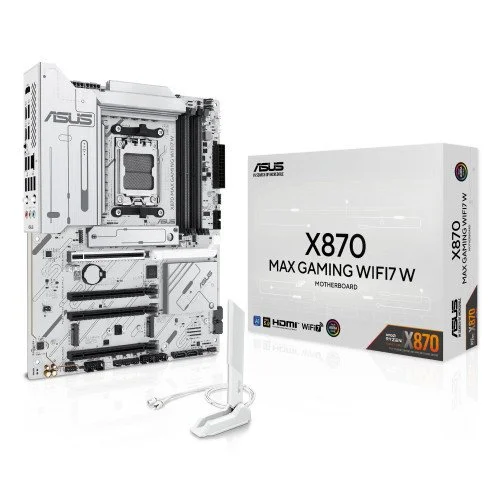

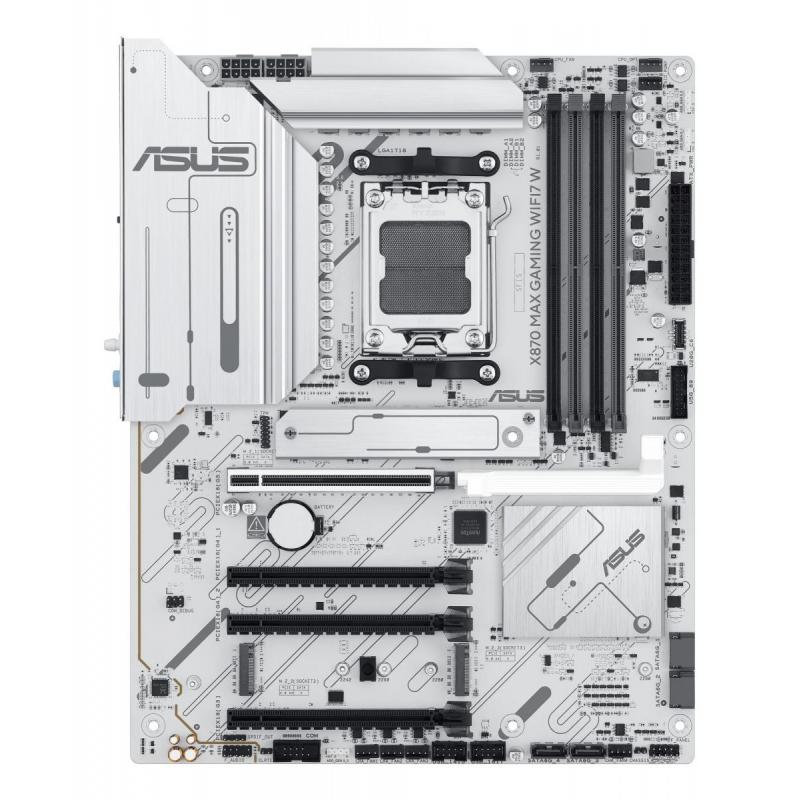

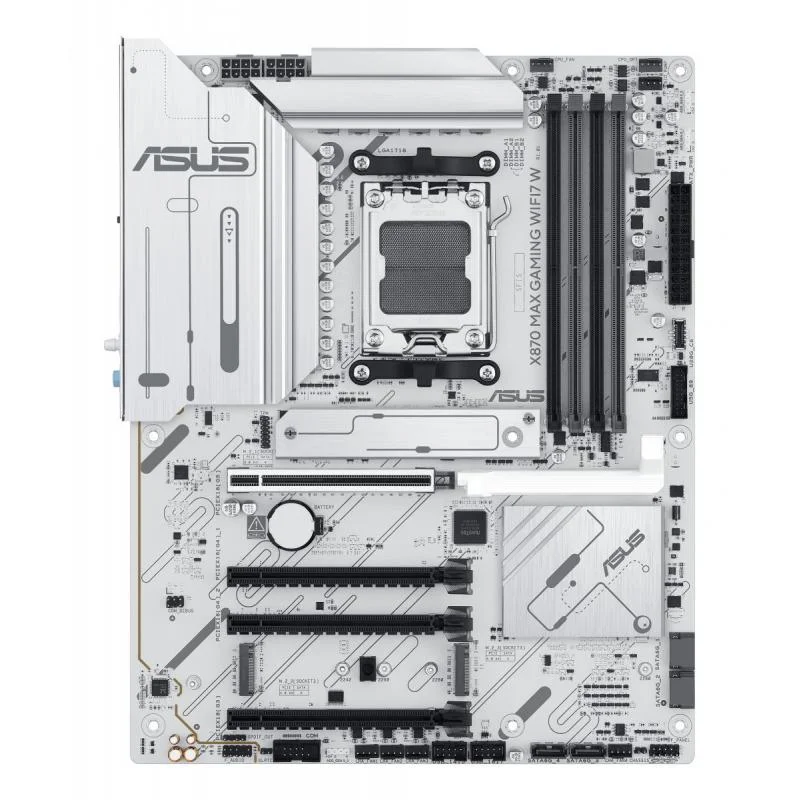

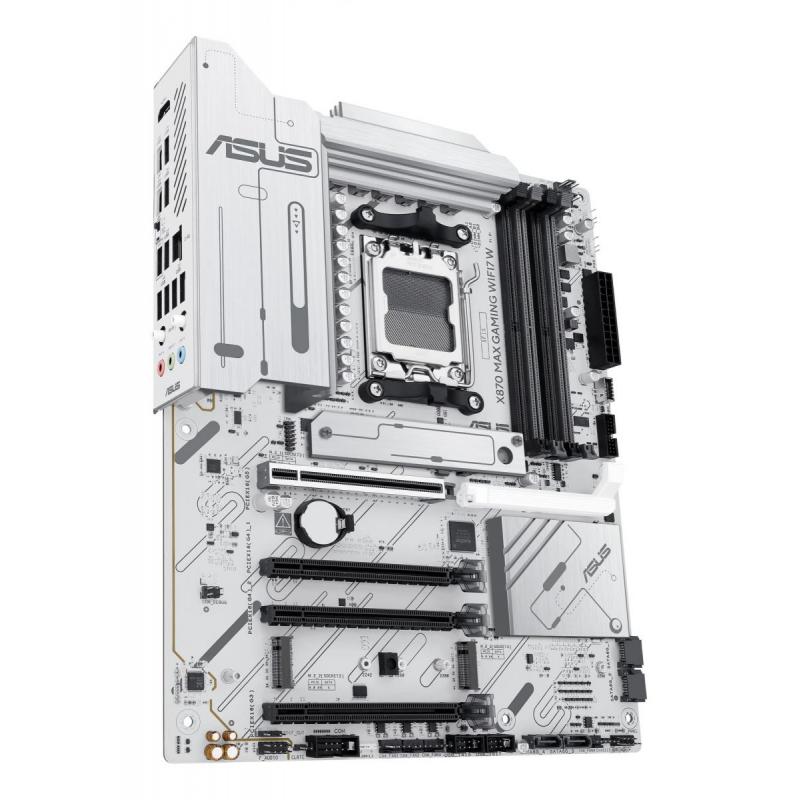

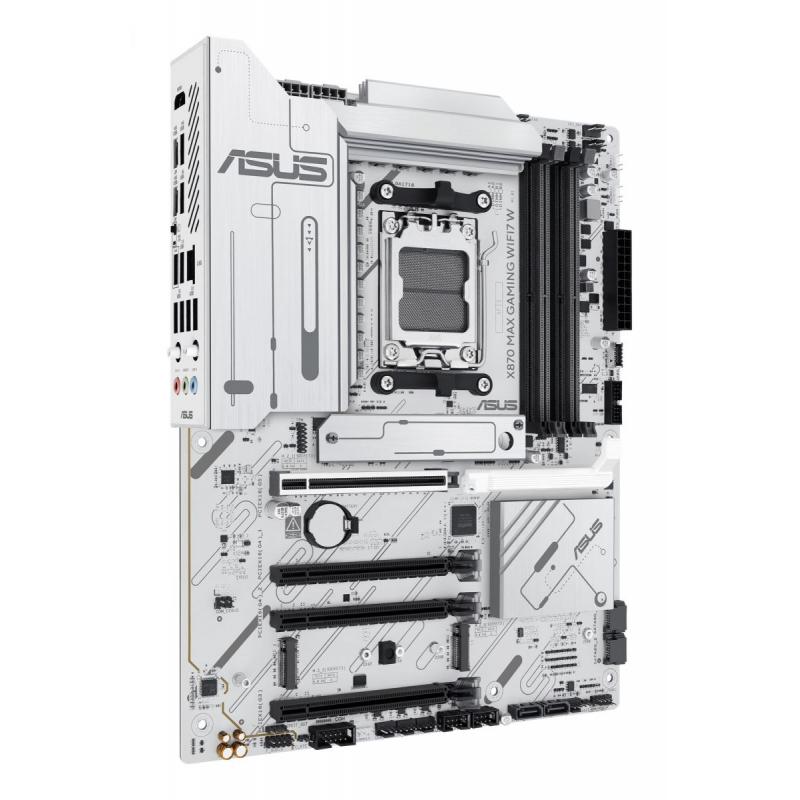

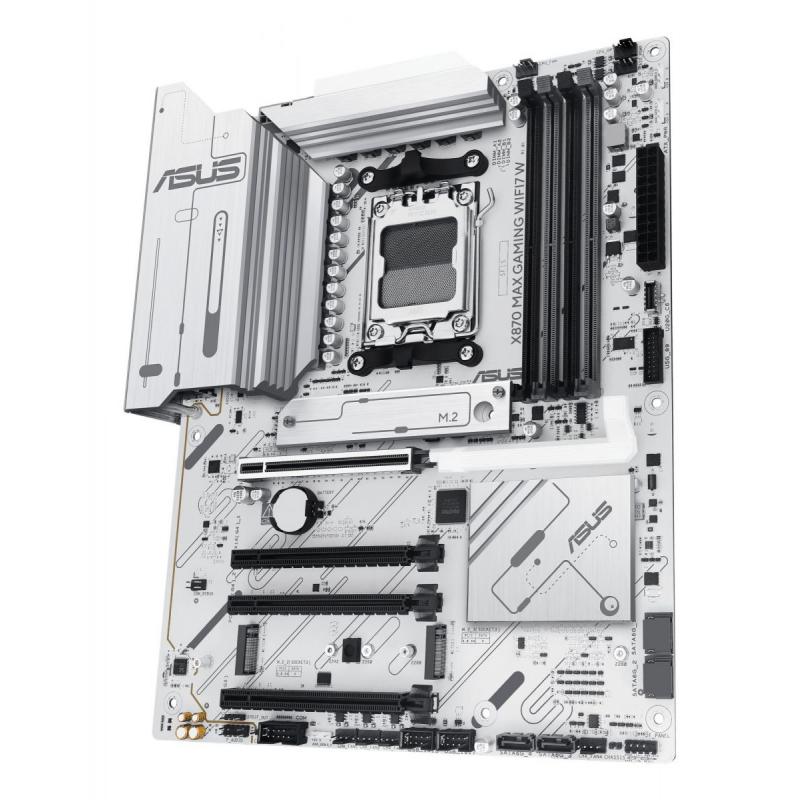

X870 MAX GAMING WIFI7 W

Technical Specifications

• Summary: ASUS X870 MAX GAMING WIFI7 W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
• Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/others/x870-max-gaming-wifi7-w/
• Name: MB AMD X870 SAM5 ATX/X870 MAX GAMING WIFI7 W ASUS
• Category Code: MBA
• Model: X870 MAX GAMING WIFI7 W
• Motherboard chipset: AMD X870
• Product colour: White
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 11
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
• Supported processor sockets: Socket AM5
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Supported memory clock speed (max): 8000
• Maximum internal memory: 256
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: PCI Express 4.0,PCI Express 5.0,SATA III
• Number of storage drives supported: 7
• RAID support: Yes
• RAID levels: 0/1/10/5
• Parallel processing technology support: Not supported
• Maximum resolution: 3840 x 2160
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• USB 3.2 Gen 2x2 connectors: 1
• Number of SATA III connectors: 4
• S/PDIF out connector: Yes
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 2
• Number of chassis fan connectors: 4
• Chassis intrusion connector: Yes
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 2
• 12V power connector: Yes
• Number of COM connectors: 1
• Number of water pump connectors: 1
• TPM connector: Yes
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 3

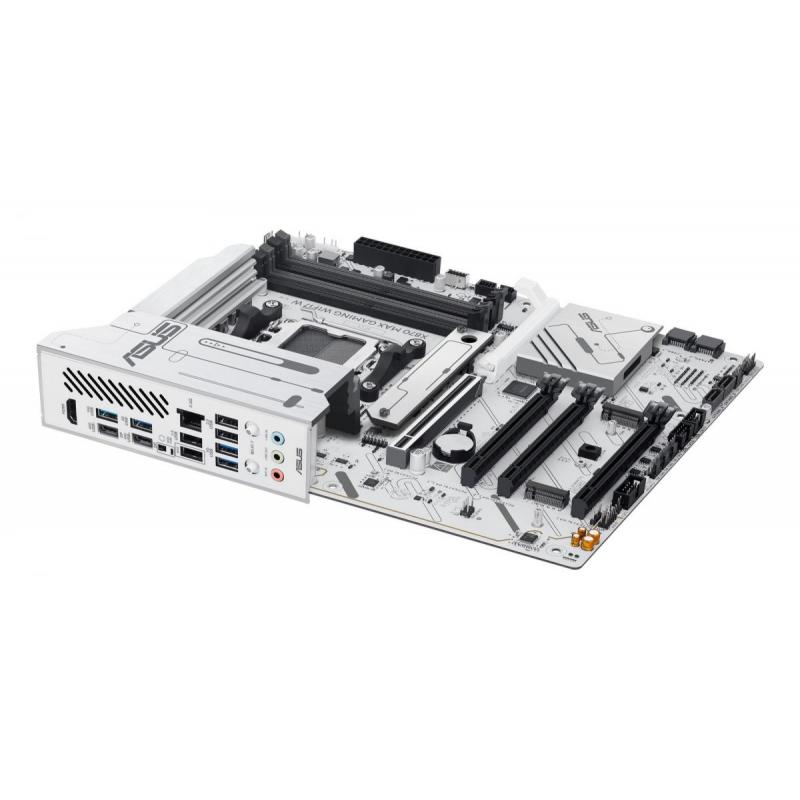

• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB4 Gen 3x2 ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Headphone outputs: 3
• Microphone in: Yes

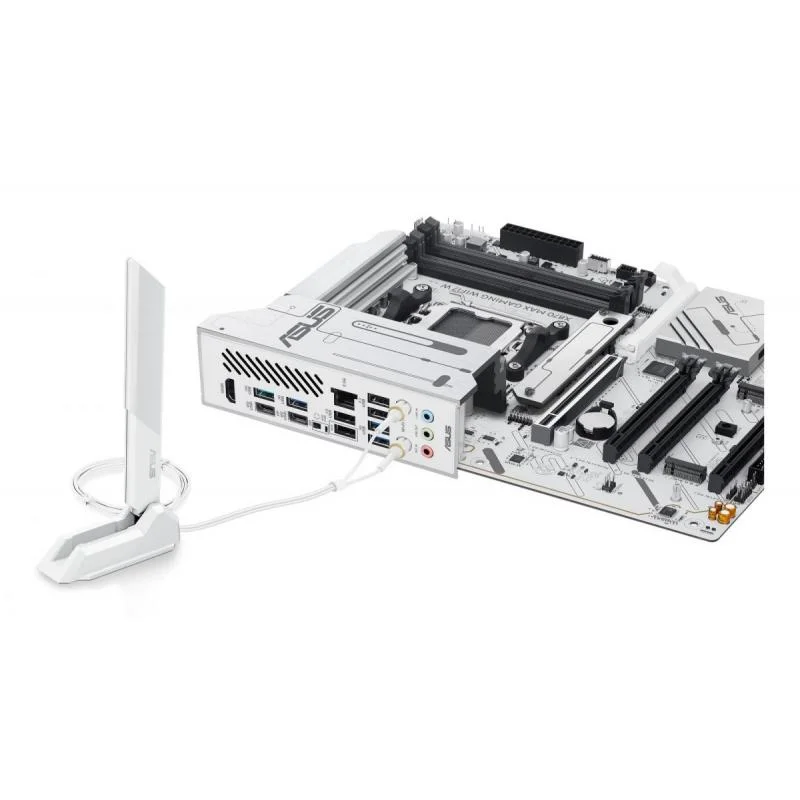

• WiFi-AP antenna jack: 2
• USB connector type: USB Type-A/USB Type-C
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wake-on-LAN ready: Yes
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Bluetooth: Yes
• Bluetooth version: 5.4
• PCI Express x16 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 2
• PCI Express x16 (Gen 5.x) slots: 1
• Number of M.2 (M) slots: 3
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Clear CMOS jumper: Yes
• Width: 305
• Depth: 244
• Antenna included: Yes

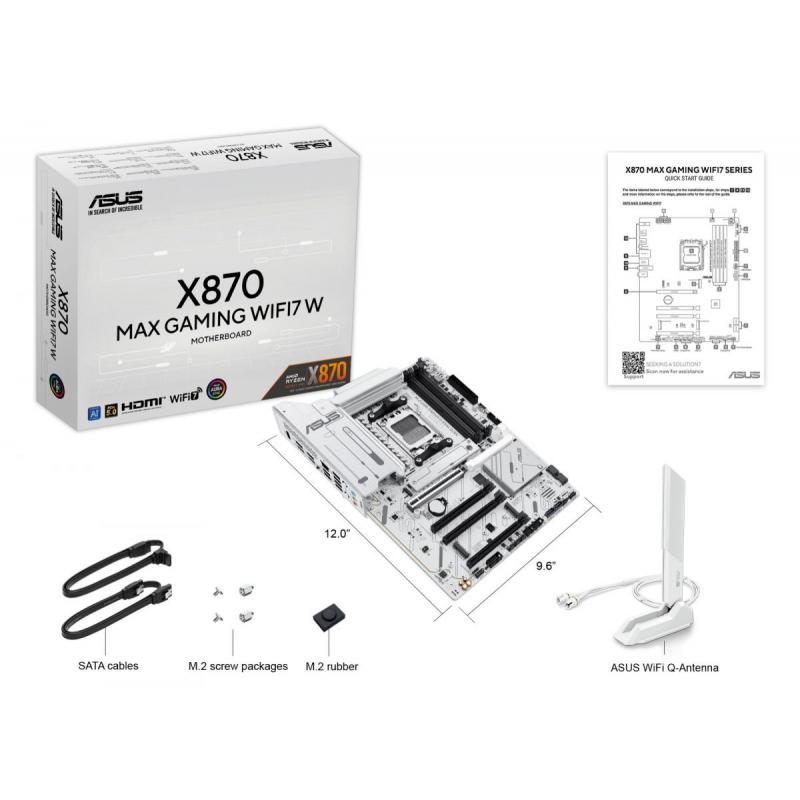

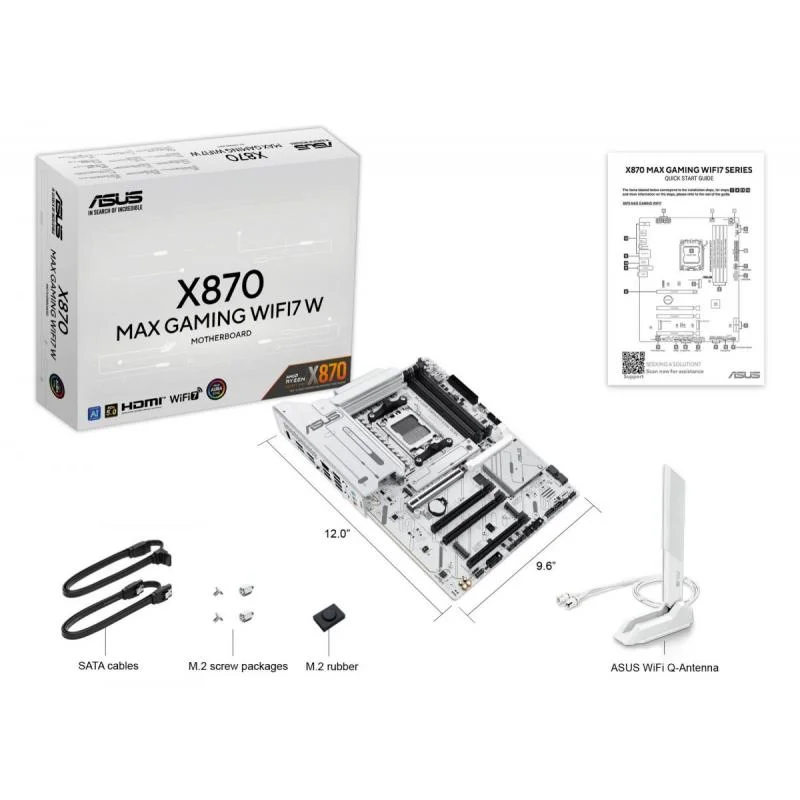

• Cables included: SATA
• Screws included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.006552
• Unit Calculated Weight: 2.3
