PROART X870E-CREATOR WIFI

PROART X870E-CREATOR WIFI
Нема на залиха
PROART X870E-CREATOR WIFI
  • Motherboard chipset: AMD X870E
  • Motherboard form factor: ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 8
    • Врз основа на 0 коментари. - Напиши коментар
    35,472ден.
    • Достапност: Нема на залиха
    • Бренд: ASUS
    • Шифра: 425723
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    • Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/
    • Name: MB AMD X870E SAM5 ATX/PROART X870E-CREATOR WIFI ASUS
    • Category Code: MBA
    • Model: PROART X870E-CREATOR WIFI
    • Motherboard chipset: AMD X870E
    • Audio chip: Realtek S1220A
    • Component for: PC
    • Motherboard form factor: ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: AMD
    • Windows operating systems supported: Windows 11
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Supported processor sockets: Socket AM5
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Maximum internal memory: 192
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 8
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • USB 2.0 connectors: 3
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • USB 3.2 Gen 2x2 connectors: 1
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of chassis fan connectors: 5
    • Chassis intrusion connector: Yes
    • 12V power connector: Yes
    • Number of COM connectors: 1
    • USB 2.0 ports quantity: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
    • USB 3.2 Gen 2x2 Type-C ports quantity: 1
    • USB4 Gen 2x2 ports quantity: 2
    • Ethernet LAN (RJ-45) ports: 2
    • HDMI ports quantity: 1
    • DisplayPorts quantity: 1
    • Microphone in: Yes
    • WiFi-AP antenna jack: 1
    • Ethernet LAN: Yes
    • Ethernet interface type: 10 Gigabit Ethernet/2.5 Gigabit Ethernet
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
    • Wi-Fi standards: Wi-Fi 7 (802.11be)
    • Bluetooth: Yes
    • Bluetooth version: 5.4
    • PCI Express x16 (Gen 4.x) slots: 1
    • PCI Express x16 (Gen 5.x) slots: 2
    • Number of M.2 (M) slots: 4
    • BIOS type: UEFI AMI
    • BIOS memory size: 256
    • Clear CMOS button: Yes
    • Width: 305
    • Depth: 244
    • Cables included: DisplayPort,SATA
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.009657
    • Unit Calculated Weight: 2.5
    Specs
    12V power connector Yes
    ATX Power connector (24-pin) Yes
    Audio chip Realtek S1220A
    Audio output channels 7.1
    BIOS memory size 256
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.4
    Cables included DisplayPort,SATA
    Category Code MBA
    Chassis intrusion connector Yes
    Clear CMOS button Yes
    Component for PC
    CPU fan connector Yes
    Depth 244
    Description

    The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.​

    This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.​

    All You Need for Maximum Productivity
    Dual USB4® Connectivity

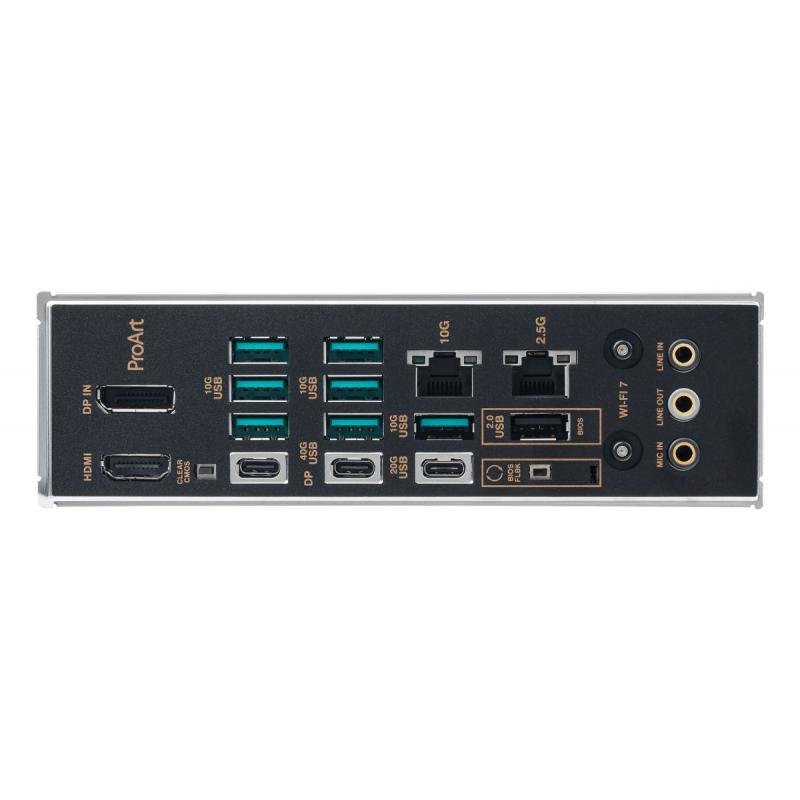

    Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.​
    DisplayPorts quantity 1
    ECC сompatibility ECC & Non-ECC
    Ethernet interface type 10 Gigabit Ethernet/2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 2
    Front panel audio connector Yes
    HDMI ports quantity 1
    Maximum internal memory 192
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Model PROART X870E-CREATOR WIFI
    Motherboard chipset AMD X870E
    Motherboard chipset family AMD
    Motherboard form factor ATX
    Name MB AMD X870E SAM5 ATX/PROART X870E-CREATOR WIFI ASUS
    Number of chassis fan connectors 5
    Number of COM connectors 1
    Number of HDDs supported 4
    Number of M.2 (M) slots 4
    Number of memory slots 4
    Number of SATA III connectors 4
    Number of storage drives supported 8
    Parallel processing technology support Not supported
    PCI Express x16 (Gen 4.x) slots 1
    PCI Express x16 (Gen 5.x) slots 2
    PictureUrl https://static.elko.cloud/ProductImages/c59e36dd-28e6-4984-ac79-d62d373610ed.Jpeg
    Processor manufacturer AMD
    Processor socket Socket AM5
    RAID levels 0/1/10/5
    RAID support Yes
    Summary ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    Supported memory types DDR5-SDRAM
    Supported processor sockets Socket AM5
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/c59e36dd-28e6-4984-ac79-d62d373610ed.Jpeg
    Top Wi-Fi standard Wi-Fi 7 (802.11be)
    Unbuffered memory Yes
    Unit Calculated Volume 0.009657
    Unit Calculated Weight 2.5
    Units per Shipping Box 1
    USB 2.0 connectors 3
    USB 2.0 ports quantity 1
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 7
    USB 3.2 Gen 2x2 connectors 1
    USB 3.2 Gen 2x2 Type-C ports quantity 1
    USB4 Gen 2x2 ports quantity 2
    Vendor Homepage https://www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/
    Wi-Fi Yes
    Wi-Fi standards Wi-Fi 7 (802.11be)
    Width 305
    WiFi-AP antenna jack 1
    Windows operating systems supported Windows 11
