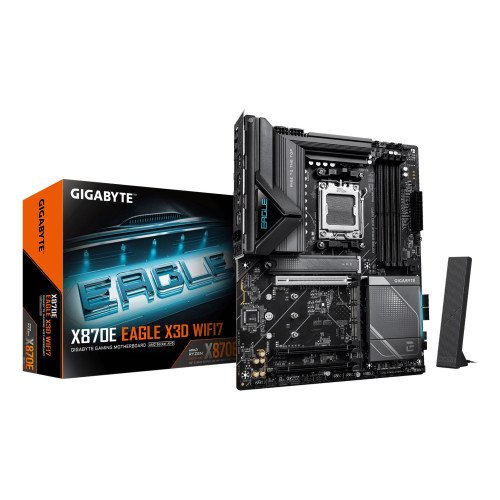

MB AMD X870E SAM5 ATX/X870E EAGLE X WF7 GIGABYTE

Technical Specifications

• Summary: GIGABYTE X870E EAGLE X3D WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Vendor Homepage: https://www.gigabyte.com/
• Name: MB AMD X870E SAM5 ATX/X870E EAGLE X WF7 GIGABYTE
• Category Code: MBA
• Motherboard chipset: AMD X870E
• Audio chip: Realtek ALC1220-VB
• Product colour: Black
• PC health monitoring: CPU/Fan/Temperature/Voltage/Water cooling
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Cooling type: Passive
• Motherboard chipset family: AMD
• Power source type: ATX
• Windows operating systems supported: Windows 11 x64
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
• Supported processor sockets: Socket AM5
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8400/8600/8800/9000
• Supported memory clock speed (max): 9000
• Maximum internal memory: 256
• Unbuffered memory: Yes
• Maximum internal memory per slot: 64
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,PCI Express 4.0,PCI Express 5.0,SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 8
• RAID support: Yes
• RAID levels: 0/1/10/5
• Parallel processing technology support: Not supported
• Maximum resolution: 4096 x 2304
• HDCP: Yes
• HDCP version: 2.3
• DirectX version: 12.0
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• USB 3.2 Gen 2x2 connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 2
• Number of chassis fan connectors: 6
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 2
• Number of noise detection headers: 1
• Number of temperature sensor headers: 2
• Number of water pump connectors: 3
• TPM connector: Yes
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• USB4 Gen 2x2 ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPort version: 1.4
• Headphone outputs: 1
• Line-in: Yes
• S/PDIF out port: Yes
• Digital audio optical out: 1
• WiFi-AP antenna jack: 2
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
• LAN controller: Realtek RTL8126
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
• WLAN controller model: Qualcomm QCNCM865
• Bluetooth: Yes
• Bluetooth version: 5.4
• PCI Express x16 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• PCI Express x16 (Gen 5.x) slots: 1
• Number of M.2 (M) slots: 4
• 1st M.2 largest key size: 25110
• 1st M.2 highest PCI Express generation: 5.0
• 2nd M.2 largest key size: 22110
• 2nd M.2 highest PCI Express generation: 4.0
• 3rd M.2 largest key size: 22110
• 3rd M.2 highest PCI Express generation: 4.0
• 4th M.2 largest key size: 22110
• 4th M.2 highest PCI Express generation: 4.0
• BIOS type: UEFI AMI
• BIOS memory size: 512
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Clear CMOS button: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Country of origin: China
• Products per shipping (inner) case: 1
• Battery weight: 3
• Lithium weight per battery: 0.07
• Package width: 335
• Number of battery cells: 1
• Package depth: 270
• Package height: 80
• Battery capacity: 220
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Package weight: 2210
• Battery type: CR2032
• Width: 305
• Depth: 244
• Height: 35
• Antenna included: Yes
• Batteries included: Yes
• Screws included: Yes
• Bundled software: Norton Internet Security (OEM version)
• Weight: 2010
• Warranty period: 3
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.008568
• Unit Calculated Weight: 2
