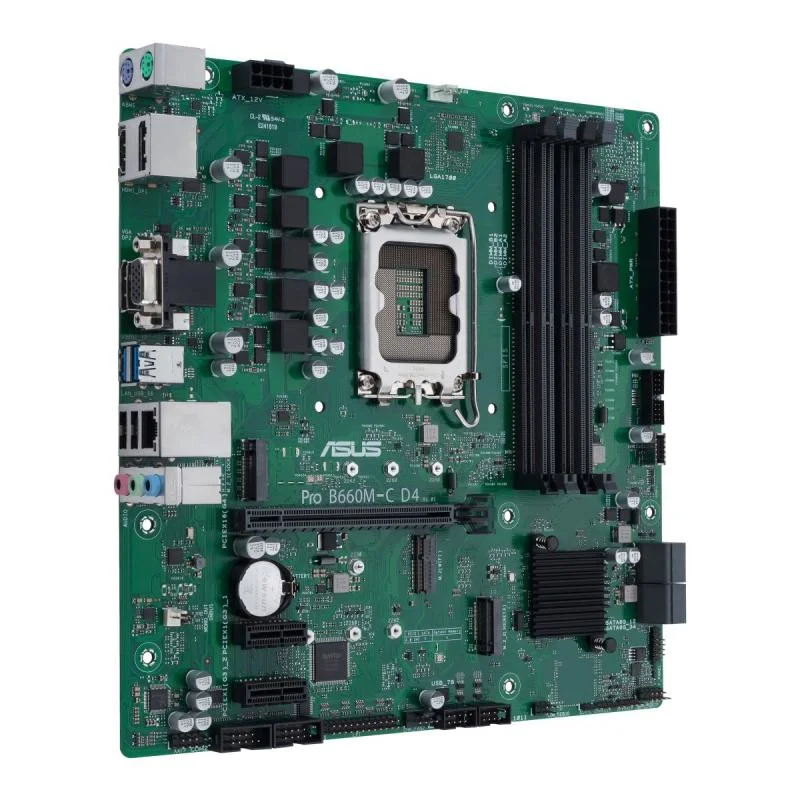

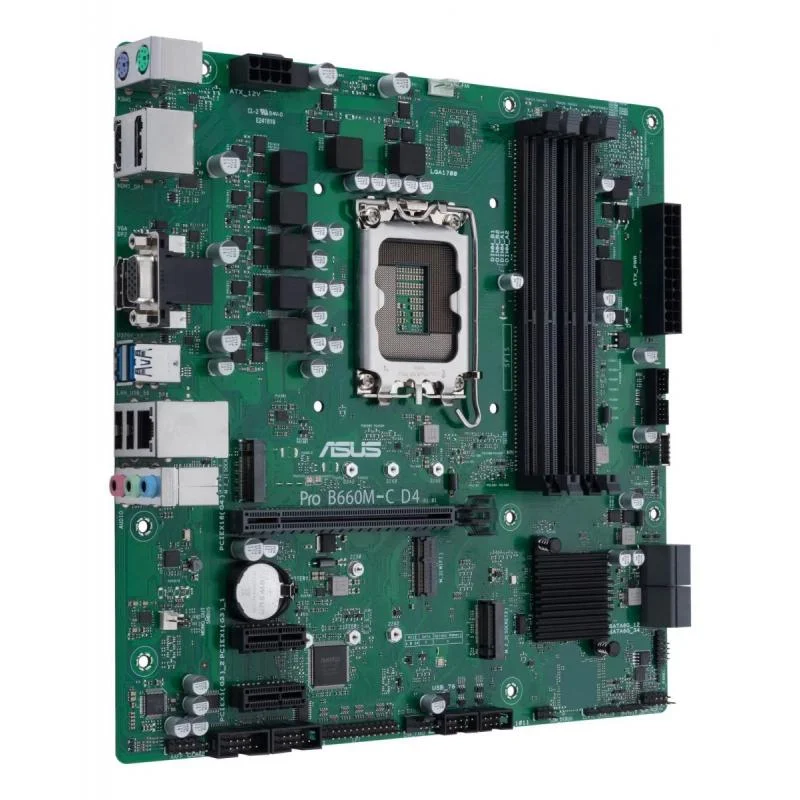

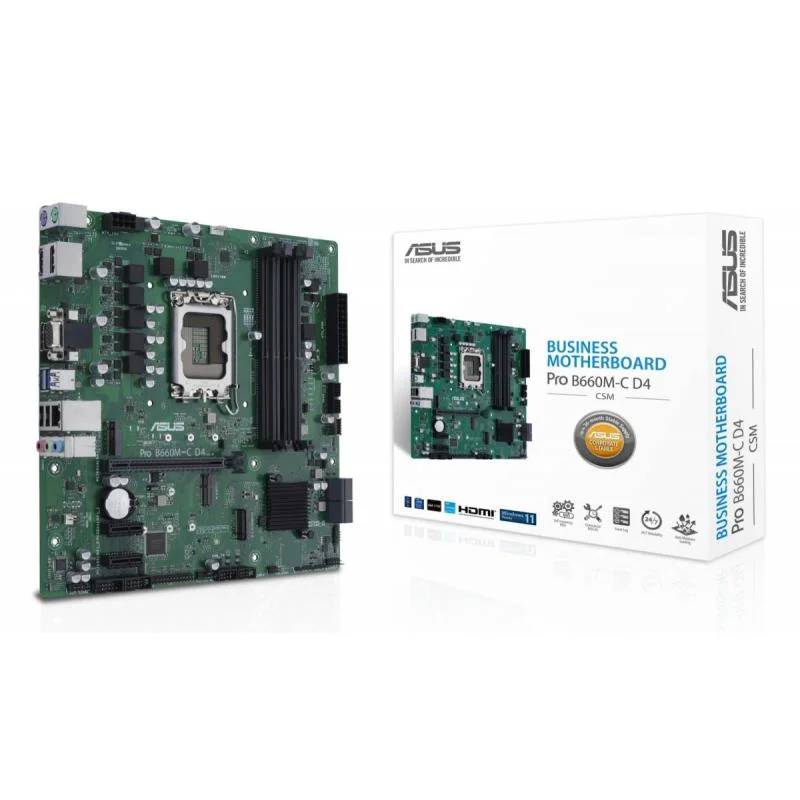

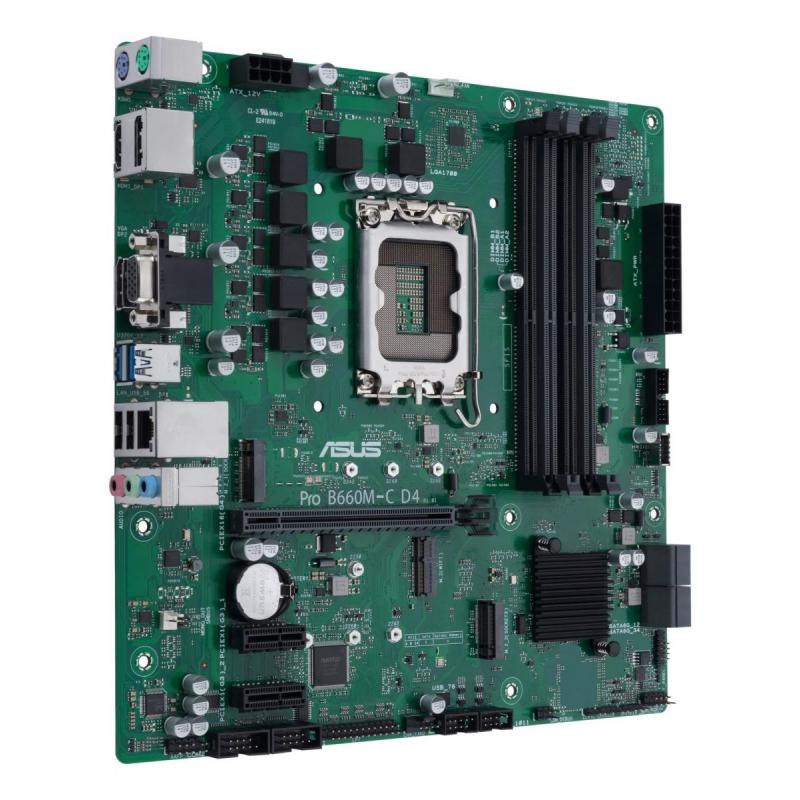

Name: MB B660 S1700 MATX/PRO B660M-C D4-CSM ASUS
Brand: ASUS
SKU: 361202
Price: 9314.00 MKD
Availability: OutOfStock

MB B660 S1700 MATX/PRO B660M-C D4-CSM ASUS

MB B660 S1700 MATX/PRO B660M-C D4-CSM ASUS

Motherboard chipset: Intel B660

Motherboard form factor: micro ATX

Processor socket: LGA 1700

Supported memory types: DDR4-SDRAM

Number of memory slots: 4

Врз основа на 0 коментари. - Напиши коментар

9,314ден.

Достапност:
Бренд: ASUS
Шифра: 361202
Гарантен рок: 36 месеци
Достава: 13-16 дена

Количина

Во кошничка

Листа на желби Спореди

Опис
Спецификација

Specifications
ECC сompatibility	Non-ECC
Unit Depth	27.3
Unit Height	5.2
Unit Width	6.3
Specs
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Audio chip	Realtek ALC897
Audio output channels	7.1
BIOS memory size	128
Bluetooth	Yes
Bluetooth version	5.2

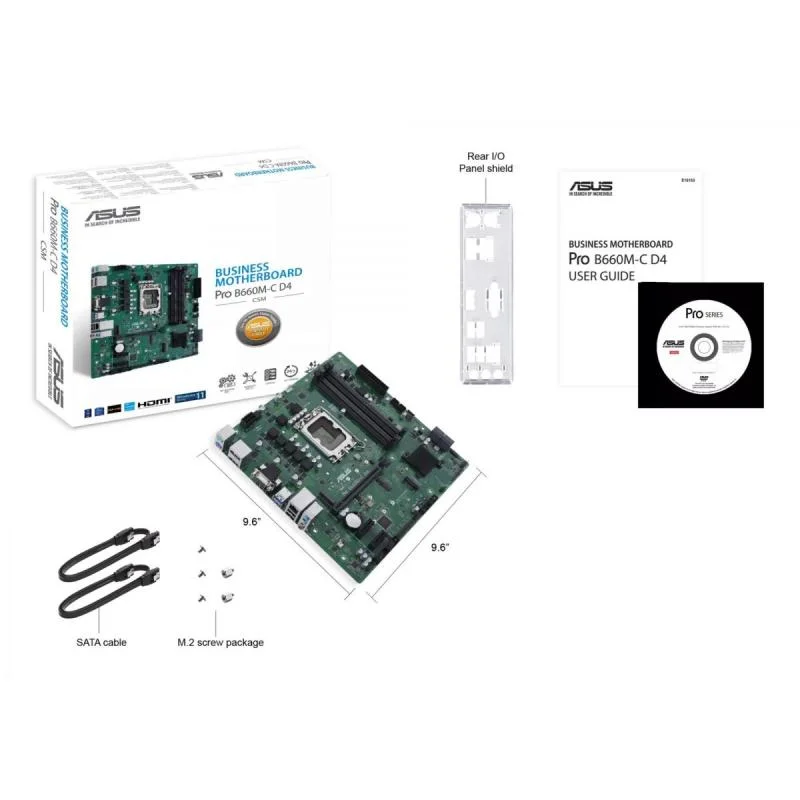

Cables included	SATA
Category Code	MBI
Compatible processor series	Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium®/Intel® Pentium® Gold
Component for	PC
CPU fan connector	Yes
Depth	244
DisplayPort version	1.4
DisplayPorts quantity	2
Drivers included	Yes
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Front panel audio connector	Yes
Harmonized System (HS) code	84733020
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Height	51
Maximum internal memory	128
Maximum number of SMP processors	1
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Motherboard chipset	Intel B660
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Name	MB B660 S1700 MATX/PRO B660M-C D4-CSM ASUS
Number of chassis fan connectors	2
Number of COM connectors	1
Number of displays supported	3
Number of M.2 (M) slots	2
Number of memory slots	4
Number of SATA III connectors	4
Parallel processing technology support	Not supported
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Processor manufacturer	Intel
Processor socket	LGA 1700
Product colour	Green
Product Net Weight	0.6
Product type	Office
PS/2 ports quantity	2
RAID levels	0/1/10/5
RAID support	Yes
RGB LED pin header	Yes
Shipping Box Depth	27.3
Shipping Box Height	5.2
Shipping Box Weight	0.9
Shipping Box Width	6.3
Summary	ASUS PRO B660M-C D4-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory clock speeds	2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4400/4600/4800/5000
Supported memory types	DDR4-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2,SATA
Supported storage drive types	HDD & SSD
Unbuffered memory	Yes
Unit Calculated Volume	0.0008943
Unit Calculated Weight	0.9
Units per Shipping Box	1
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Vendor Homepage	https://www.asus.com/Motherboards-Components/Motherboards/CSM/Pro-B660M-C-D4-CSM/
VGA (D-Sub) ports quantity	1
Weight	634
Width	244
Windows operating systems supported	Windows 10 x64/Windows 11 x64
