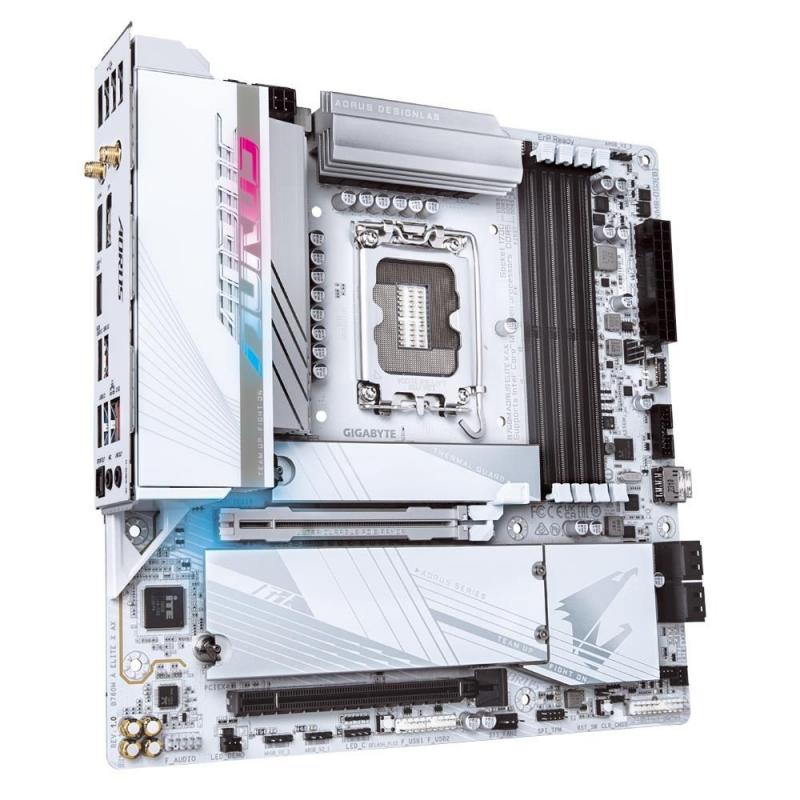

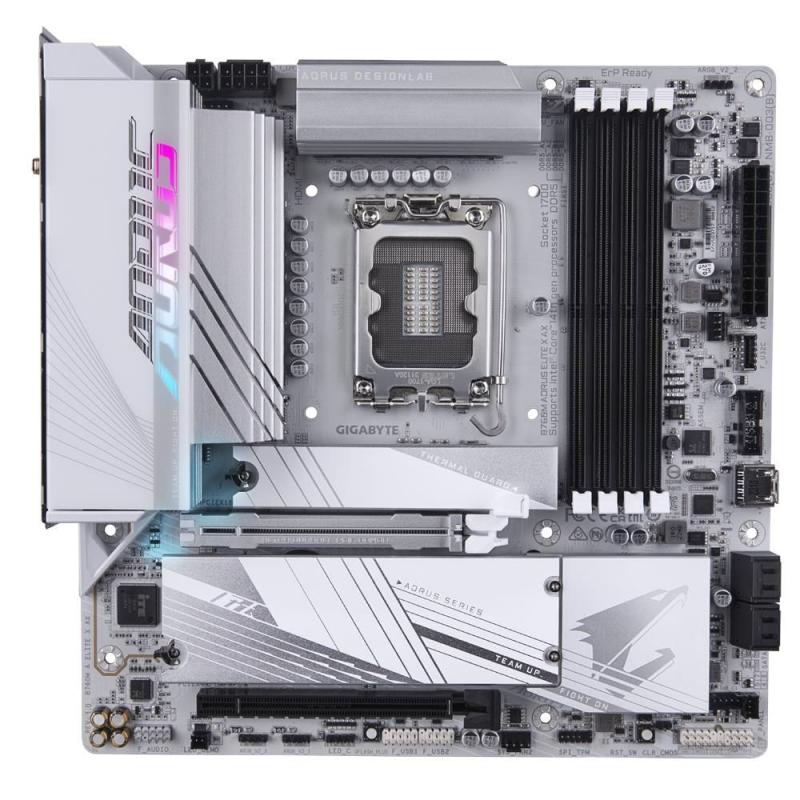

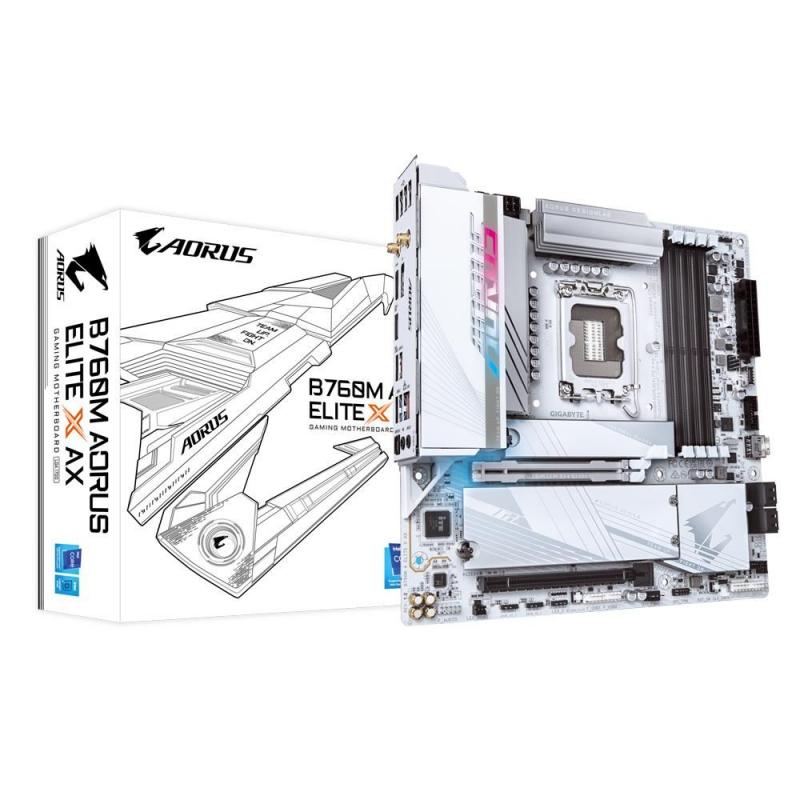

MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE

MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
MB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
  • Motherboard chipset: Intel B760 Express
  • Motherboard form factor: micro ATX
  • Processor socket: LGA 1700
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 6
    • Врз основа на 0 коментари. - Напиши коментар
    13,289ден.
    • Достапност:
    • Бренд: GIGABYTE
    • Шифра: 412657
    • Гарантен рок: 24 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1
    Specifications
    ECC сompatibilityECC & Non-ECC
    Unit Depth27
    Unit Height27
    Unit Width7
    Specs
    12V power connectorYes
    1st M.2 highest PCI Express generation4.0
    1st M.2 largest key size2280
    2nd M.2 highest PCI Express generation4.0
    2nd M.2 largest key size22110
    ACPI version5.0
    Antenna includedYes
    ATX Power connector (24-pin)Yes
    Audio chipRealtek ALC897
    Audio output channels7.1
    Batteries includedYes
    Battery technologyLithium-Manganese Dioxide (LiMnO2)
    Battery typeCR2032
    Battery weight3
    BIOS memory size256
    BIOS typeUEFI AMI
    BluetoothYes
    Bluetooth version5.3
    Bundled softwareNorton Internet Security
    Cables includedSATA
    Category CodeMBI
    Clear CMOS buttonYes
    Clear CMOS jumperYes
    Compatible processor seriesIntel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
    Component forPC
    Country of originChina
    CPU fan connectorYes
    Depth244
    Desktop Management Interface (DMI) version2.7
    DirectX version12.0
    Discrete graphics supportYes
    DisplayPort version1.2
    DisplayPorts quantity1
    EPS power connector (8-pin)Yes
    Ethernet interface type2.5 Gigabit Ethernet
    Ethernet LANYes
    Ethernet LAN (RJ-45) ports1
    Front panel audio connectorYes
    Front panel connectorYes
    HDCPYes
    HDMI ports quantity1
    Headphone outputs1
    Height35
    Lithium weight per battery0.07
    Maximum internal memory256
    Maximum number of SMP processors1
    Maximum resolution4096 x 2304
    Memory channelsDual-channel
    Memory slots typeDIMM
    Microphone inYes
    ModelB760M AORUS ELITE X AX
    Motherboard chipsetIntel B760 Express
    Motherboard chipset familyIntel
    Motherboard form factormicro ATX
    NameMB B760 S1700 MATX/B760M AORUS ELITEX AX GIGABYTE
    Number of battery cells1
    Number of chassis fan connectors3
    Number of HDDs supported4
    Number of M.2 (M) slots2
    Number of memory slots4
    Number of SATA III connectors4
    Number of storage drives supported6
    Package depth268
    Package height68
    Package weight1862
    Package width270
    Parallel processing technology supportNot supported
    PC health monitoringFan/Temperature/Voltage/Water cooling
    PCI Express x16 (Gen 4.x) slots1
    PCI Express x16 (Gen 5.x) slots1
    Peripheral (Molex) power connectors (4-pin)1
    Power source typeATX
    Processor manufacturerIntel
    Processor socketLGA 1700
    Product colourWhite
    Product Net Weight1.4
    Product typeOffice
    Products per shipping (inner) case1
    RAID levels0/1/10/5
    RAID supportYes
    RGB LED pin headerYes
    S/PDIF out connectorYes
    S/PDIF out portYes
    Shipping Box Depth27
    Shipping Box Height27
    Shipping Box Weight1.78
    Shipping Box Width7
    SummaryGIGABYTE B760M AORUS ELITE X AX Motherboard - Supports Intel Core 14th Gen CPUs, 14+1+1 phases VRM, up to 8266MHz DDR5 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
    Supported memory clock speed (max)8266
    Supported memory clock speeds4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266
    Supported memory typesDDR5-SDRAM
    Supported processor socketsLGA 1700
    Supported storage drive interfacesM.2,SATA III
    Supported storage drive typesHDD & SSD
    System Management BIOS (SMBIOS) version2.7
    Thunderbolt headers2
    Top Wi-Fi standardWi-Fi 6E (802.11ax)
    Total number of SATA connectors4
    TPM connectorYes
    Unbuffered memoryYes
    Unit Calculated Volume0.005103
    Unit Calculated Weight1.78
    Units per Shipping Box1
    USB 2.0 connectors2
    USB 2.0 ports quantity4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
    USB 3.2 Gen 2 (3.1 Gen 2) connectors1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
    USB 3.2 Gen 2x2 Type-C ports quantity1
    USB connector typeUSB Type-A/USB Type-C
    Vendor Homepagehttps://www.gigabyte.com/
    Warranty period3
    Wi-FiYes
    Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
    Width244
    WiFi-AP antenna jack2
    Windows operating systems supportedWindows 11 x64
    WLAN controller modelIntel Wi-Fi 6E AX211
