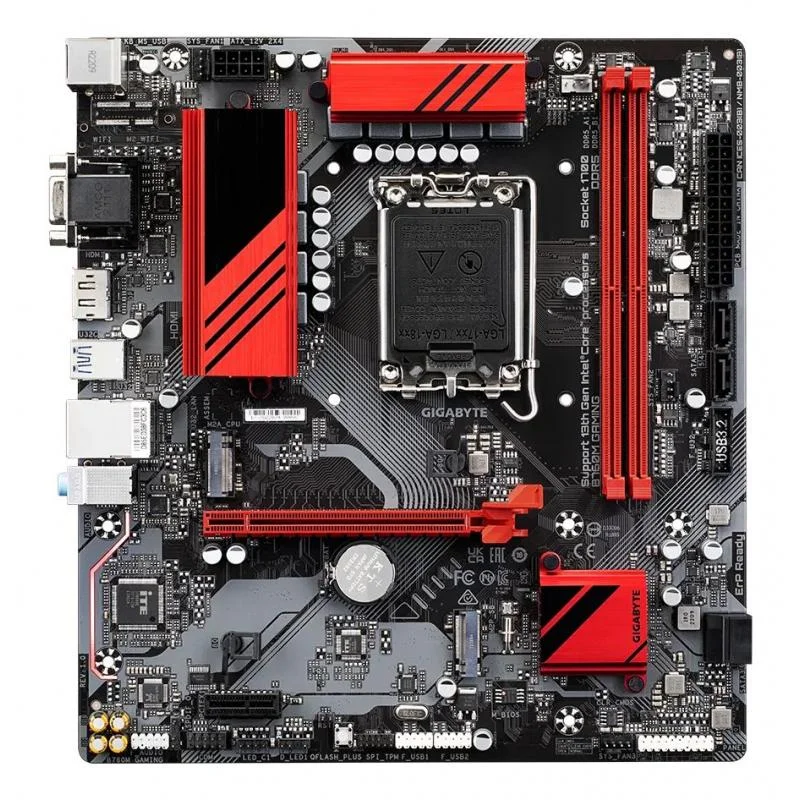

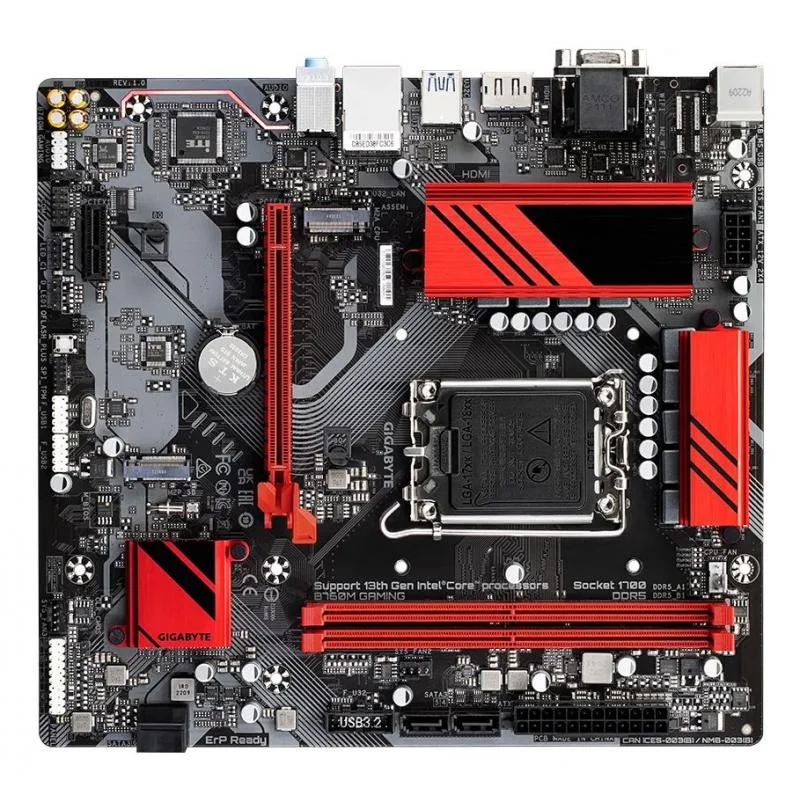

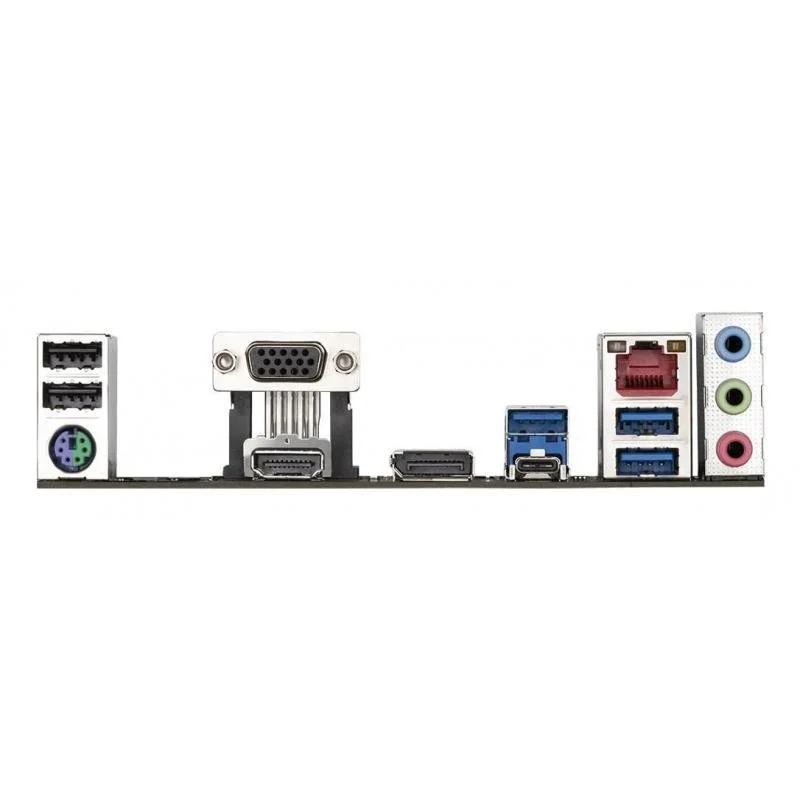

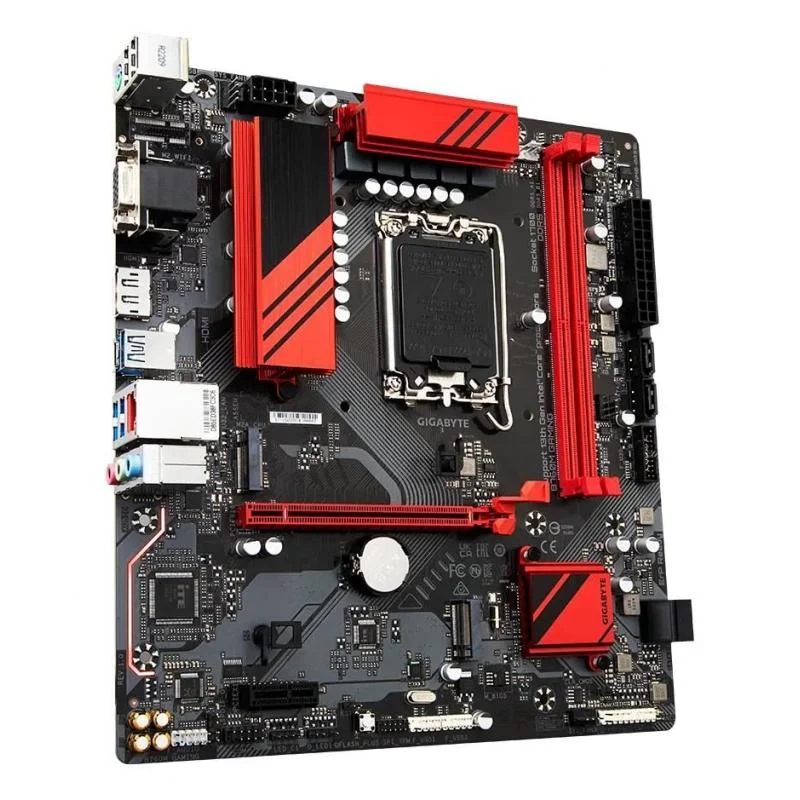

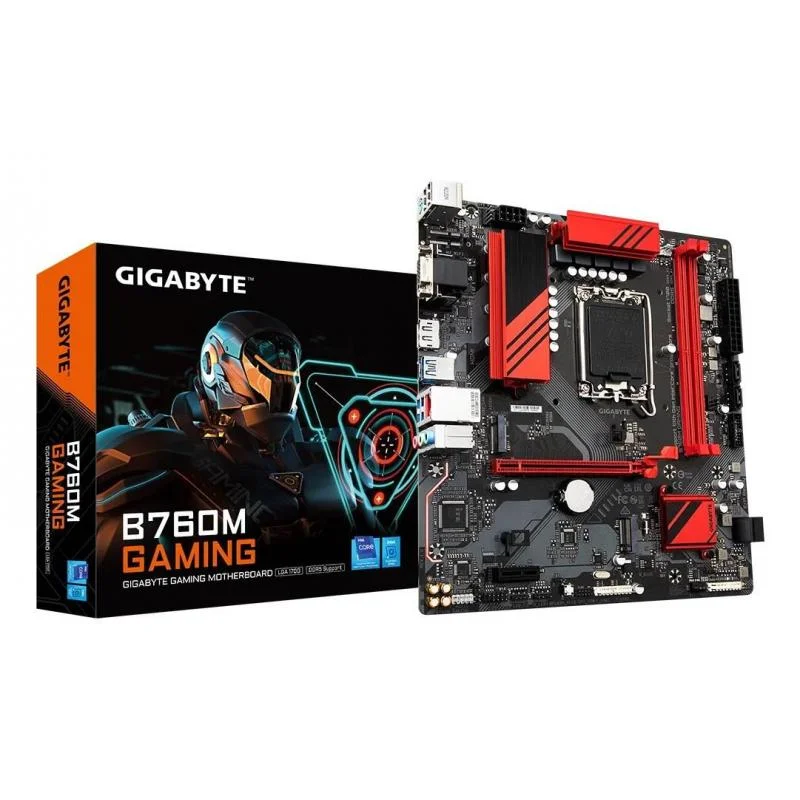

MB B760 S1700 MATX/B760M GAMING GIGABYTE
8,431ден.
- Достапност:
- Бренд: GIGABYTE
- Шифра: 412658
- Гарантен рок: 24 месеци
- Достава: 13-16 дена
1
| Specifications | |
| ECC сompatibility | ECC & Non-ECC |
| Unit Depth | 29 |
| Unit Height | 5 |
| Unit Width | 29 |
| Specs | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| BIOS memory size | 128 |
| BIOS type | UEFI AMI |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Cables included | SATA |
| Category Code | MBI |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Component for | PC |
| Cooling type | Active |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 225 |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| Discrete graphics support | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 3 |
| Height | 35 |
| Lithium weight per battery | 0.07 |
| Maximum internal memory | 128 |
| Maximum number of SMP processors | 1 |
| Maximum resolution | 4096 x 2304 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | B760M GAMING |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Name | MB B760 S1700 MATX/B760M GAMING GIGABYTE |
| Number of battery cells | 1 |
| Number of displays supported | 3 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Package depth | 268 |
| Package height | 68 |
| Package weight | 1153 |
| Package width | 270 |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Black |
| Product Net Weight | 0.7 |
| Product type | Office |
| Products per shipping (inner) case | 1 |
| PS/2 ports quantity | 1 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| Shipping Box Depth | 29 |
| Shipping Box Height | 5 |
| Shipping Box Weight | 1 |
| Shipping Box Width | 29 |
| Summary | GIGABYTE B760M GAMING Motherboard - Supports Intel Core 14th CPUs, 6+2+1 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C |
| Supported memory clock speed (max) | 8000 |
| Supported memory clock speeds | 4000/4800/4866/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Calculated Volume | 0.004205 |
| Unit Calculated Weight | 1 |
| Units per Shipping Box | 1 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB connector type | USB Type-A/USB Type-C |
| Vendor Homepage | https://www.gigabyte.com/ |
| VGA (D-Sub) ports quantity | 1 |
| Warranty period | 3 |
| Width | 244 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
