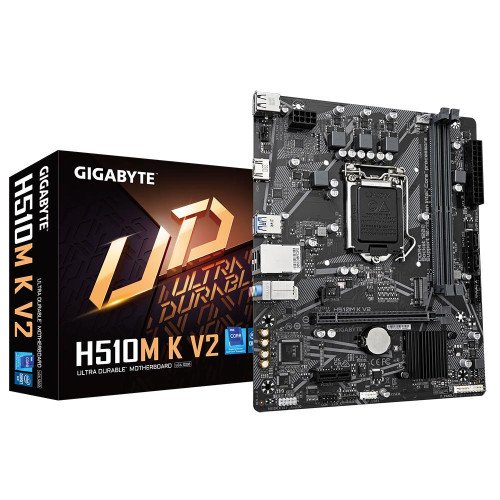

H510M K V2

Technical Specifications

• Summary: GIGABYTE H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, Supported storage drive types: SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
• Vendor Homepage: https://www.gigabyte.com/

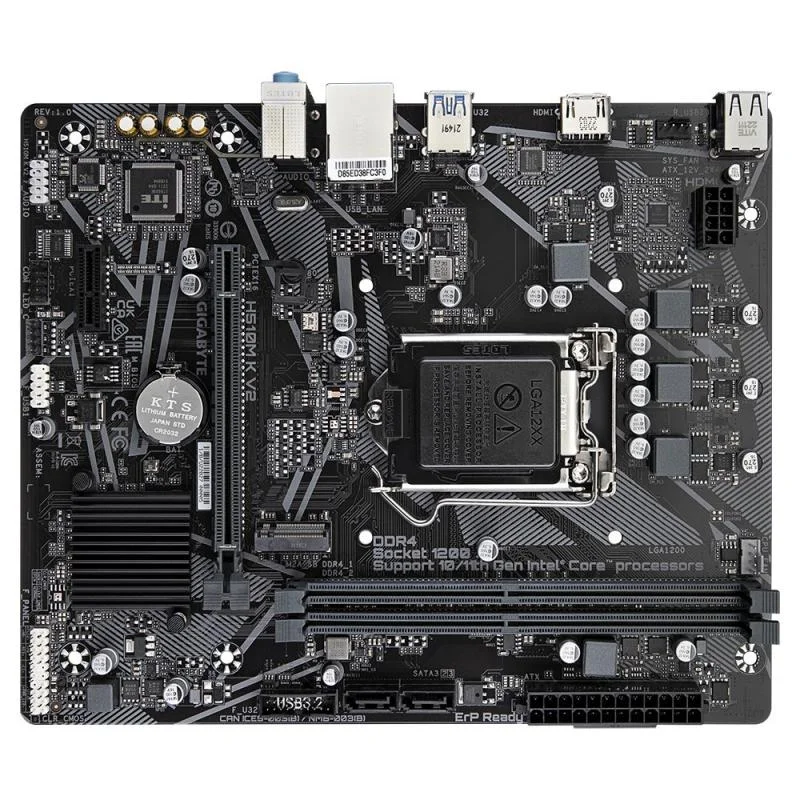

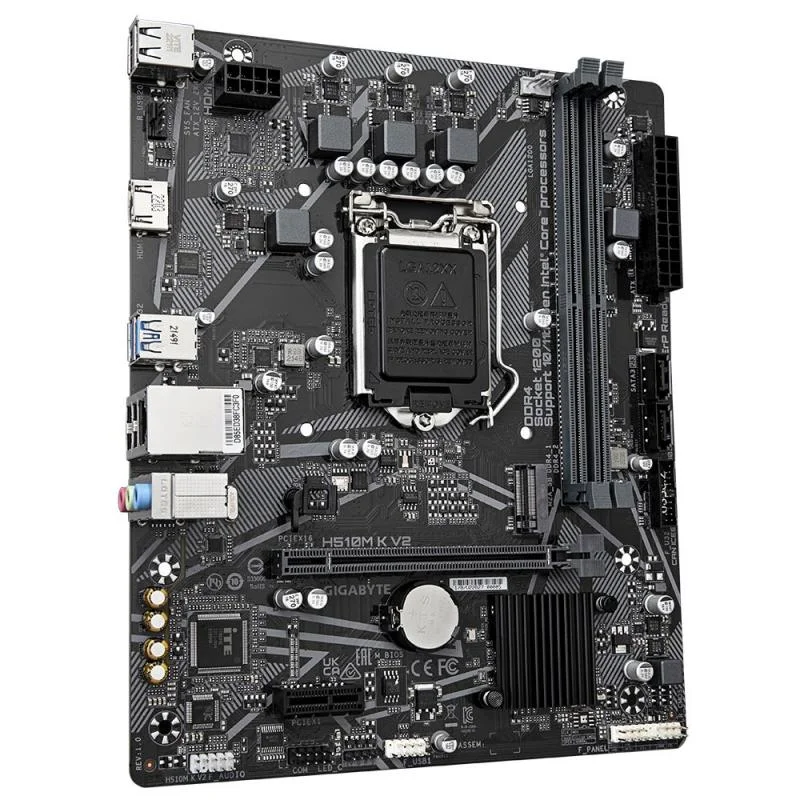

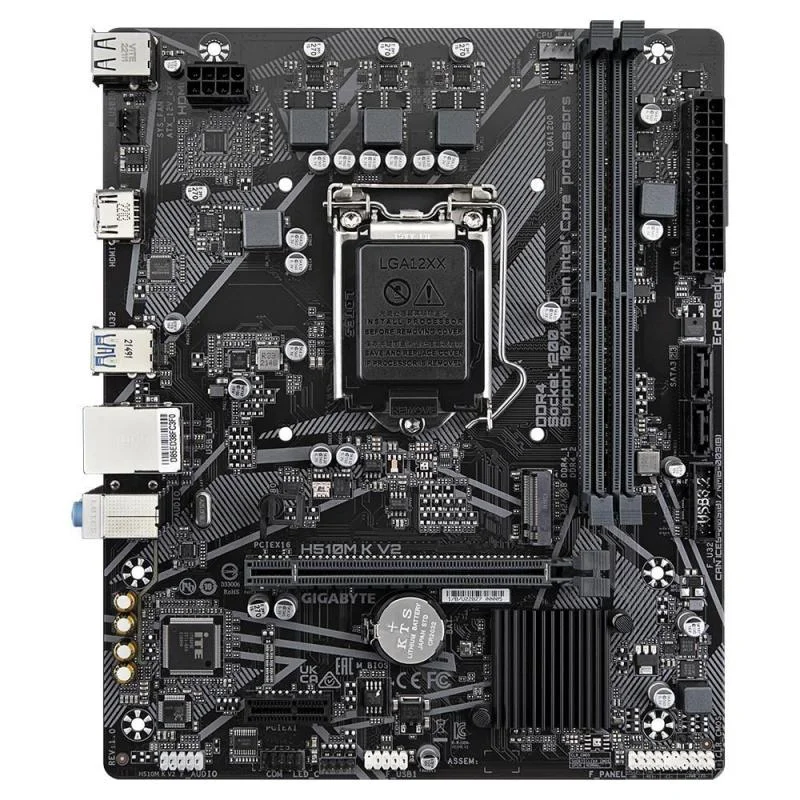

• Name: MB H470 S1200 MATX/H510M K V2 GIGABYTE
• Category Code: MBI
• Model: H510M K V2
• Motherboard chipset: Intel H470 Express
• Product colour: Brown
• PC health monitoring: Fan/Temperature/Voltage
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Cooling type: Active
• Motherboard chipset family: Intel
• Power source type: ATX
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Processor manufacturer: Intel
• Processor socket: LGA 1200 (Socket H5)
• Compatible processor series: Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9
• Maximum number of SMP processors: 1
• Supported processor sockets: LGA 1200 (Socket H5)
• Maximum internal memory supported by processor: 64
• Supported memory types: DDR4-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Supported memory clock speeds: 2133/2400/2666/2933/3000/3200
• Supported memory clock speed (max): 3200
• Maximum internal memory: 64
• Supported memory module capacities: 12GB/16GB/1GB/2GB/32GB/4GB/8GB
• Supported storage drive types: SSD
• Supported storage drive interfaces: M.2,PCI Express 3.0,SATA
• Number of HDDs supported: 2
• Number of storage drives supported: 3
• On-board graphics card: Yes
• Graphics card family: Intel
• Graphics card: HD Graphics
• Maximum resolution: 4096 x 2160
• HDCP: Yes
• DirectX version: 12.0
• USB 2.0 connectors: 1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 2
• Total number of SATA connectors: 2
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• Power fan connector: Yes
• CPU fan connector: Yes
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• Serial port headers: 1
• RGB LED pin header: Yes

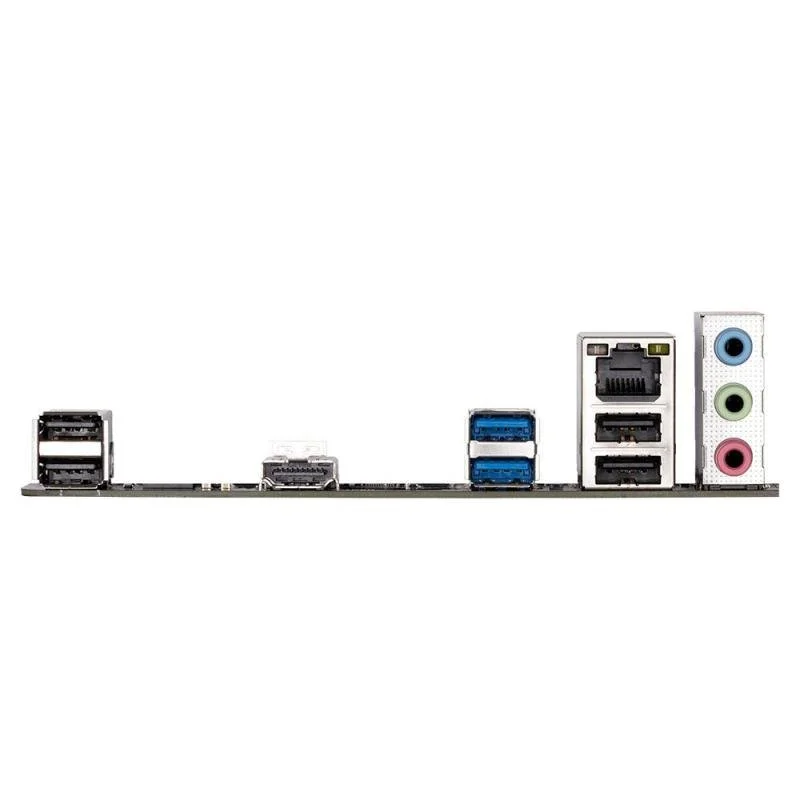

• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• Headphone outputs: 1
• Line-in: Yes
• Microphone in: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Mini PCI Express slots: 1
• BIOS type: UEFI AMI
• BIOS memory size: 128
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Clear CMOS button: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Country of origin: China
• Products per shipping (inner) case: 1
• Battery weight: 3
• Lithium weight per battery: 0.07
• Package width: 265
• Number of battery cells: 1
• Package depth: 235
• Package height: 52
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Package weight: 683
• Battery type: CR2032
• Width: 226
• Depth: 185
• Height: 35
• Batteries included: Yes
• Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
• Warranty period: 3
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003915
• Unit Calculated Weight: 1
