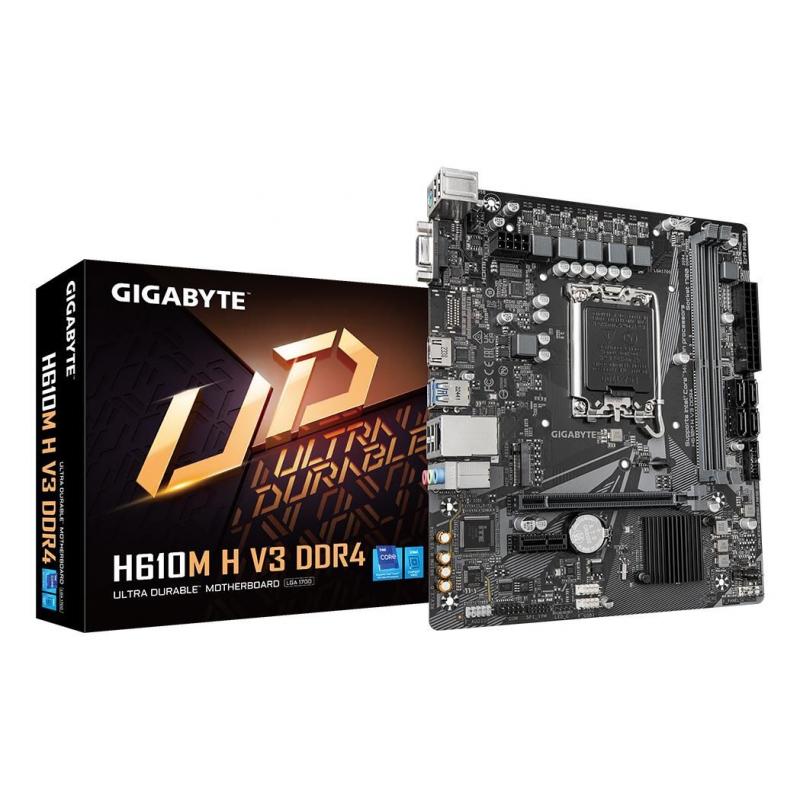

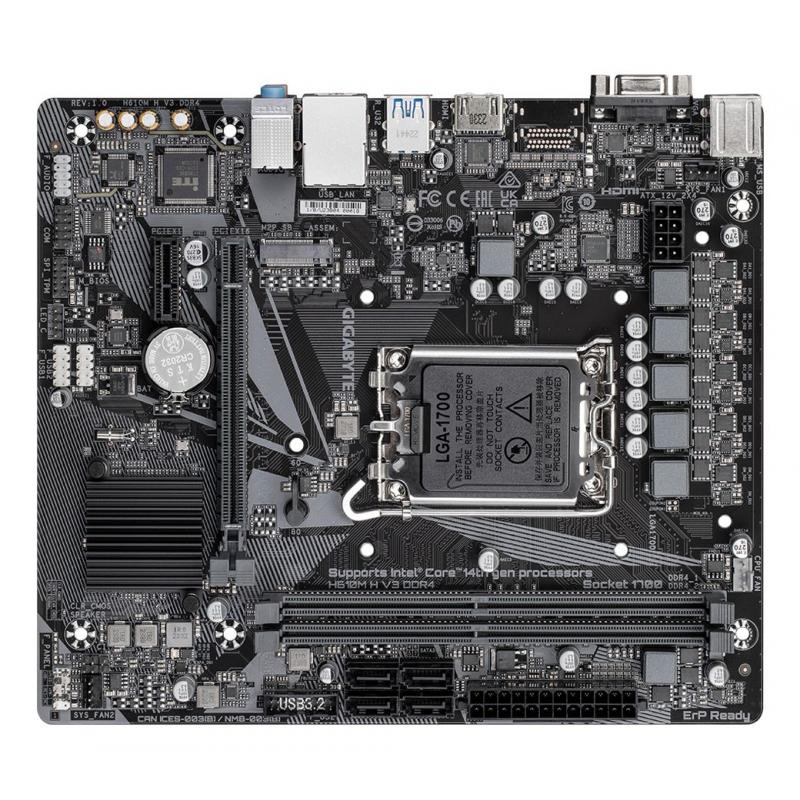

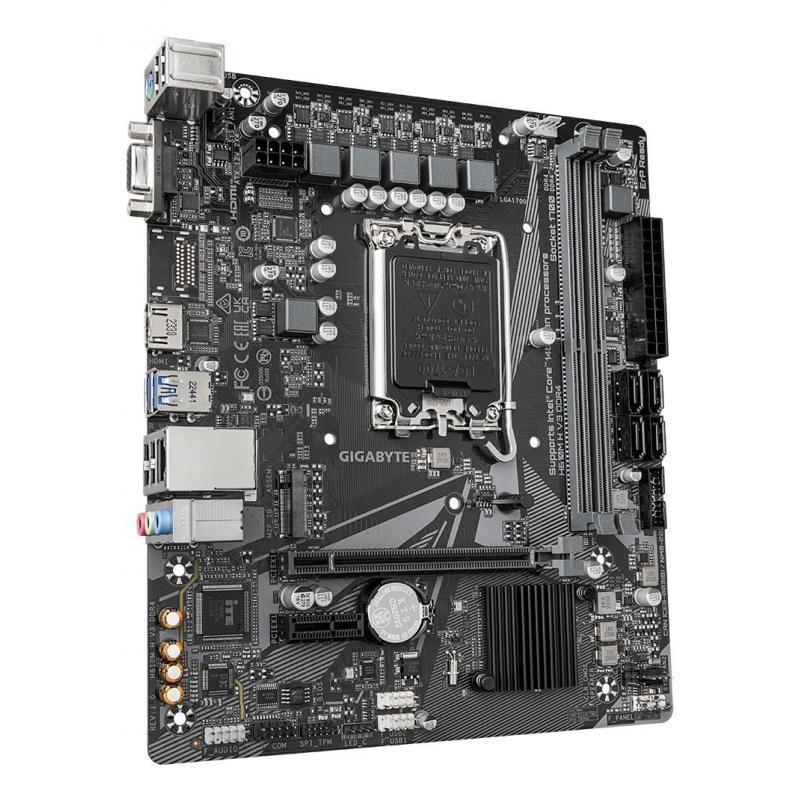

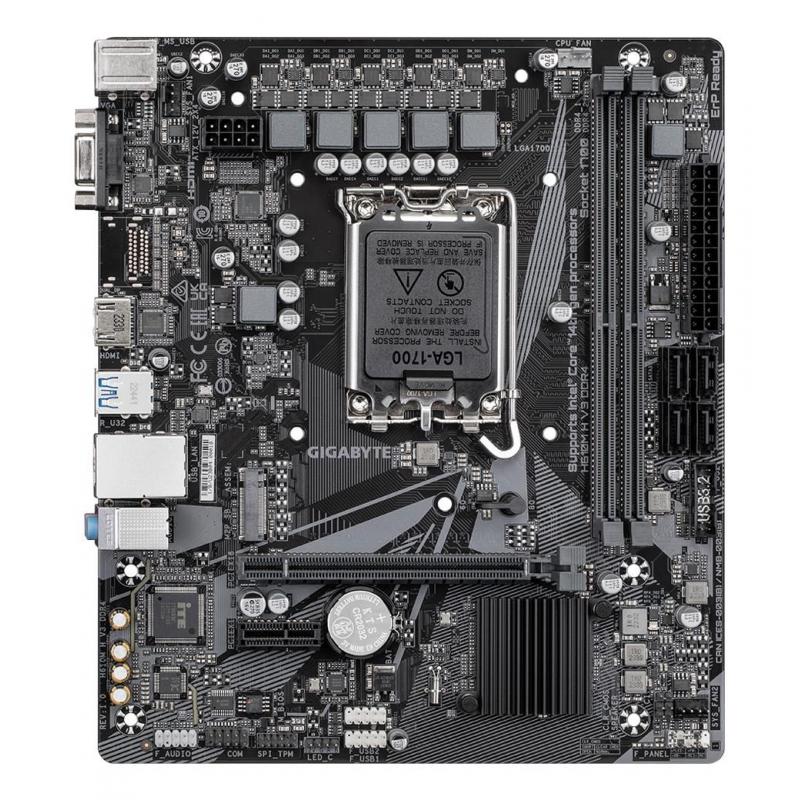

MB H610 S1700 MATX/H610M H V3 DDR4 GIGABYTE
4,530ден.
- Достапност:
- Бренд: GIGABYTE
- Шифра: 426844
- Гарантен рок: 24 месеци
- Достава: 13-16 дена
1
| Specifications | |
| ECC сompatibility | ECC & Non-ECC |
| Unit Depth | 26.5 |
| Unit Height | 5.5 |
| Unit Width | 23.5 |
| Specs | |
| 12V power connector | Yes |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| BIOS memory size | 128 |
| BIOS type | UEFI AMI |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Cables included | SATA |
| Category Code | MBI |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Component for | PC |
| Cooling type | Active |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 215 |
| Desktop Management Interface (DMI) version | 2.7 |
| DisplayPorts quantity | 2 |
| DVI-D ports quantity | 1 |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Graphics card | HD Graphics |
| Graphics card family | Intel |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 3 |
| Height | 35 |
| Lithium weight per battery | 0.07 |
| Maximum internal memory | 64 |
| Maximum resolution | 4096 x 2304 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | H610M H V3 DDR4 |
| Motherboard chipset | Intel H610 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Name | MB H610 S1700 MATX/H610M H V3 DDR4 GIGABYTE |
| Number of battery cells | 1 |
| Number of HDDs supported | 1 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| Package depth | 235 |
| Package height | 52 |
| Package weight | 684 |
| Package width | 265 |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Black |
| Product Net Weight | 0.68 |
| Product type | Office |
| Products per shipping (inner) case | 1 |
| PS/2 ports quantity | 1 |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| Shipping Box Depth | 56.5 |
| Shipping Box Height | 26 |
| Shipping Box Weight | 7.53 |
| Shipping Box Width | 28 |
| Summary | GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A |
| Supported memory clock speed (max) | 3200 |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200 |
| Supported memory module capacities | 12GB/16GB/1GB/2GB/32GB/4GB/8GB |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Calculated Volume | 0.004113 |
| Unit Calculated Weight | 0.753 |
| Units per Shipping Box | 10 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB connector type | USB Type-A |
| Vendor Homepage | https://www.gigabyte.com/ |
| VGA (D-Sub) ports quantity | 1 |
| Warranty period | 3 |
| Width | 230 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
