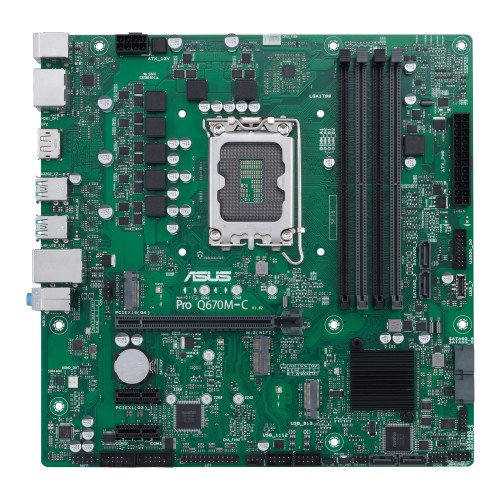

PRO Q670M-C-CSM

Technical Specifications

• Summary: ASUS PRO Q670M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
• Vendor Homepage: https://www.asus.com/Motherboards-Components/Motherboards/CSM/Pro-Q670M-C-CSM/
• Name: MB Q670 S1700 MATX/PRO Q670M-C-CSM ASUS
• Category Code: MBI
• Model: PRO Q670M-C-CSM
• Motherboard chipset: Intel Q670
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Cooling type: Active
• Motherboard chipset family: Intel
• Power source type: ATX
• Number of mounting holes: 8
• Windows operating systems supported: Windows 10/Windows 11
• Compatible operating systems: Windows 11 64-bit, Windows 10 64-bit
• Processor manufacturer: Intel
• Processor socket: LGA 1700
• Compatible processor series: Intel Pentium G/Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9
• Supported processor sockets: LGA 1700
• Maximum internal memory supported by processor: 128
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 4800
• Maximum internal memory: 128
• Supported memory module capacities: 16GB/32GB/4GB/8GB
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of HDDs supported: 6
• Number of storage drives supported: 8
• RAID support: Yes
• RAID levels: 0/1/10/5
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 6
• Audio connector: Yes
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 2
• EPS power connector (8-pin): Yes
• Number of COM connectors: 2
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 2
• DisplayPort version: 1.4
• Headphone outputs: 2
• Microphone in: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• PCI Express x1 (Gen 3.x) slots: 2
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 2
• BIOS memory size: 256
• Harmonized System (HS) code: 84733020
• Width: 244
• Depth: 244
• Height: 51
• Cables included: SATA
• Drivers included: Yes
• Weight: 634
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00312
• Unit Calculated Weight: 1
