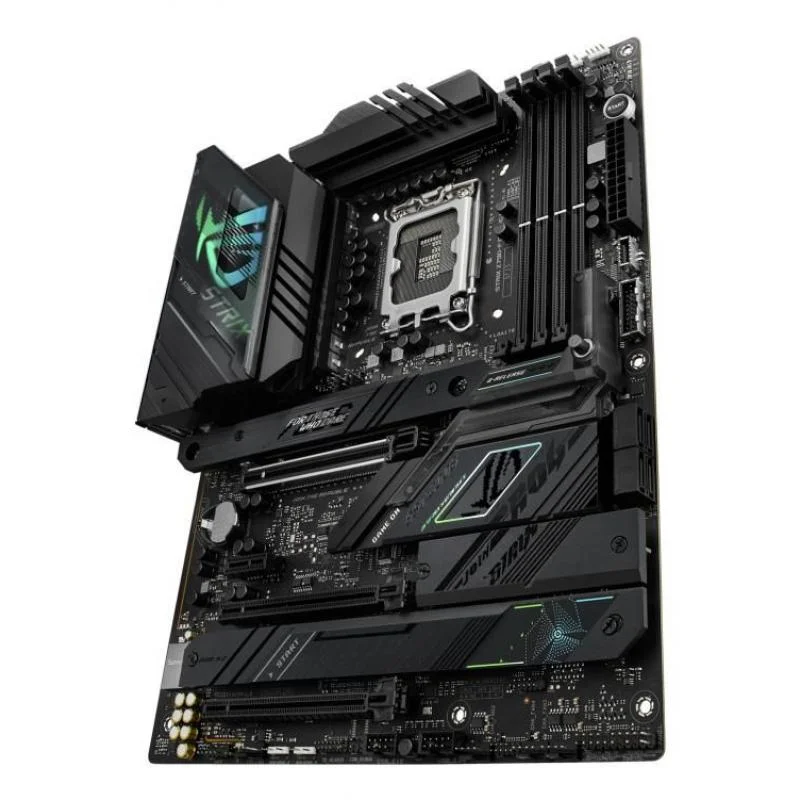

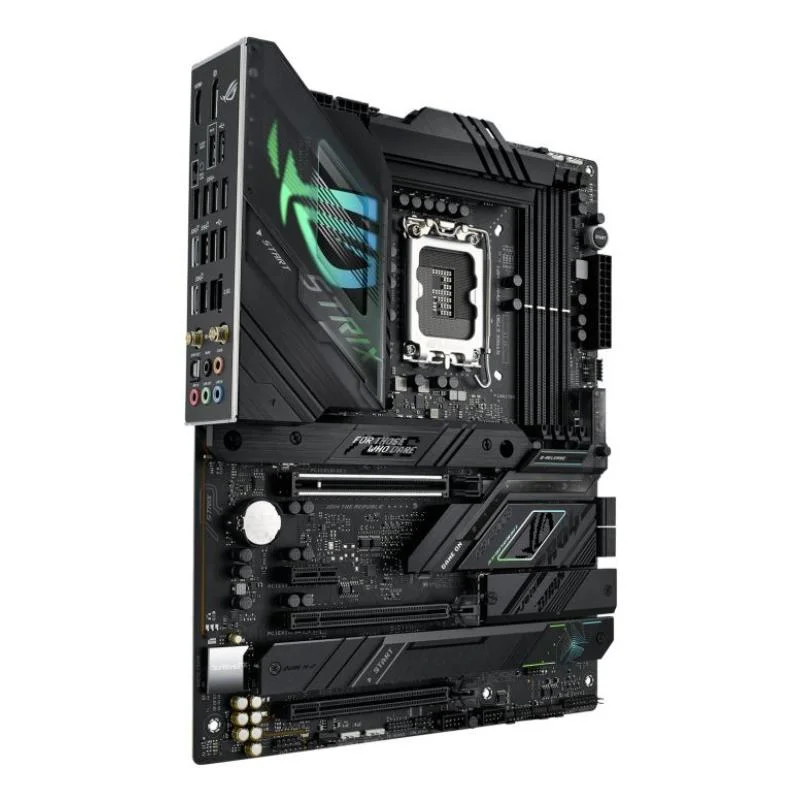

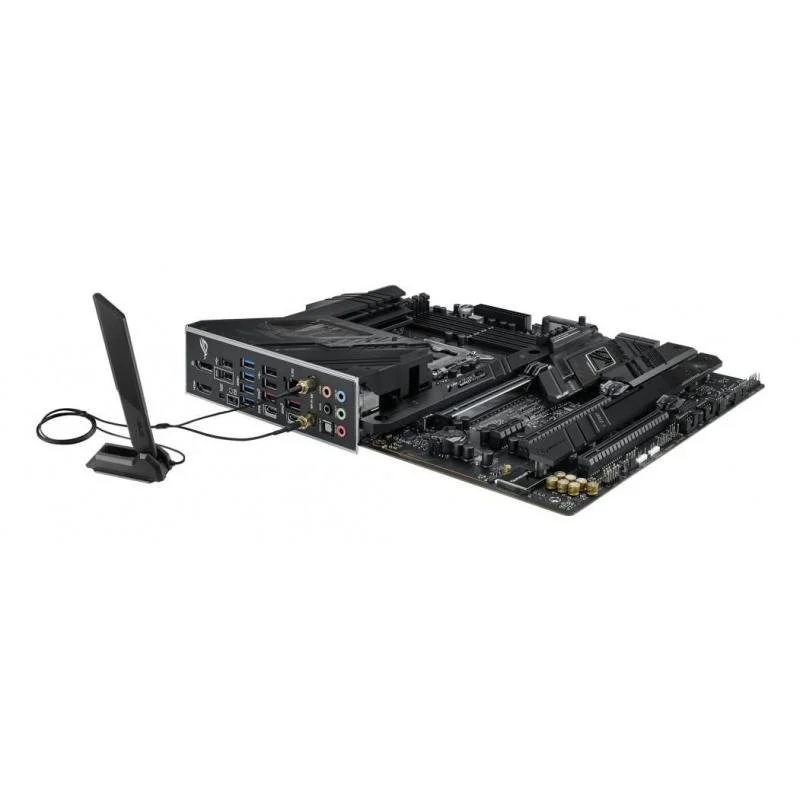

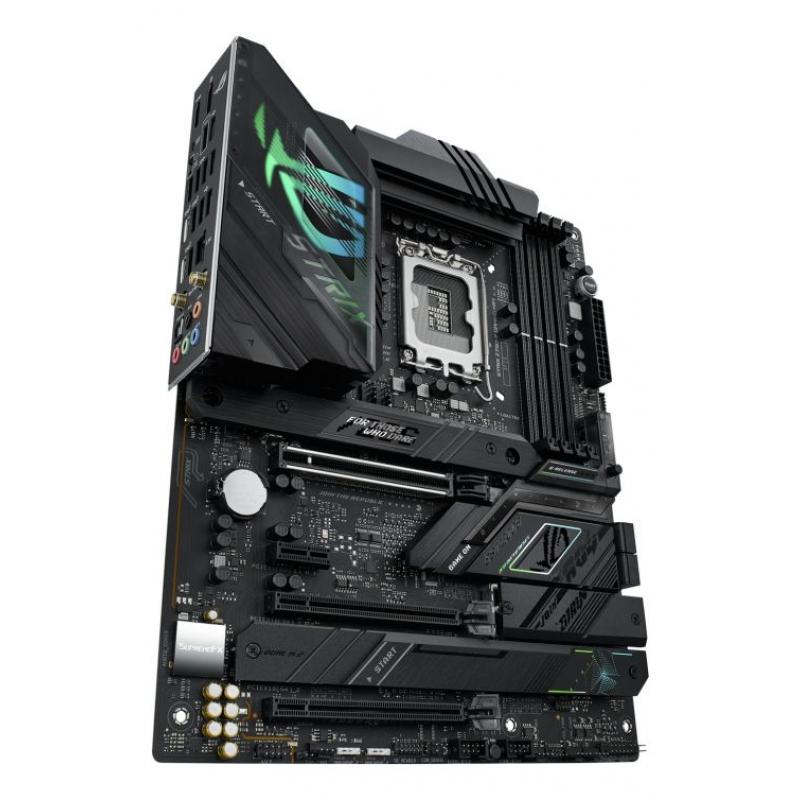

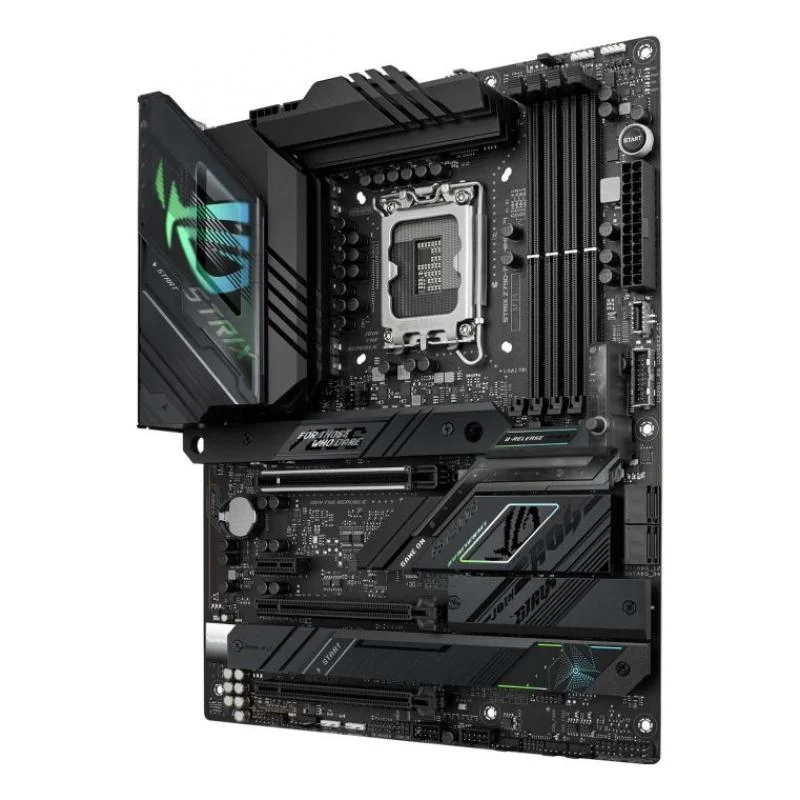

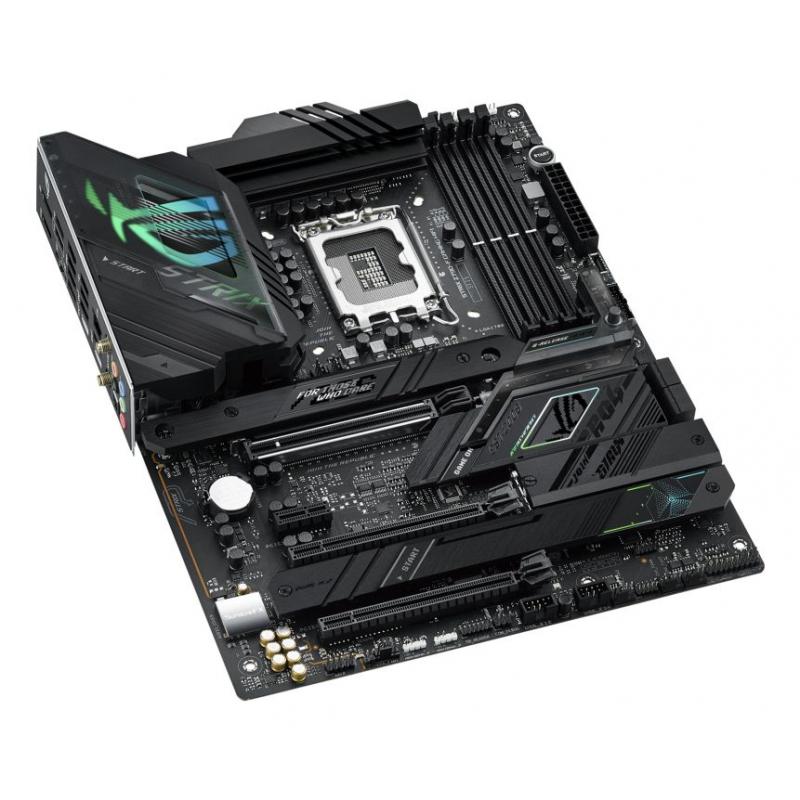

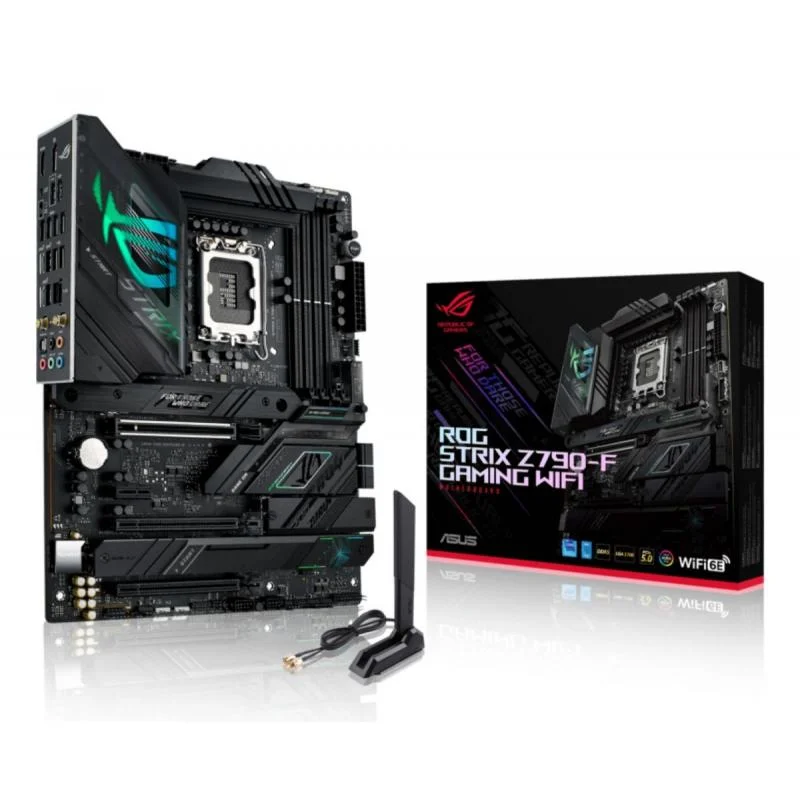

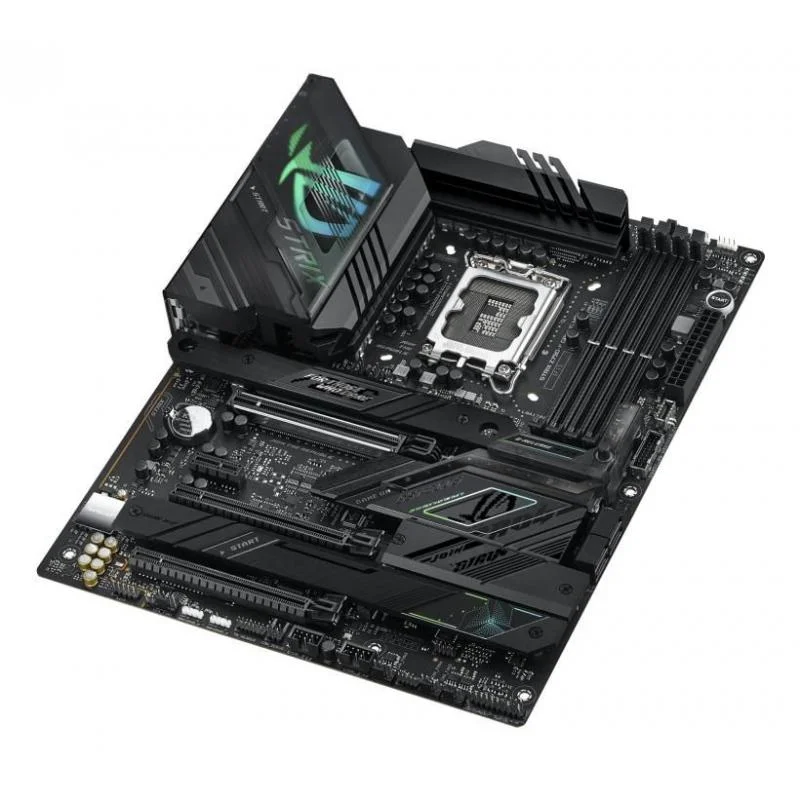

MB Z790 S1700 ATX/ROG STRIX Z790-F GAM WIFI ASUS
32,534ден.
- Достапност:
- Бренд: ASUS
- Шифра: 394178
- Гарантен рок: 36 месеци
- Достава: 13-16 дена
1
| Specifications | |
| ECC сompatibility | Non-ECC |
| Unit Depth | 30 |
| Unit Height | 10 |
| Unit Width | 30 |
| Specs | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 |
| Back-to-BIOS button | Yes |
| BIOS memory size | 256 |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Cables included | SATA |
| Category Code | MBI |
| Clear CMOS button | Yes |
| Compatible processor series | Intel® Celeron®/Intel® Pentium® Gold |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 244 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Maximum internal memory | 192 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | ROG STRIX Z790-F GAMING WIFI |
| Motherboard chipset | Intel Z790 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Name | MB Z790 S1700 ATX/ROG STRIX Z790-F GAM WIFI ASUS |
| Number of chassis fan connectors | 5 |
| Number of M.2 (M) slots | 4 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Package depth | 293 |
| Package height | 290 |
| Package weight | 2247 |
| Package width | 368 |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | LGA 1700 |
| Product colour | Black |
| Product Net Weight | 1.7 |
| Product type | Office |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Shipping Box Depth | 30 |
| Shipping Box Height | 10 |
| Shipping Box Weight | 3 |
| Shipping Box Width | 30 |
| Summary | ASUS ROG STRIX Z790-F GAMING WIFI. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Supported memory clock speed (max) | 7800 |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt headers | 1 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Unbuffered memory | Yes |
| Unit Calculated Volume | 0.009 |
| Unit Calculated Weight | 3 |
| Units per Shipping Box | 1 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| User guide | Yes |
| Vendor Homepage | https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-model/ |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Width | 305 |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 10/Windows 11 |
