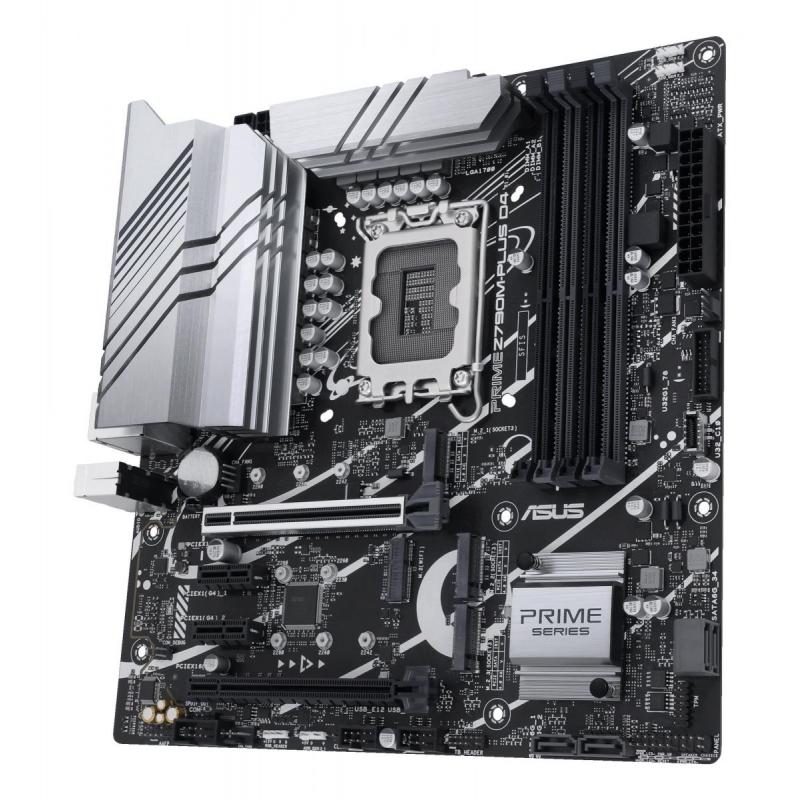

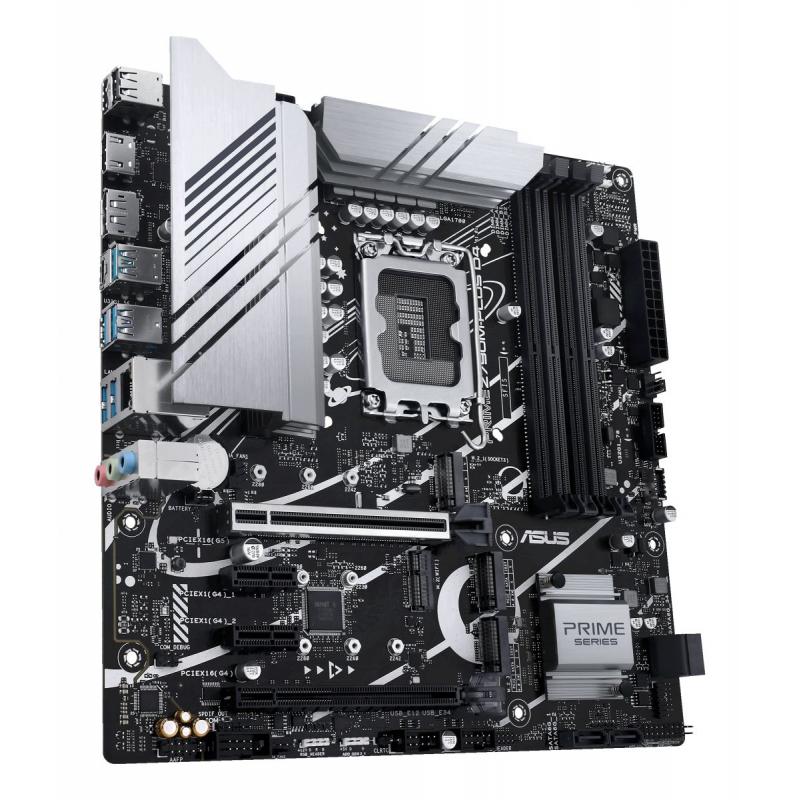

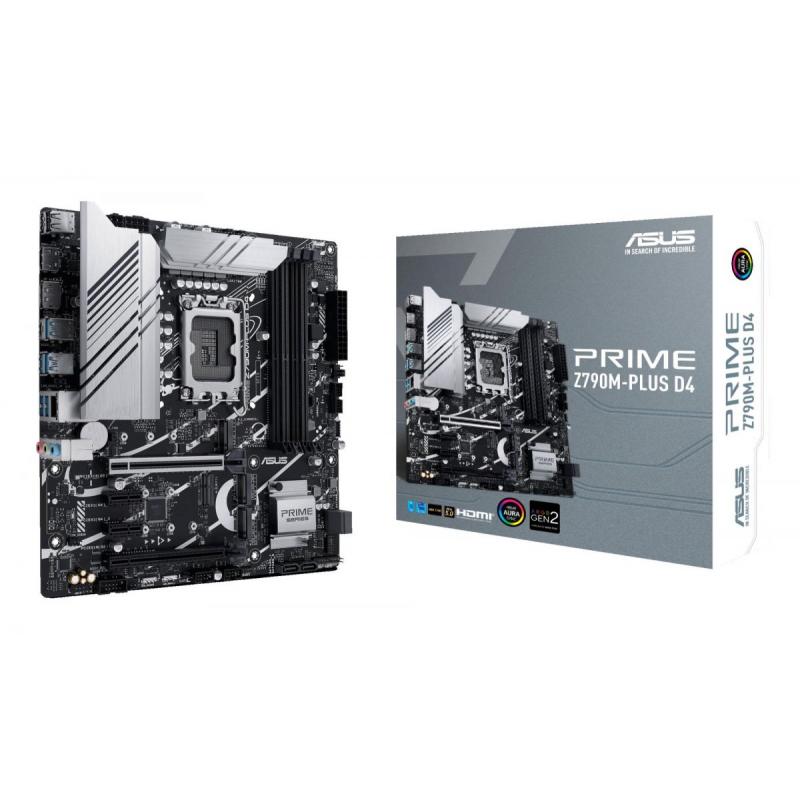

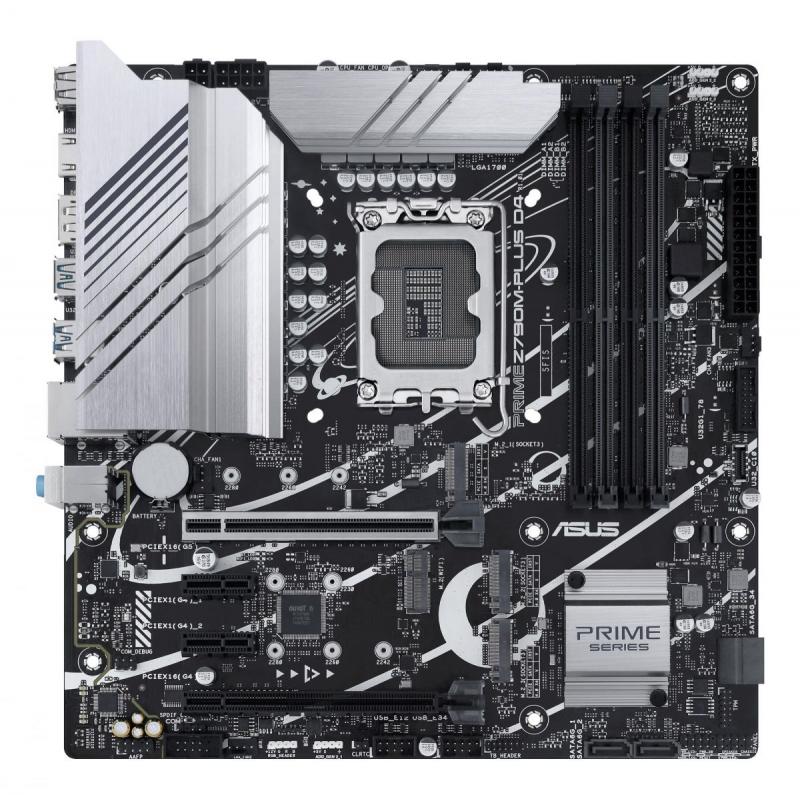

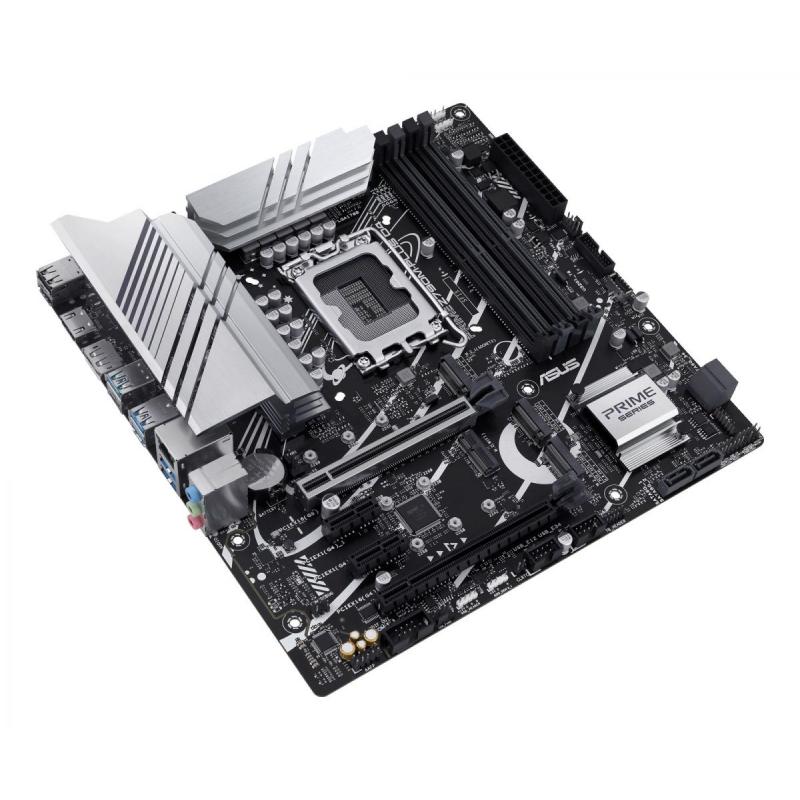

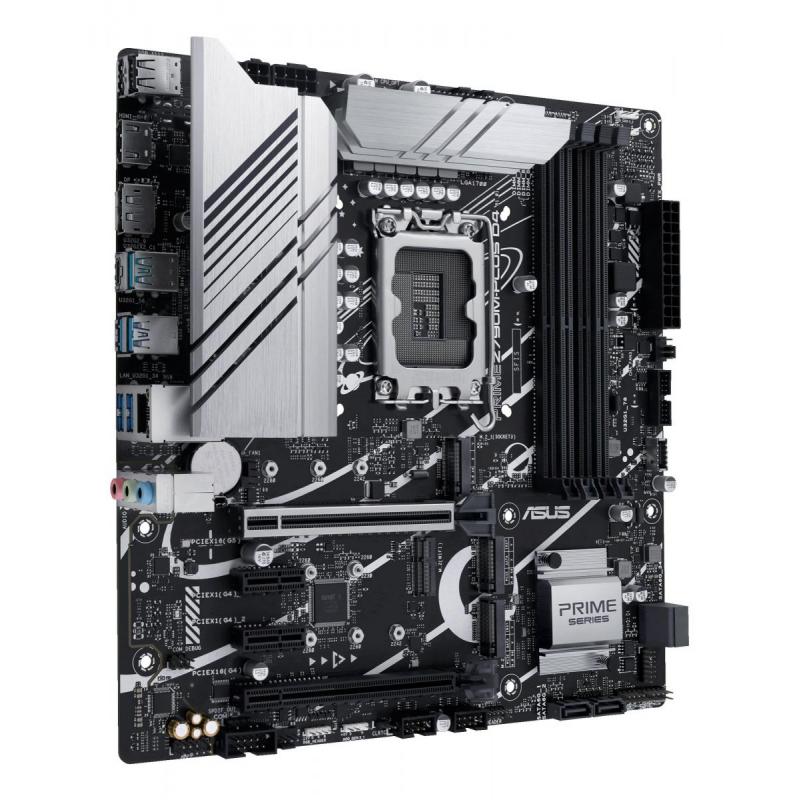

MB Z790 S1700 MATX/PRIME Z790M-PLUS D4 ASUS
16,206ден.
- Достапност:
- Бренд: ASUS
- Шифра: 385622
- Гарантен рок: 36 месеци
- Достава: 13-16 дена
1
| Specifications | |
| ECC сompatibility | Non-ECC |
| Unit Depth | 36 |
| Unit Height | 30 |
| Unit Width | 30 |
| Specs | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 |
| BIOS memory size | 192 |
| BIOS type | UEFI AMI |

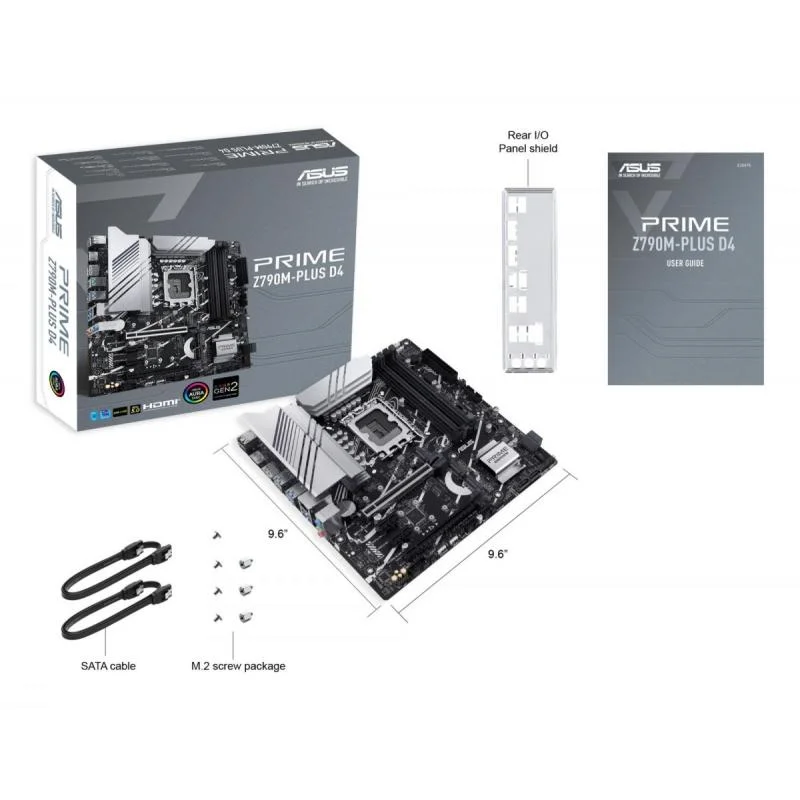

| Cables included | SATA |
| Category Code | MBI |
| Chassis intrusion connector | Yes |
| Clear CMOS button | Yes |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 244 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Maximum internal memory | 128 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | PRIME Z790M-PLUS D4 |
| Motherboard chipset | Intel Z790 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Name | MB Z790 S1700 MATX/PRIME Z790M-PLUS D4 ASUS |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Number of M.2 (E) slots | 1 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Package depth | 67.5 |
| Package height | 266.5 |
| Package weight | 970 |
| Package width | 275 |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product Net Weight | 1 |
| Product type | Office |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Shipping Box Depth | 36 |
| Shipping Box Height | 30 |
| Shipping Box Weight | 2 |
| Shipping Box Width | 30 |
| Summary | ASUS PRIME Z790M-PLUS D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Supported memory clock speed (max) | 5333 |
| Supported memory clock speeds | 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4266/4400/4500/4600/4700/4800/5000/5066/5133/5333 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Calculated Volume | 0.0324 |
| Unit Calculated Weight | 2 |
| Units per Shipping Box | 1 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Vendor Homepage | https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790M-PLUS-D4/ |
| Wi-Fi | Yes |
| Width | 244 |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
