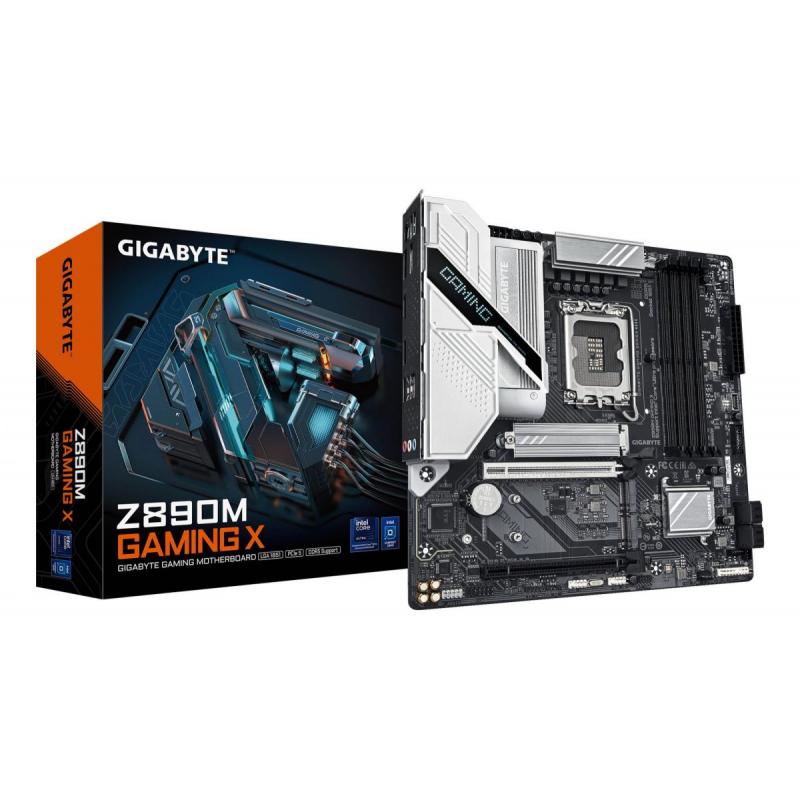

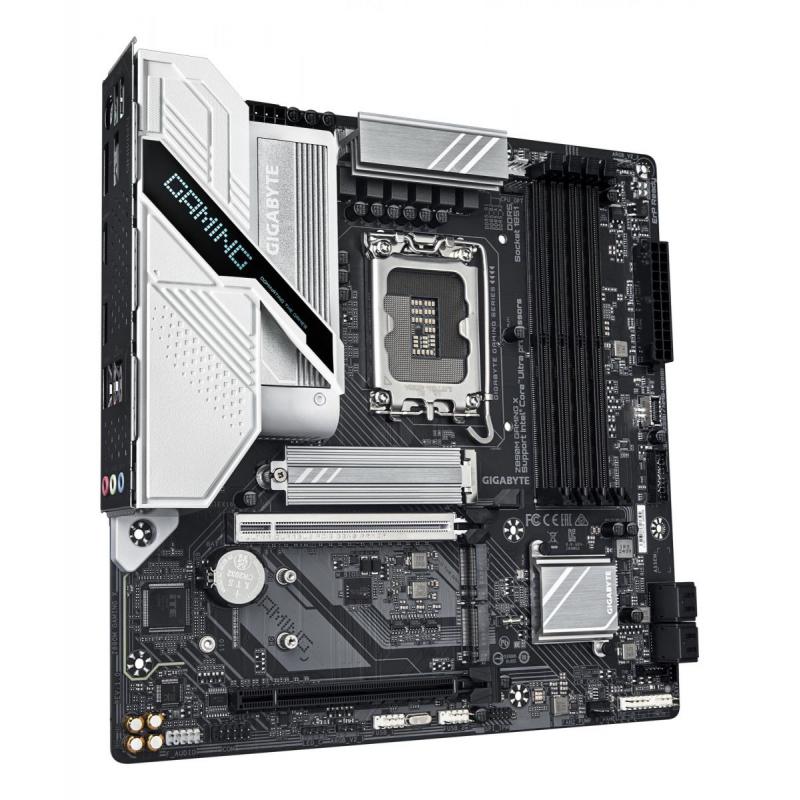

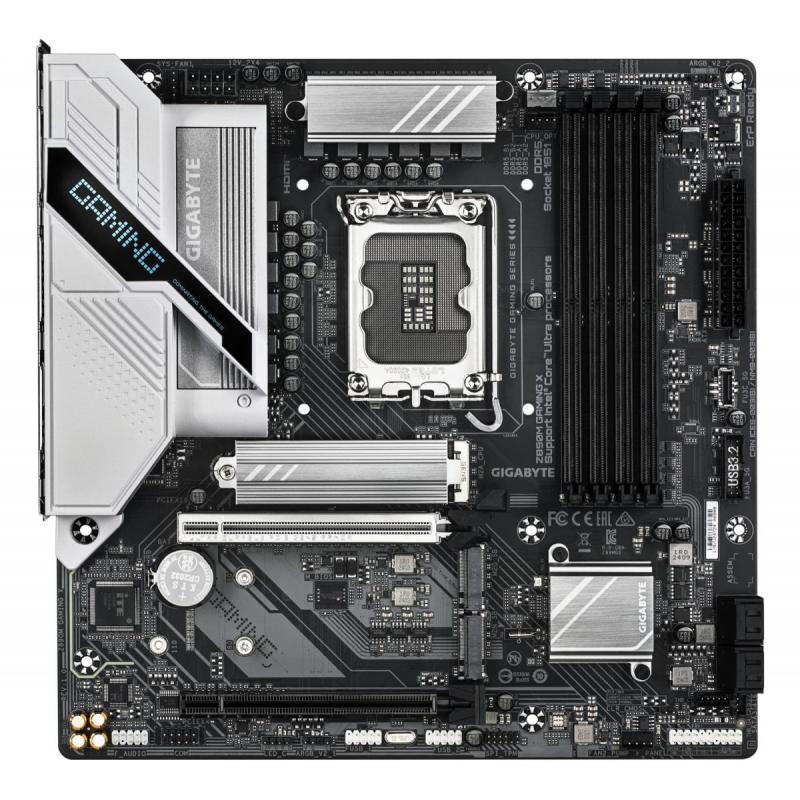

MB Z890 S1851 MATX/Z890M GAMING X GIGABYTE
14,106ден.
- Достапност:
- Бренд: GIGABYTE
- Шифра: 425882
- Гарантен рок: 24 месеци
- Достава: 13-16 дена
1
| Specifications | |
| ECC сompatibility | Non-ECC |
| Unit Depth | 30 |
| Unit Height | 56 |
| Unit Width | 38 |
| Specs | |
| 12V power connector | Yes |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| BIOS memory size | 256 |
| BIOS type | UEFI AMI |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Category Code | MBI |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Component for | PC |
| Country of origin | China |
| Depth | 244 |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPorts quantity | 2 |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Height | 35 |
| Lithium weight per battery | 0.07 |
| Maximum internal memory | 256 |
| Maximum internal memory supported by processor | 256 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | Z890M GAMING X |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Name | MB Z890 S1851 MATX/Z890M GAMING X GIGABYTE |
| Number of battery cells | 1 |
| Number of HDDs supported | 7 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 4 |
| Package depth | 268 |
| Package height | 68 |
| Package weight | 1220 |
| Package width | 270 |
| PC health monitoring | Fan/Temperature/Voltage |
| PCI Express x16 slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Product colour | Black |
| Product Net Weight | 1 |
| Product type | Office |
| Products per shipping (inner) case | 1 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Shipping Box Depth | 30 |
| Shipping Box Height | 56 |
| Shipping Box Weight | 2 |
| Shipping Box Width | 38 |
| Summary | GIGABYTE Z890M GAMING X Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 8+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Supported memory clock speed (max) | 8800 |
| Supported memory clock speeds | 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600 |
| Supported memory module capacities | 12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1851 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| Unit Calculated Volume | 0.06384 |
| Unit Calculated Weight | 2 |
| Units per Shipping Box | 1 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Vendor Homepage | https://www.gigabyte.com/ |
| Warranty period | 3 |
| Weight | 1100 |
| Width | 244 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
