M.2

Technical Specifications

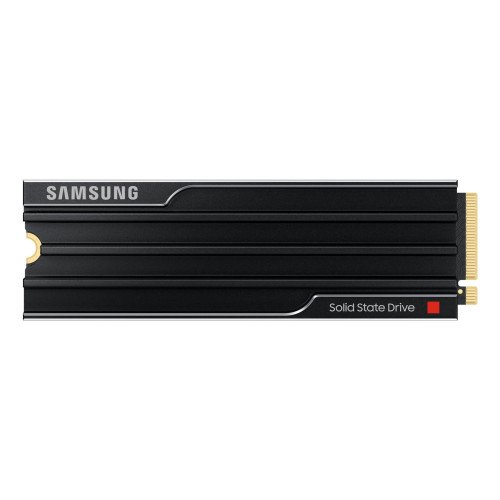

• Summary: Samsung 9100 PRO Heatsink PCIe 5.0 NVMe M.2 SSD - 1 TB. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 14700 MB/s, Write speed: 13300 MB/s, Component for: PC/Game console
• Vendor Homepage: https://www.samsung.com/uk/memory-storage/nvme-ssd/9100-pro-1tb-nvme-pcie-gen-5-with-heatsink-mz-vap1t0cw/
• Name: SSD PCIE G5 M.2 NVME 1TB W/HS/9100 PRO MZ-VAP1T0CW SAMSUNG
• Category Code: SSU
• SSD capacity: 1000
• SSD form factor: M.2
• Interface: PCI Express 5.0
• NVMe: Yes
• NVMe version: 2.0
• Memory type: V-NAND TLC
• Component for: PC/Game console
• Hardware encryption: Yes
• M.2 SSD size: 2280 (22 x 80 mm)
• Write speed: 13300
• Read speed: 14700
• Random read (4KB): 1850000
• Random write (4KB): 2600000
• PCI Express interface data lanes: x4
• DevSlp (device sleep) support: Yes
• S.M.A.R.T. support: Yes
• TRIM support: Yes
• Security algorithms: 256-bit AES
• Mean time between failures (MTBF): 1500000
• Operating voltage: 3.3
• Power consumption (read): 7.6
• Power consumption (write): 7.2
• Average power consumption (read): 7.6
• Average power consumption (write): 7.2
• Power consumption (idle): 0.004
• Power consumption DevSlp (device sleep): 3.3
• Width: 80.15
• Depth: 8.88
• Height: 80.15
• Weight: 30
• Package type: Box
• Operating temperature (T-T): 0 - 70
• Operating shock: 1500
• Warranty period: 5
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00029
• Unit Calculated Weight: 0.074
