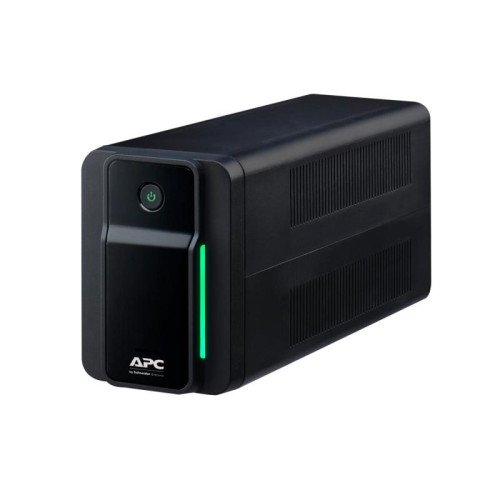

UPS BACK 500VA/BX500MI APC

UPS BACK 500VA/BX500MI APC
Нема на залиха
UPS BACK 500VA/BX500MI APC
  • UPS topology: Line-Interactive
  • Output power: 300
    • Врз основа на 0 коментари. - Напиши коментар
    6,136ден.
    • Достапност: Нема на залиха
    • Бренд: APC BY SCHNEIDER ELECTRIC
    • Шифра: 391715
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: APC Back-UPS 500VA, 230V, AVR, IEC Sockets. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 12 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Cable length: 1.5 m. Compliance certificates: RoHS, Certification: CE, EAC, EN/IEC 62040-1
    • Vendor Homepage: https://www.apc.com/
    • Name: UPS BACK 500VA/BX500MI APC
    • Category Code: UPW
    • Model: BX500MI
    • UPS topology: Line-Interactive
    • Output power capacity: 0.5
    • Output power: 300
    • Waveform: Sine
    • Input operation voltage (min): 140
    • Input operation voltage (max): 300
    • Input frequency: 50/60
    • Output frequency: 50/60
    • Automatic Voltage Regulation (AVR): Yes
    • Surge energy rating: 273
    • Efficiency: 96.1
    • Input power factor: 0.63
    • Noise level: 40
    • Surge protection: Yes
    • Audible alarm(s): Yes
    • Audible alarm modes: Alarm when on battery,Low battery alarm
    • AC outlet types: C13 coupler
    • Power plug: C14 coupler
    • AC outlets quantity: 3
    • Number of output IEC jumpers: 1
    • Ethernet LAN (RJ-45) ports: 2
    • Cabling technology: 10/100/1000Base-T(X)
    • Battery technology: Sealed Lead Acid (VRLA)
    • Battery voltage: 12
    • Battery life (max): 5
    • Battery recharge time: 8
    • Automatic battery test: Yes
    • Form factor: Tower
    • Cable length: 1.5
    • Product colour: Black
    • LED indicators: Battery replacement
    • International Protection (IP) code: IP20
    • Operating temperature (T-T): 0 - 40
    • Storage temperature (T-T): -15 - 40
    • Operating relative humidity (H-H): 0 - 95
    • Storage relative humidity (H-H): 0 - 95
    • Operating altitude: 0 - 3000
    • Non-operating altitude: 0 - 3000
    • Compliance certificates: RoHS
    • Certification: CE, EAC, EN/IEC 62040-1
    • Width: 98
    • Depth: 310
    • Height: 138
    • Weight: 4200
    • Package width: 142
    • Package depth: 346
    • Package height: 222
    • Package weight: 4500
    • Harmonized System (HS) code: 85078000
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.01047
    • Unit Calculated Weight: 7
    Specs
    AC outlet types C13 coupler
    AC outlets quantity 3
    Audible alarm modes Alarm when on battery,Low battery alarm
    Audible alarm(s) Yes
    Automatic battery test Yes
    Automatic Voltage Regulation (AVR) Yes
    Battery life (max) 5
    Battery recharge time 8
    Battery technology Sealed Lead Acid (VRLA)
    Battery voltage 12
    Cable length 1.5
    Cabling technology 10/100/1000Base-T(X)
    Category Code UPW
    Certification CE, EAC, EN/IEC 62040-1
    Compliance certificates RoHS
    Depth 310
    Description

    500VA / 300W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use
    Efficiency 96.1
    Ethernet LAN (RJ-45) ports 2
    Form Factor Tower
    Harmonized System (HS) code 85078000
    Height 138
    Input frequency 50/60
    Input operation voltage (max) 300
    Input operation voltage (min) 140
    Input power factor 0.63
    International Protection (IP) code IP20
    LED indicators Battery replacement
    Model BX500MI
    Name UPS BACK 500VA/BX500MI APC
    Noise level 40
    Non-operating altitude 0 - 3000
    Number of output IEC jumpers 1
    Operating altitude 0 - 3000
    Operating relative humidity (H-H) 0 - 95
    Operating temperature (T-T) 0 - 40
    Output frequency 50/60
    Output power 300
    Output power capacity 0.5
    Package depth 346
    Package height 222
    Package weight 4500
    Package width 142
    PictureUrl https://static.elko.cloud/ProductImages/33179864-da7a-47f5-9398-ee686897b027.Jpeg
    Power plug C14 coupler
    Product colour Black
    Storage relative humidity (H-H) 0 - 95
    Storage temperature (T-T) -15 - 40
    Summary APC Back-UPS 500VA, 230V, AVR, IEC Sockets. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 12 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Cable length: 1.5 m. Compliance certificates: RoHS, Certification: CE, EAC, EN/IEC 62040-1
    Surge energy rating 273
    Surge protection Yes
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/33179864-da7a-47f5-9398-ee686897b027.Jpeg
    Unit Calculated Volume 0.01047
    Unit Calculated Weight 7
    Units per Shipping Box 1
    UPS topology Line-Interactive
    Vendor Homepage https://www.apc.com/
    Waveform Sine
    Weight 4200
    Width 98
