UPS BACK 750VA/BX750MI APC

UPS BACK 750VA/BX750MI APC
Нема на залиха
UPS BACK 750VA/BX750MI APC
  • UPS topology: Line-Interactive
  • Output power: 410
  • Response time: 6
  • 7,720ден.
    • Достапност: Нема на залиха
    • Бренд: APC BY SCHNEIDER ELECTRIC
    • Шифра: 337709
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    1

    Technical Specifications

    • Summary: APC Back-UPS BX750MI - 750VA, 4x C13, USB. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 410 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 1 min, Typical backup time at half load: 8.5 min. Form factor: Compact, Product colour: Black, Cable length: 1.2 m. Compliance certificates: RoHS, Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
    • Vendor Homepage: https://www.apc.com/shop/uk/en/products/APC-Back-UPS-750VA-230V-AVR-IEC-Sockets/P-BX750MI
    • Name: UPS BACK 750VA/BX750MI APC
    • Category Code: UPW
    • UPS topology: Line-Interactive
    • Output power capacity: 0.75
    • Output power: 410
    • Waveform: Sine
    • Input operation voltage (min): 140
    • Input operation voltage (max): 300
    • Input frequency: 50/60
    • Output operation voltage (min): 230
    • Output operation voltage (max): 230
    • Output frequency: 50/60
    • Output frequency regulation: 0.5
    • Output voltage regulation: 10
    • Automatic Voltage Regulation (AVR): Yes
    • Surge energy rating: 273
    • Response time: 6
    • Input power factor: 0.63
    • Noise level: 40
    • Surge protection: Yes
    • Audible alarm(s): Yes
    • Audible alarm modes: Low battery alarm

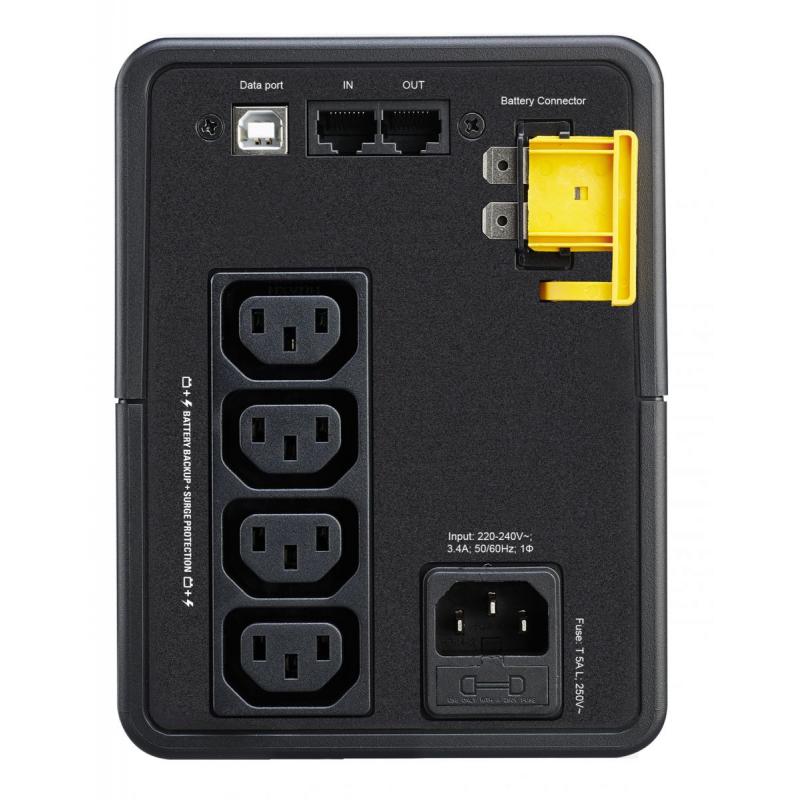

    • AC outlet types: C13 coupler
    • Power plug: C14 coupler
    • AC outlets quantity: 4
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • USB port type: USB Type-B
    • Ethernet LAN (RJ-45) ports: 2
    • Battery technology: Sealed Lead Acid (VRLA)
    • Typical backup time at full load: 1
    • Typical backup time at half load: 8.5
    • Battery life (max): 2
    • Battery recharge time: 6
    • Form factor: Compact
    • Cable length: 1.2
    • Product colour: Black
    • LED indicators: Yes
    • International Protection (IP) code: IP20
    • Operating temperature (T-T): 0 - 40
    • Storage temperature (T-T): -15 - 40
    • Operating relative humidity (H-H): 0 - 95
    • Operating altitude: 0 - 3000
    • Cables included: Input power cable
    • Manual: Yes
    • Compliance certificates: RoHS
    • Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
    • Width: 120
    • Depth: 355
    • Height: 160
    • Weight: 5400
    • Package width: 197
    • Package depth: 430
    • Package height: 250
    • Package weight: 5900
    • Harmonized System (HS) code: 85078000
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.01989
    • Unit Calculated Weight: 6.5
    Specs
    AC outlet types C13 coupler
    AC outlets quantity 4
    Audible alarm modes Low battery alarm
    Audible alarm(s) Yes
    Automatic Voltage Regulation (AVR) Yes
    Battery life (max) 2
    Battery recharge time 6
    Battery technology Sealed Lead Acid (VRLA)
    Cable length 1.2
    Cables included Input power cable
    Category Code UPW
    Certification CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
    Compliance certificates RoHS
    Depth 355
    Description

    Security through emergency power

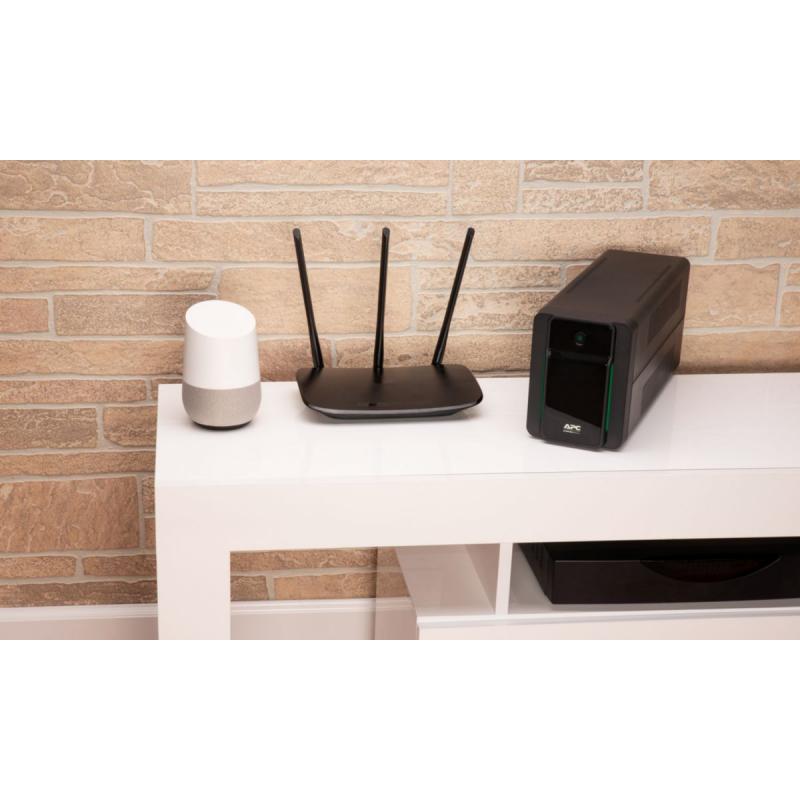

    An APC Back-UPS has a built-in battery that ensures that all connected equipment, such as a PC and NAS, but also your WIFI internet (router + modem) continues to function if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.

    Safety and convenience
    In addition, this secure APC Back-UPS protects by are surge protected outputs that protect valuable equipment against peak voltage caused by lightning strikes, for example. Thanks to the 1Gb Network Dataline Surge Protection, the UPS also protects your Ethernet data line (internet cable) and the equipment connected to it against "backdoor" peak voltage, all without sacrificing internet speed. It is also extra quiet due to the fanless design.

    Battery life
    You can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.

    Extend the lifespan
    The internal battery cartridge (RBC17) can be replaced. This way you can easily and cheaply extend the lifespan of the APC Back-UPS BX750MI.

    Warranty extension
    The factory warranty of the BX750MI is 2 years and can be upgraded to 5 years with the APC service pack (WBEXTWAR3YR-SP-01A).

    Insurance
    Despite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:
    - Equipment protection policy of 50,000 euros

    Save on operational costs
    The UPS is equipped with AVR, which extends battery life and maximizes runtime by correcting low and high voltages without discharging the battery. Furthermore, the emergency power supply has 4 battery+surge protected outputs. PowerChute Serial Shutdown software and a USB cable are also included.

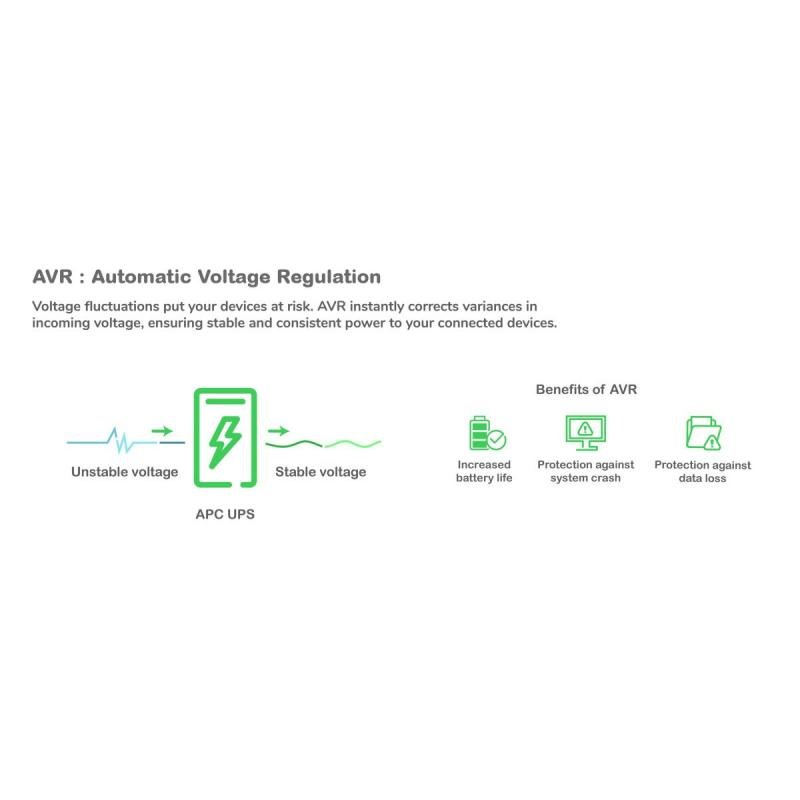

    Automatic Voltage Regulation (AVR)
    Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

    Dataline surge protection
    Provides protection of connected equipment from power surges on the data lines.

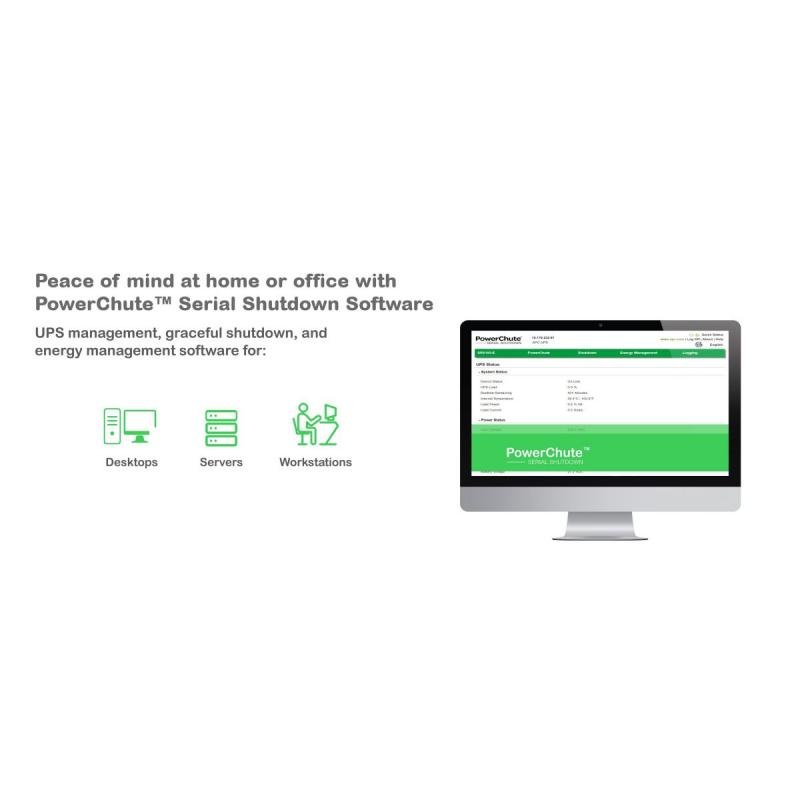

    PowerChute Serial Edition
    This software supports numerous operating systems and processors.

    USB connection
    Use your PC to access additional power protection and management features for your UPS via a USB Port.

    Audible alarms
    Provides notification of changing utility power and UPS power conditions

    LED status display
    Quickly understand unit and power status with visual indicators.

    Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.

    Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.

    Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance

    Surge only outlets
    Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

    Battery and surge protected outlets
    Back up and protect your hardware and data during power outages, surges and spikes.

    Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

    Battery-protected and surge-only outlets
    Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

    Ethernet LAN (RJ-45) ports 2
    Form Factor Compact
    Harmonized System (HS) code 85078000
    Height 160
    Input frequency 50/60
    Input operation voltage (max) 300
    Input operation voltage (min) 140
    Input power factor 0.63
    International Protection (IP) code IP20
    LED indicators Yes
    Manual Yes
    Name UPS BACK 750VA/BX750MI APC
    Noise level 40
    Operating altitude 0 - 3000
    Operating relative humidity (H-H) 0 - 95
    Operating temperature (T-T) 0 - 40
    Output frequency 50/60
    Output frequency regulation 0.5
    Output operation voltage (max) 230
    Output operation voltage (min) 230
    Output power 410
    Output power capacity 0.75
    Output voltage regulation 10
    Package depth 430
    Package height 250
    Package weight 5900
    Package width 197
    PictureUrl https://static.elko.cloud/ProductImages/d3b3e899-df91-4b55-974f-bcb18c0513b2.Jpeg
    Power plug C14 coupler
    Product colour Black
    Response time 6
    Storage temperature (T-T) -15 - 40
    Summary APC Back-UPS BX750MI - 750VA, 4x C13, USB. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 410 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 1 min, Typical backup time at half load: 8.5 min. Form factor: Compact, Product colour: Black, Cable length: 1.2 m. Compliance certificates: RoHS, Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
    Surge energy rating 273
    Surge protection Yes
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/d3b3e899-df91-4b55-974f-bcb18c0513b2.Jpeg
    Typical backup time at full load 1
    Typical backup time at half load 8.5
    Unit Calculated Volume 0.01989
    Unit Calculated Weight 6.5
    Units per Shipping Box 1
    UPS topology Line-Interactive
    USB 2.0 ports quantity 1
    USB port Yes
    USB port type USB Type-B
    Vendor Homepage https://www.apc.com/shop/uk/en/products/APC-Back-UPS-750VA-230V-AVR-IEC-Sockets/P-BX750MI
    Waveform Sine
    Weight 5400
    Width 120
