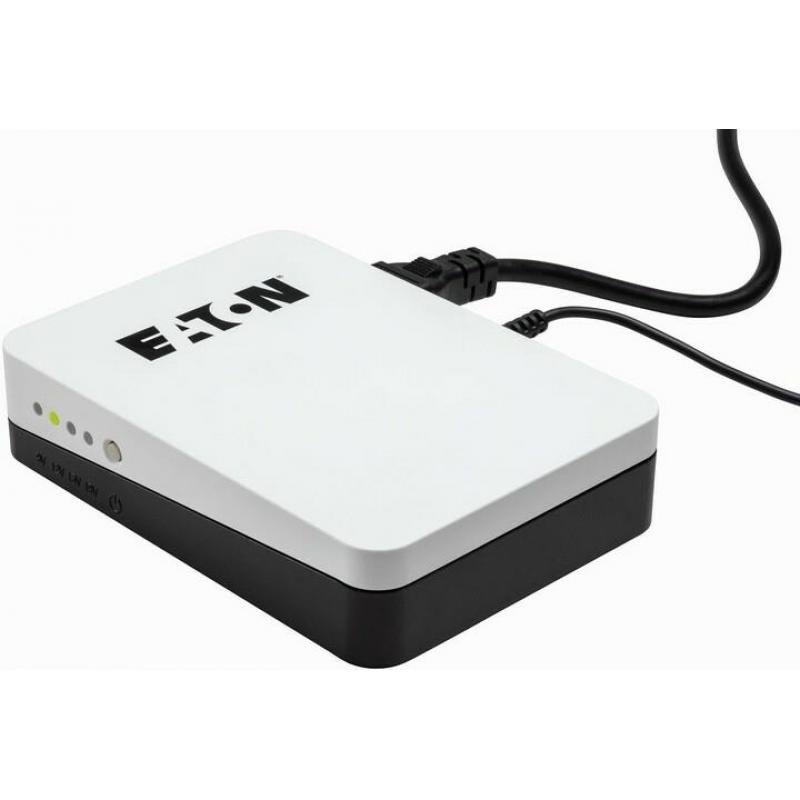

UPS DESKTOP 3S MINI 36W/3SM36 EATON

Technical Specifications

• Summary: Eaton 3S Mini. Output power: 36 W, Input operation voltage (min): 90 V, Input operation voltage (max): 264 V. Power plug: Type F. Battery technology: Lithium, Battery capacity: 4.4 Ah, Battery voltage: 3.7 V. Form factor: Compact, Product colour: Black, White. Certification: IEC 62477-1, IEC 62040-2
• Vendor Homepage: www.eaton.com/ae/en-gb/skuPage.3SM36.html
• Name: UPS DESKTOP 3S MINI 36W/3SM36 EATON
• Category Code: UPW
• Output power: 36
• Input operation voltage (min): 90
• Input operation voltage (max): 264
• Input frequency: 50/60
• Output operation voltage (min): 9
• Output operation voltage (max): 19
• Maximum current: 3
• Power plug: Type F
• Battery technology: Lithium
• Battery capacity: 4.4
• Battery voltage: 3.7
• Form factor: Compact
• Product colour: Black,White
• Operating temperature (T-T): 0 - 35
• Certification: IEC 62477-1, IEC 62040-2
• Width: 95.5
• Depth: 30
• Height: 136
• Weight: 400
• Harmonized System (HS) code: 85078000
• Output connections: 5.5/2.5mm, 5.5/2.1mm, 4.75/1.7mm, 3.5/1.3mm
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001672
• Unit Calculated Weight: 0.6
