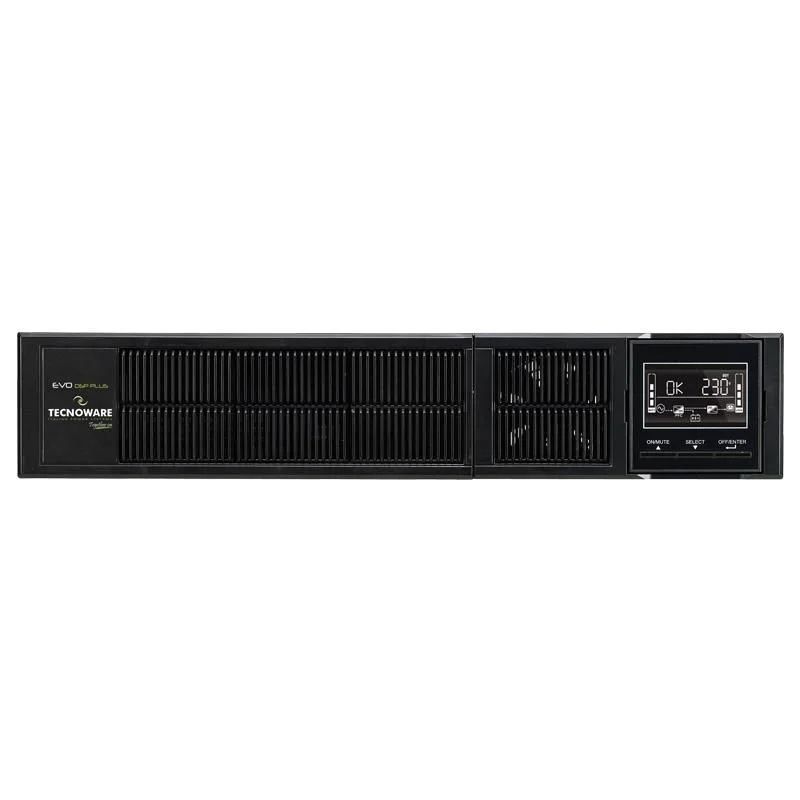

UPS EVO DSP PLUS 3600VA/FGCEDP3602RTIEC TECNOWARE

Technical Specifications

• Description:

  FGCEDP3602RTIEC

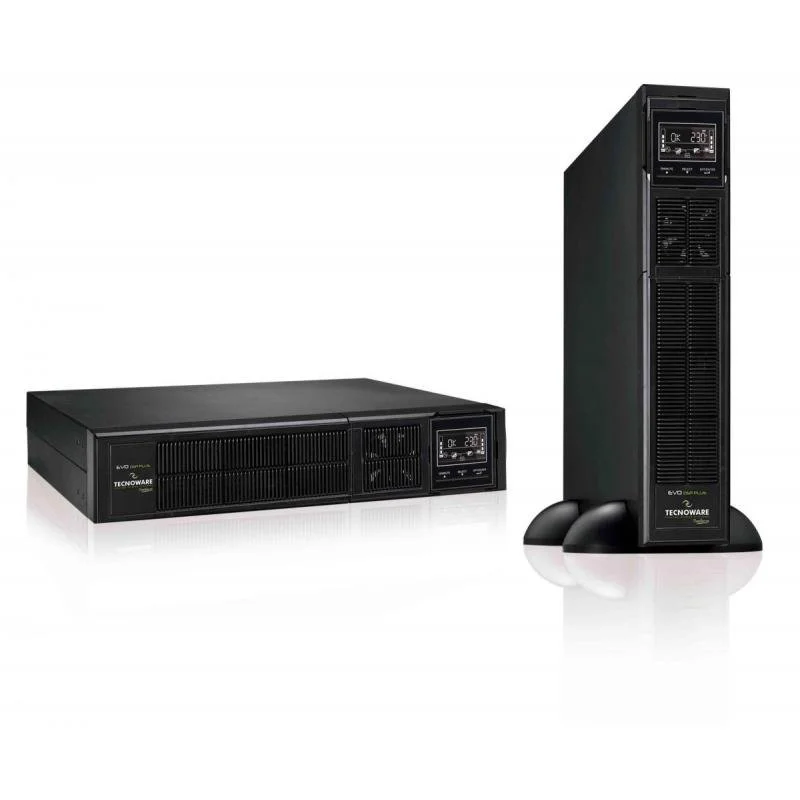

  UPS EVO DSP PLUS 3600 RACK / TOWER IEC TOGETHER ON
  UPS EVO DSP PLUS 3,600 RACK TOWER - Power 3,600 VA PF 0,9. On Line Technology (VFI) DSP, 94% Efficiency, Input / output 230 / 230Vac 50 / 60Hz, IEC Output Sockets

• Vendor Homepage: https://www.tecnoware.com/en-US/Dettaglio/Articolo/74
• Name: UPS EVO DSP PLUS 3600VA/FGCEDP3602RTIEC TECNOWARE
• Category Code: UPR
• Output power capacity, W: 3240
• Output power capacity, VA: 3600
• Typical runtime at full load: 10
• Wave form type: Sinewave
• Topology: OnLine DoubleConvertion
• Phase: 1phase

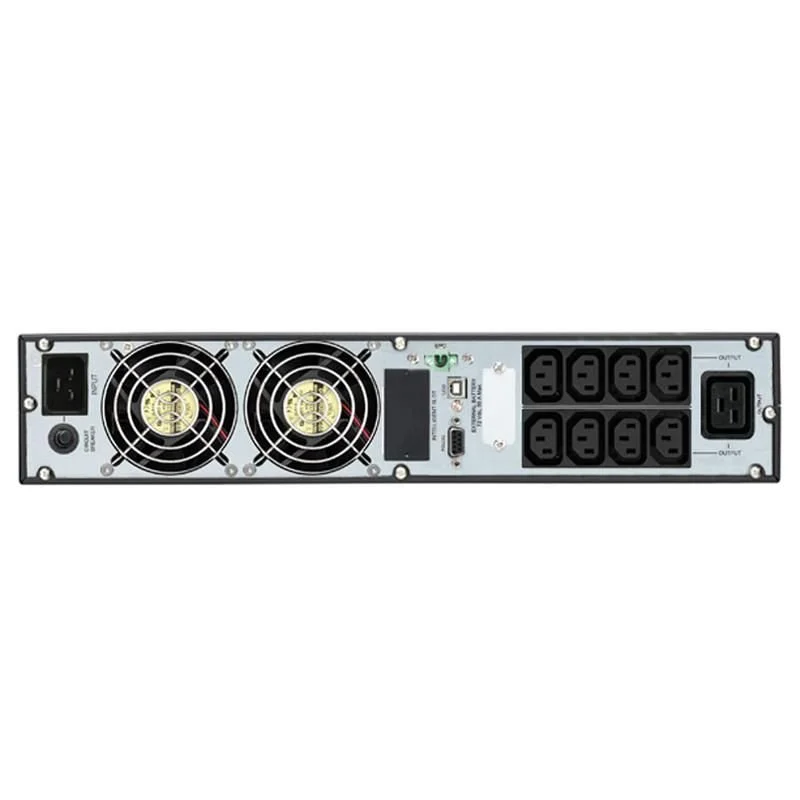

• Output Power Connectors Quantity (battery backup): 8
• Output power connector type: IEC 320 C13

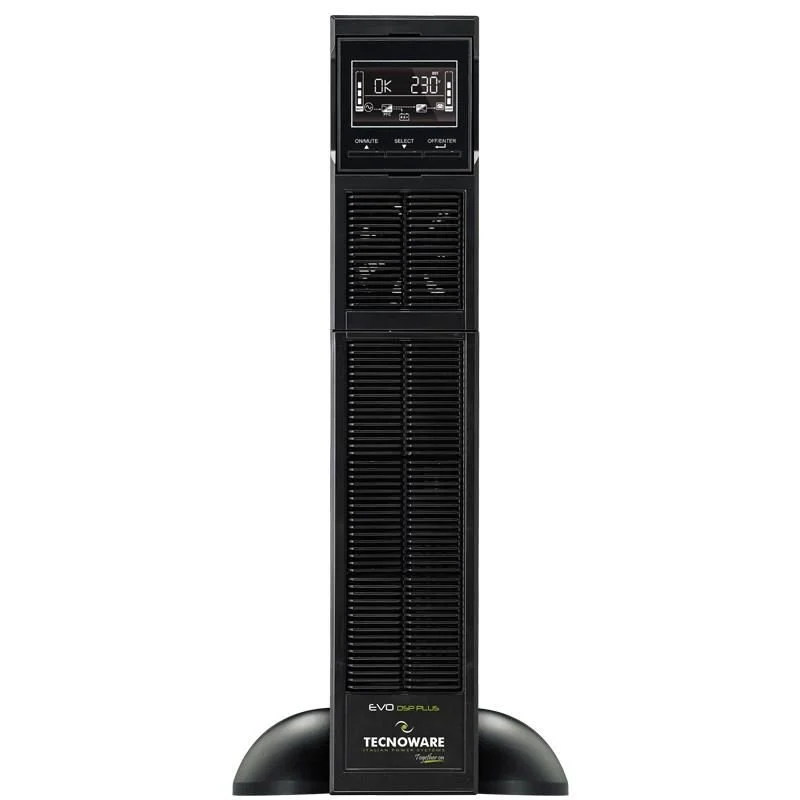

• Desktop/pedestal: Yes
• Dimensions: 43.8x8.8x63 cm
• Units per Shipping Box: 1
• Shipping Box Width: 60.5
• Shipping Box Depth: 76
• Shipping Box Height: 20
• Shipping Box Weight: 30
• Unit Calculated Volume: 0.09196
• Product Net Weight: 29
• Unit Calculated Weight: 30
