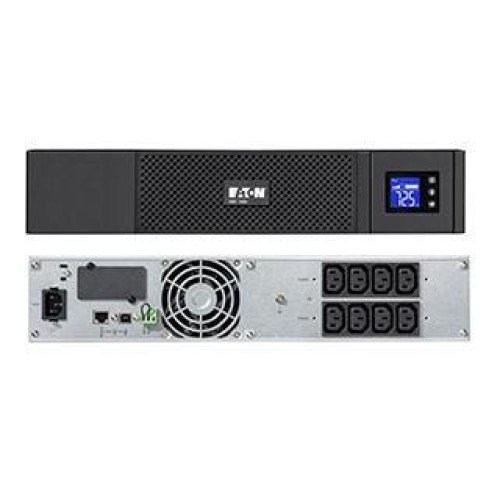

UPS RACK 5SC 1500VA 1050W/5SC1500IR EATON

Technical Specifications

• Summary: Eaton 5SC 1500I RACK2U. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1050 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV). Width: 440 mm, Depth: 405 mm, Height: 86.2 mm
• Vendor Homepage: https://powerquality.eaton.com/5SC1500iR.aspx?cx=13
• Name: UPS RACK 5SC 1500VA 1050W/5SC1500IR EATON
• Category Code: UPW
• UPS topology: Line-Interactive
• Output power capacity: 1.5
• Output power: 1050
• Input operation voltage (min): 184
• Input operation voltage (max): 276
• Input frequency: 45/65
• Output operation voltage (min): 220
• Output operation voltage (max): 240
• Output frequency regulation: 50/60
• Noise level: 45
• Power protection features: Overdischarge
• AC outlet types: C13 coupler
• Power plug: C14 coupler
• AC outlets quantity: 8
• USB port: Yes
• Serial interface: Yes
• Serial interface type: RS-232
• Serial ports quantity: 1
• Form factor: Rackmount
• Rack capacity: 2U
• Product colour: Black
• Display type: LED
• Operating temperature (T-T): 0 - 40
• Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV)
• Width: 440
• Depth: 405
• Height: 86.2
• Weight: 17780
• Harmonized System (HS) code: 85078000
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.07142
• Unit Calculated Weight: 22
