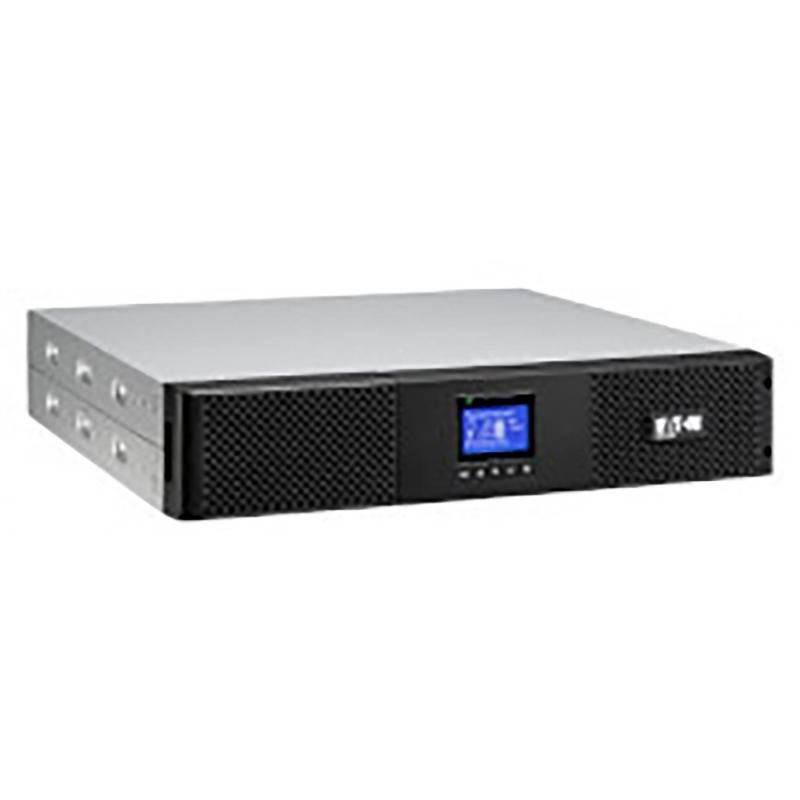

UPS RACK 9SX 3000VA 2700W/9SX3000IR EATON

Technical Specifications

• Summary: Eaton 9SX. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB (TUV) / cULus / EAC / RCM. Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
• Vendor Homepage: https://www.eaton.com/gb/en-gb/skuPage.9SX3000IR.html
• Name: UPS RACK 9SX 3000VA 2700W/9SX3000IR EATON
• Category Code: UPW
• UPS topology: Double-conversion (Online)
• Output power capacity: 3
• Output power: 2700
• Input operation voltage (min): 200
• Input operation voltage (max): 276
• Input frequency: 40 - 70
• Output frequency: 50/60
• Maximum current: 16
• Noise level: 45
• AC outlet types: C13 coupler/C19 coupler
• Power plug: C20 coupler
• AC outlets quantity: 9
• USB port: Yes
• Serial interface: Yes
• Serial interface type: RS-232
• RS-232 ports: 1
• Form factor: Rackmount
• Rack capacity: 2U
• Product colour: Black
• Display type: LCD
• Operating temperature (T-T): 0 - 40
• Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
• Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB (TUV) / cULus / EAC / RCM
• Width: 438
• Depth: 608
• Height: 86.5
• Weight: 26500
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1072
• Unit Calculated Weight: 33.5
