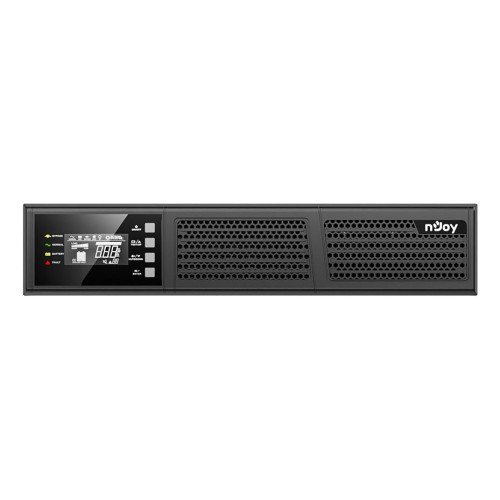

UPS RACK RUNA 2K 2KVA/UPCMROP920HRNDB01B NJOY

Technical Specifications

• Summary: nJoy Runa 2K. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: C13 coupler, AC outlets quantity: 4 AC outlet(s). Battery replacement accessibility: End-user, Number of batteries included: 4 pc(s), Typical backup time at half load: 12 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, RoHS
• Vendor Homepage: https://www.njoy.global/product/runa-2k/UPCMROP920HRNDB01B
• Name: UPS RACK RUNA 2K 2KVA/UPCMROP920HRNDB01B NJOY
• Category Code: UPW
• UPS topology: Double-conversion (Online)
• Output power capacity: 2
• Output power: 1800
• Waveform: Pure sine
• Input operation voltage (min): 208
• Input operation voltage (max): 240
• Input frequency: 50/60
• Output operation voltage (min): 208
• Output operation voltage (max): 240
• Output voltage regulation: 1
• Surge energy rating: 450
• Number of input phases: 1
• Number of output phases: 1
• Efficiency (ECO mode): 94
• Efficiency (Battery mode): 86
• Output power factor: 0.9
• ECO mode: Yes
• Emergency Power Off (EPO): Yes
• Overload capacity (1 minute): 125
• Output voltage Total Harmonic Distortion (THD): 2
• Noise level: 50
• Surge protection: Yes
• Audible alarm(s): Yes
• Auto-restart: Yes
• AC outlet types: C13 coupler
• AC outlets quantity: 4
• USB port: Yes
• RS-232 ports: 1
• Emergency Power Off (EPO) connector: Yes
• Battery replacement accessibility: End-user
• Number of batteries included: 4
• Typical backup time at half load: 12
• Charging current: 1
• Cold start: Yes
• Rechargeable battery: Yes
• Form factor: Rackmount
• Rack capacity: 2U
• Cooling type: Active
• Built-in fan: Yes
• Product colour: Black
• Display type: LCD
• LED indicators: Battery level/Fault
• International Protection (IP) code: IP20
• Compatibility: GP09122F, HR09122F
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -15 - 45
• Operating relative humidity (H-H): 0 - 95
• Operating altitude: 0 - 3000
• Batteries included: Yes
• Compliance certificates: CE/RoHS
• Doesnt contain: Cadmium/Lead/Mercury
• Width: 428
• Depth: 439
• Height: 88
• Weight: 18200
• Package width: 541
• Package depth: 571
• Package height: 189
• Package weight: 21200
• Package type: Box
• Battery type: 4x GP09122F
• Nominal input voltage: 208-240
• Nominal output voltage: 208-240
• Overload protection: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0554
• Unit Calculated Weight: 21
