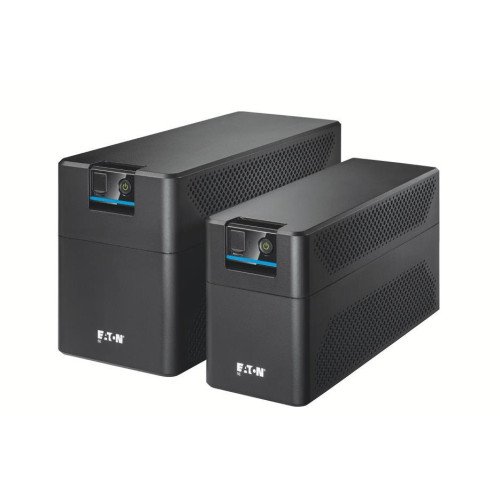

UPS TOWER 5E 1600VA 900W/USB 5E1600UI EATON

Technical Specifications

• Summary: Eaton 5E Gen2 1600 USB. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 900 W. AC outlet types: C13 coupler, AC outlets quantity: 6 AC outlet(s). Form factor: Tower, Product colour: Black, Control type: Buttons. Compliance certificates: Low Voltage Directive (LVD), RoHS, WEEE, Certification: EN IEC 62040-1:2019; EN 62040-2:2006; IEC 62040-2: 2016, IEC 62040-3: 2021; CE; EAC; UKCA; Cm; Ukr. Width: 133 mm, Depth: 180 mm, Height: 330 mm
• Vendor Homepage: https://www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
• Name: UPS TOWER 5E 1600VA 900W/USB 5E1600UI EATON
• Category Code: UPW
• Model: 5E1600UI
• UPS topology: Line-Interactive
• Output power capacity: 1.6
• Output power: 900
• Input operation voltage (min): 220
• Input operation voltage (max): 240
• Input frequency: 50/60
• Output operation voltage (min): 220
• Output operation voltage (max): 240
• Noise level: 25
• Power protection features: Over voltage/Under voltage
• Audible alarm(s): Yes
• Audible alarm modes: Battery replacement
• Auto-restart: Yes
• Power source type: AC
• AC outlet types: C13 coupler
• AC outlets quantity: 6
• USB port: Yes
• USB 2.0 ports quantity: 1
• Automatic battery test: Yes
• Cold start: Yes
• Form factor: Tower
• Product colour: Black
• Control type: Buttons
• Operating temperature (T-T): 0 - 40
• Compliance certificates: Low Voltage Directive (LVD)/RoHS/WEEE
• Sustainability compliance: Yes
• Certification: EN IEC 62040-1:2019; EN 62040-2:2006; IEC 62040-2: 2016, IEC 62040-3: 2021; CE; EAC; UKCA; Cm; Ukr
• Width: 133
• Depth: 180
• Height: 330
• Weight: 9300
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0376
• Unit Calculated Weight: 10.85
