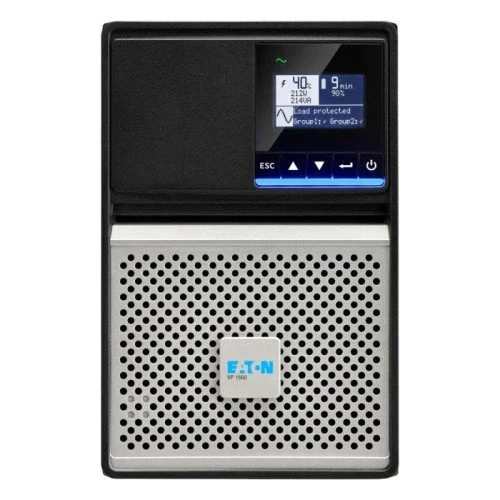

UPS TOWER 5P GEN2 1550VA 1350W/5P1550IG2 EATON

Technical Specifications

• Summary: Eaton 5P Gen2. UPS topology: Line-Interactive, Output power: 1350 W, Waveform: Sine. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
• Vendor Homepage: https://www.eaton.com/gb/en-gb/skuPage.5P1550IG2.html
• Name: UPS TOWER 5P GEN2 1550VA 1350W/5P1550IG2 EATON
• Category Code: UPW
• Model: 5P Gen2
• UPS topology: Line-Interactive
• Output power: 1350
• Waveform: Sine
• Input operation voltage (min): 160
• Input operation voltage (max): 294
• Input frequency: 47/70
• Output operation voltage (max): 230
• Output frequency: 50/60
• Number of input phases: 1
• Number of output phases: 1
• Efficiency: 98.2
• Noise level: 35
• Auto shut-off: Yes
• AC outlet types: C13 coupler
• Power plug: C14 coupler
• AC outlets quantity: 8
• USB port: Yes
• Serial interface: Yes
• Serial interface type: RS-232
• Serial ports quantity: 1
• Battery technology: Lead-Acid
• Battery capacity: 9
• Battery voltage: 12
• Number of batteries supported: 3
• Form factor: Tower
• Product colour: Black,Silver
• Display type: LCD
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): 0 - 90
• Operating altitude: 0 - 3000
• Quick installation guide: Yes
• Compliance certificates: Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS/WEEE
• Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
• Width: 150
• Depth: 445
• Height: 233
• Weight: 15100
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.039744
• Unit Calculated Weight: 18
