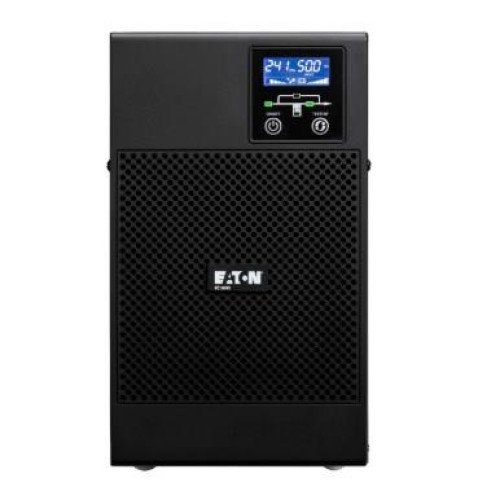

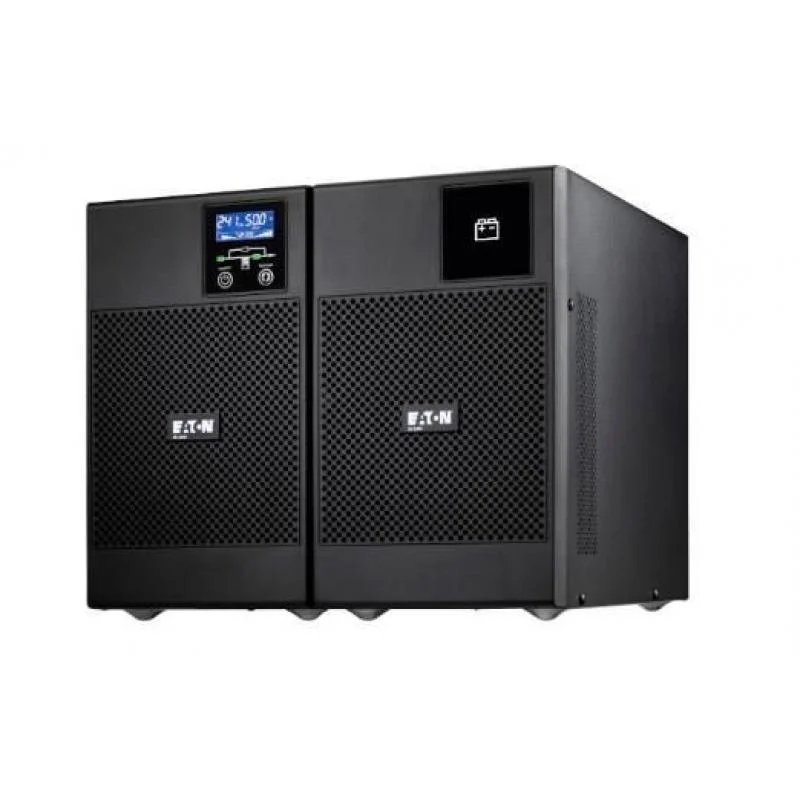

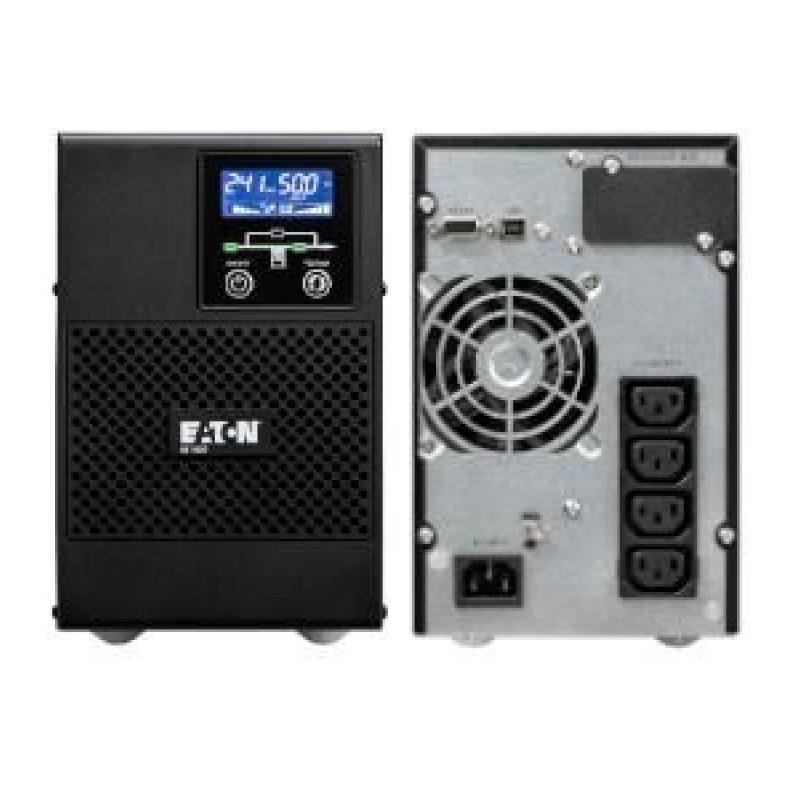

UPS TOWER 9E 1000VA 800W/9E1000I EATON

Technical Specifications

• Summary: Eaton 9E. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: IEC 320, Power plug: C13 coupler, AC outlets quantity: 4 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min. Certification: IEC/EN 62040 -2, CE, CB report (TUV). Safety: IEC/EN 62040-1
• Vendor Homepage: https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9E-1-3kVA.aspx?cx=41
• Name: UPS TOWER 9E 1000VA 800W/9E1000I EATON
• Category Code: UPW
• UPS topology: Double-conversion (Online)
• Output power capacity: 1
• Output power: 800
• Input operation voltage (min): 100
• Input operation voltage (max): 300
• Input frequency: 50/60
• Output operation voltage (min): 208
• Output operation voltage (max): 240
• Output frequency: 50/60
• Efficiency: 91
• Overload capacity (5 minute): 150
• Overload capacity (1 minute): 130
• Overload capacity (10 seconds): 150
• Noise level: 37
• AC outlet types: IEC 320
• Power plug: C13 coupler
• AC outlets quantity: 4
• USB port: Yes
• Serial interface: Yes
• Serial interface type: RS-232
• RS-232 ports: 1
• Serial ports quantity: 1
• Typical backup time at full load: 4
• Typical backup time at half load: 12
• Operating temperature (T-T): 0 - 40
• Safety: IEC/EN 62040-1
• Certification: IEC/EN 62040 -2, CE, CB report (TUV)
• Width: 228
• Depth: 144
• Height: 356
• Weight: 9500
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03271
• Unit Calculated Weight: 10.5
