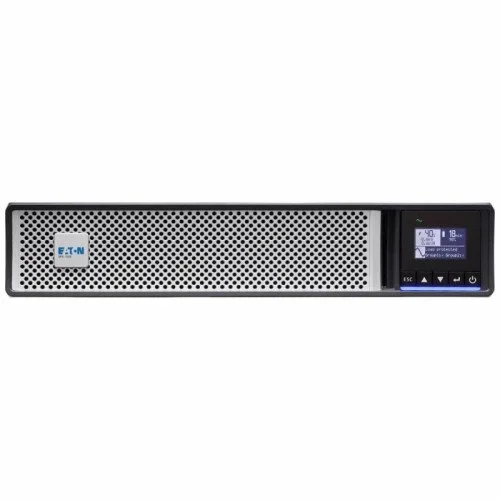

UPS TOWER/RACK 5PX 1000VA/1000W 5PX1000IRTNG2 EATON

Technical Specifications

• Description:

  Exceptional efficiency, manageability and energy metering capabilities for IT managers

  Performance and efficiency

  - Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
  - Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
  - When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
  - Each 5PX Gen2 battery configuration provides the best size /runtime ratio.

  Management and Cybersecurity

  - Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
  - 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
  - Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
  - 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
  - Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.

  Availability and flexibility

  - 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
  - 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
  - Eaton ABM battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
  - Up to 4 external hot-swappable battery modules can be added for longer power availability.

• Summary: Eaton 5PX Gen2. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Typical backup time at half load: 17 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
• Vendor Homepage: https://www.eaton.com/
• Name: UPS TOWER/RACK 5PX 1000VA/1000W 5PX1000IRTNG2 EATON
• Category Code: UPW
• UPS topology: Line-Interactive
• Output power capacity: 1
• Output power: 1000
• Waveform: Pure sine
• Input operation voltage (min): 160
• Input operation voltage (max): 294
• Input frequency: 47/70
• Noise level: 40
• Power protection features: Overdischarge
• AC outlet types: C13 coupler
• Power plug: C14 coupler
• AC outlets quantity: 8
• USB port: Yes
• Serial interface: Yes
• Serial interface type: RS-232
• Serial ports quantity: 1
• Cabling technology: 10/100/1000Base-T(X)
• Typical backup time at half load: 17
• Hot-swap battery: Yes
• Automatic battery test: Yes
• Form factor: Rackmount/Tower
• Rack capacity: 2U
• Product colour: Black
• Display type: LCD
• LED indicators: Yes
• Operating temperature (T-T): 0 - 40
• Compliance certificates: CE
• Sustainability certificates: ENERGY STAR
• Sustainability compliance: Yes
• Safety: IEC/EN 62040-1, UL1778, CSA22.2
• Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
• Width: 438
• Depth: 448
• Height: 85.5
• Weight: 19600
• Management card included: Yes
• Harmonized System (HS) code: 85078000
• Nominal output voltage: 230
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0702
• Unit Calculated Weight: 25.5
