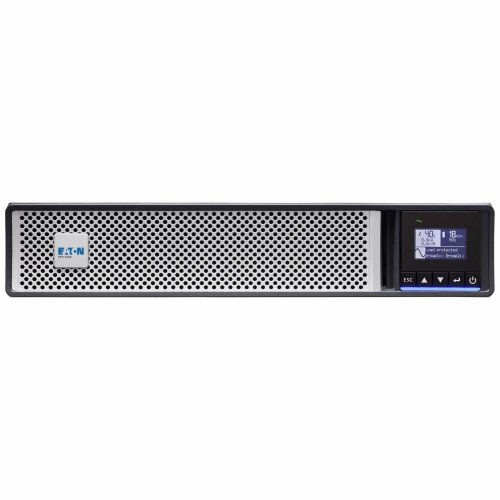

UPS TOWER/RACK 5PX 2200VA RT2U/2200W 5PX2200IRTNG2 EATON

Technical Specifications

• Summary: Eaton 5PX Gen2. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RS-232. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm. Safety: IEC/EN 62040-1, UL1778, CSA22.2
• Vendor Homepage: https://www.eaton.com/
• Name: UPS TOWER/RACK 5PX 2200VA RT2U/2200W 5PX2200IRTNG2 EATON
• Category Code: UPW
• UPS topology: Line-Interactive
• Output power capacity: 2.2
• Output power: 2200
• Waveform: Pure sine
• Input operation voltage (min): 160
• Input operation voltage (max): 294
• Input frequency: 47/70
• Noise level: 40
• Power protection features: Overdischarge
• AC outlet types: C13 coupler/C19 coupler
• Power plug: C20 coupler
• USB port: Yes
• Serial interface: Yes
• Serial interface type: RS-232
• Serial ports quantity: 1
• Automatic battery test: Yes
• Form factor: Rackmount/Tower
• Rack capacity: 2U
• Product colour: Black
• Display type: LCD
• LED indicators: Yes
• Operating temperature (T-T): 0 - 40
• Compliance certificates: CE
• Sustainability compliance: Yes
• Safety: IEC/EN 62040-1, UL1778, CSA22.2
• Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
• Width: 438
• Depth: 603
• Height: 85.5
• Weight: 28200
• Management card included: Yes
• Harmonized System (HS) code: 85078000
• Output connections: 8 x IEC C13 (10A) 2 x IEC C19 (16A)
• Nominal output voltage: 230
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1041
• Unit Calculated Weight: 35
