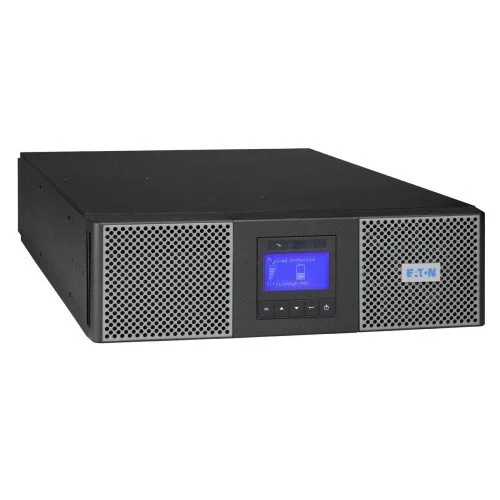

UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTN EATON

UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTN EATON
Нема на залиха
UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTN EATON
  • UPS topology: Double-conversion (Online)
  • Output power: 5400
    • Врз основа на 0 коментари. - Напиши коментар
    324,273ден.
    • Достапност: Нема на залиха
    • Бренд: EATON
    • Шифра: 240474
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Eaton 9PX6KIRTN. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 5400 W. AC outlet types: C13 coupler, C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 11 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 11 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report...
    • Vendor Homepage: https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9PX.aspx?cx=69
    • Name: UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTN EATON
    • Category Code: UPW
    • UPS topology: Double-conversion (Online)
    • Output power capacity: 6
    • Output power: 5400
    • Waveform: Pure sine
    • Input operation voltage (min): 176
    • Input operation voltage (max): 276
    • Input frequency: 40/70
    • Output operation voltage (min): 200
    • Output operation voltage (max): 240
    • Output frequency: 50/60
    • Number of input phases: 1
    • Efficiency: 94
    • Power factor: 0.9
    • Crest factor: 3:1
    • Output voltage Total Harmonic Distortion (THD): 2
    • Input current Total Harmonic Distortion (THD): 5
    • Noise level: 45
    • AC outlet types: C13 coupler/C19 coupler/Terminal
    • Power plug: Terminal
    • AC outlets quantity: 11
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • RS-232 ports: 1
    • Battery technology: Sealed Lead Acid (VRLA)
    • Typical backup time at half load: 11
    • Hot-swap battery: Yes
    • Automatic battery test: Yes
    • Form factor: Rackmount/Tower
    • Rack capacity: 3U
    • Product colour: Black
    • Display type: LCD
    • LED indicators: Yes
    • Operating temperature (T-T): 0 - 40
    • Rack mount kit: Yes
    • Sustainability certificates: ENERGY STAR
    • Safety: IEC/EN 62040-1, UL 1778
    • Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL
    • Width: 440
    • Depth: 685
    • Height: 130
    • Weight: 48000
    • Management card included: Yes
    • Bundled software: Intelligent Power Software suite
    • Harmonized System (HS) code: 85078000
    • Interface: USB, RS232
    • Nominal input voltage: 230
    • Nominal output voltage: 230
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.171
    • Unit Calculated Weight: 52
    Specs
    AC outlet types C13 coupler/C19 coupler/Terminal
    AC outlets quantity 11
    Automatic battery test Yes
    Battery technology Sealed Lead Acid (VRLA)
    Bundled software Intelligent Power Software suite
    Category Code UPW
    Certification IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL
    Crest factor 3:1
    Depth 685
    Description

    The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

    - Online double conversion topology
    - Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
    - Next-generation graphical LCD display (7 languages)
    - Provides more real power (watts) to protect more equipment with a 0.9 power factor
    - Parallel operation using HotSync technology (available in Q2 2013)
    - Maintenance ByPass available as standard (on HotSwap/BP version)
    - Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
    - Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
    Display type LCD
    Efficiency 94
    Form Factor Rackmount/Tower
    Harmonized System (HS) code 85078000
    Height 130
    Hot-swap battery Yes
    Input current Total Harmonic Distortion (THD) 5
    Input frequency 40/70
    Input operation voltage (max) 276
    Input operation voltage (min) 176
    Interface USB, RS232
    LED indicators Yes
    Management card included Yes
    Name UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTN EATON
    Noise level 45
    Nominal input voltage 230
    Nominal output voltage 230
    Number of input phases 1
    Operating temperature (T-T) 0 - 40
    Output frequency 50/60
    Output operation voltage (max) 240
    Output operation voltage (min) 200
    Output power 5400
    Output power capacity 6
    Output voltage Total Harmonic Distortion (THD) 2
    PictureUrl https://static.elko.cloud/ProductImages/4ef8ef11-151e-4e1d-892a-35e9f765b06a.Jpeg
    Power factor 0.9
    Power plug Terminal
    Product colour Black
    Rack capacity 3U
    Rack mount kit Yes
    RS-232 ports 1
    Safety IEC/EN 62040-1, UL 1778
    Summary Eaton 9PX6KIRTN. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 5400 W. AC outlet types: C13 coupler, C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 11 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 11 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report...
    Sustainability certificates ENERGY STAR
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/4ef8ef11-151e-4e1d-892a-35e9f765b06a.Jpeg
    Typical backup time at half load 11
    Unit Calculated Volume 0.171
    Unit Calculated Weight 52
    Units per Shipping Box 1
    UPS topology Double-conversion (Online)
    USB 2.0 ports quantity 1
    USB port Yes
    Vendor Homepage https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9PX.aspx?cx=69
    Waveform Pure sine
    Weight 48000
    Width 440
