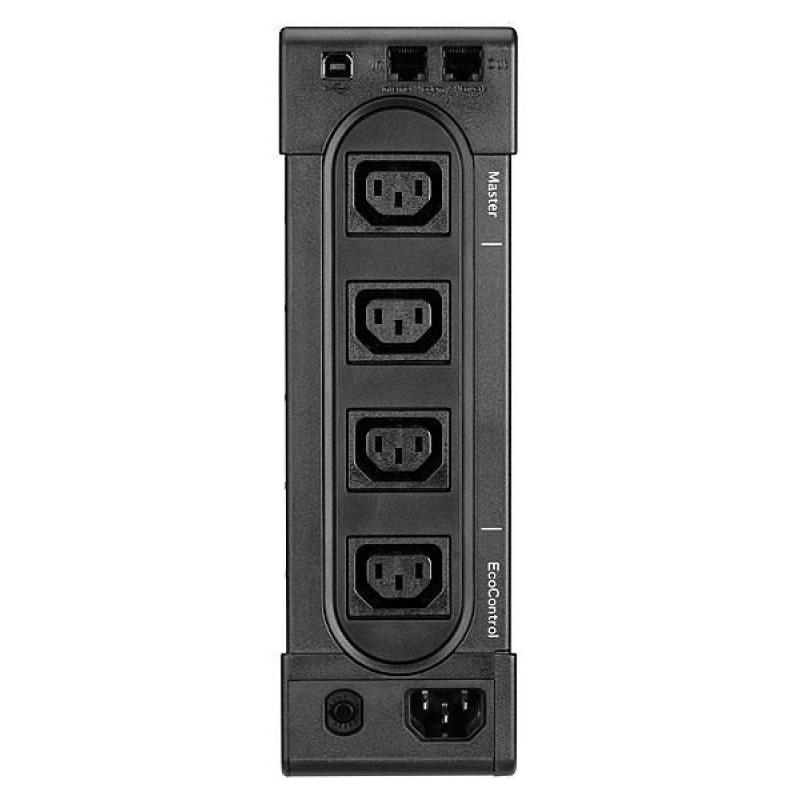

UPS TOWER/RACK EL PRO 650VA/400W ELP650IEC EATON

Technical Specifications

• Summary: Eaton Ellipse PRO 650 IEC. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 400 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
• Vendor Homepage: https://powerquality.eaton.com/Products-services/Backup-Power-UPS/Ellipse-PRO.aspx?cx=88
• Name: UPS TOWER/RACK EL PRO 650VA/400W ELP650IEC EATON
• Category Code: UPW
• UPS topology: Line-Interactive
• Output power capacity: 0.65
• Output power: 400
• Input operation voltage (min): 150
• Input operation voltage (max): 285
• Input frequency: 50/60
• Output operation voltage (min): 220
• Output operation voltage (max): 240
• Output frequency: 50
• Emergency Power Off (EPO): Yes
• Surge protection: Yes
• Surge protection features: Fax/Modem/Network/Telephone
• AC outlet types: C13 coupler
• Power plug: C14 coupler
• AC outlets quantity: 4
• USB 2.0 ports quantity: 1
• Modem (RJ-11) ports: 1
• Ethernet LAN (RJ-45) ports: 1
• Battery technology: Sealed Lead Acid (VRLA)
• Typical backup time at half load: 9
• Automatic battery test: Yes
• Cold start: Yes
• Form factor: Tower
• Rack capacity: 2U
• Product colour: Black
• Display type: LCD
• LED indicators: Yes
• Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
• Width: 82
• Depth: 285
• Height: 260
• Weight: 6600
• Harmonized System (HS) code: 85078000
• Nominal input voltage: 230
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01747
• Unit Calculated Weight: 7.5
