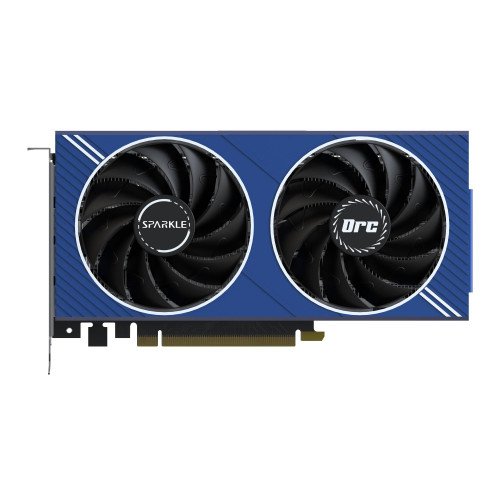

Arc A580

Technical Specifications

• Summary: Sparkle Technology Intel Arc A580 ORC OC Edition. Graphics processor family: Intel, Graphics processor: Arc A580, Processor frequency: 2000 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 2 fan(s)
• Vendor Homepage: https://www.sparkle.com.tw/en/A580-ORC
• Name: VGA PCIE16 ARC A580 8GB GDDR6/SA580C-8GOC SPARKLE
• Category Code: VGP
• Graphics processor family: Intel
• Graphics processor: Arc A580
• Processor frequency: 2000
• Maximum resolution: 7680 x 4320
• Discrete graphics card memory: 8
• Graphics card memory type: GDDR6
• Memory bus: 256
• Data transfer rate: 16
• Memory bandwidth (max): 512
• Interface type: PCI Express x16 4.0
• HDMI ports quantity: 1
• HDMI version: 2.0b
• DisplayPort version: 2.0
• DisplayPorts quantity: 3
• DirectX version: 12 Ultimate
• OpenGL version: 4.6
• OpenCL version: 3.0
• Intel Xe Matrix Extensions (Intel XMX) Engines: 384
• Xe-cores: 24
• Video formats supported: VP9
• Cooling type: Active
• Number of fans: 2
• Number of slots: 2.2
• Product colour: Black/Blue/Silver
• Minimum system power supply: 600
• Windows operating systems supported: Windows 10/Windows 11
• Linux operating systems supported: Ubuntu 22.04
• Weight: 742
• Length: 222
• Depth: 40.9
• Height: 101
• Package type: Box
• Model: SA580C-8GOC
• Units per Shipping Box: 20
• Unit Calculated Volume: 0.005732
• Product Net Weight: 0.742
• Unit Calculated Weight: 1.17
